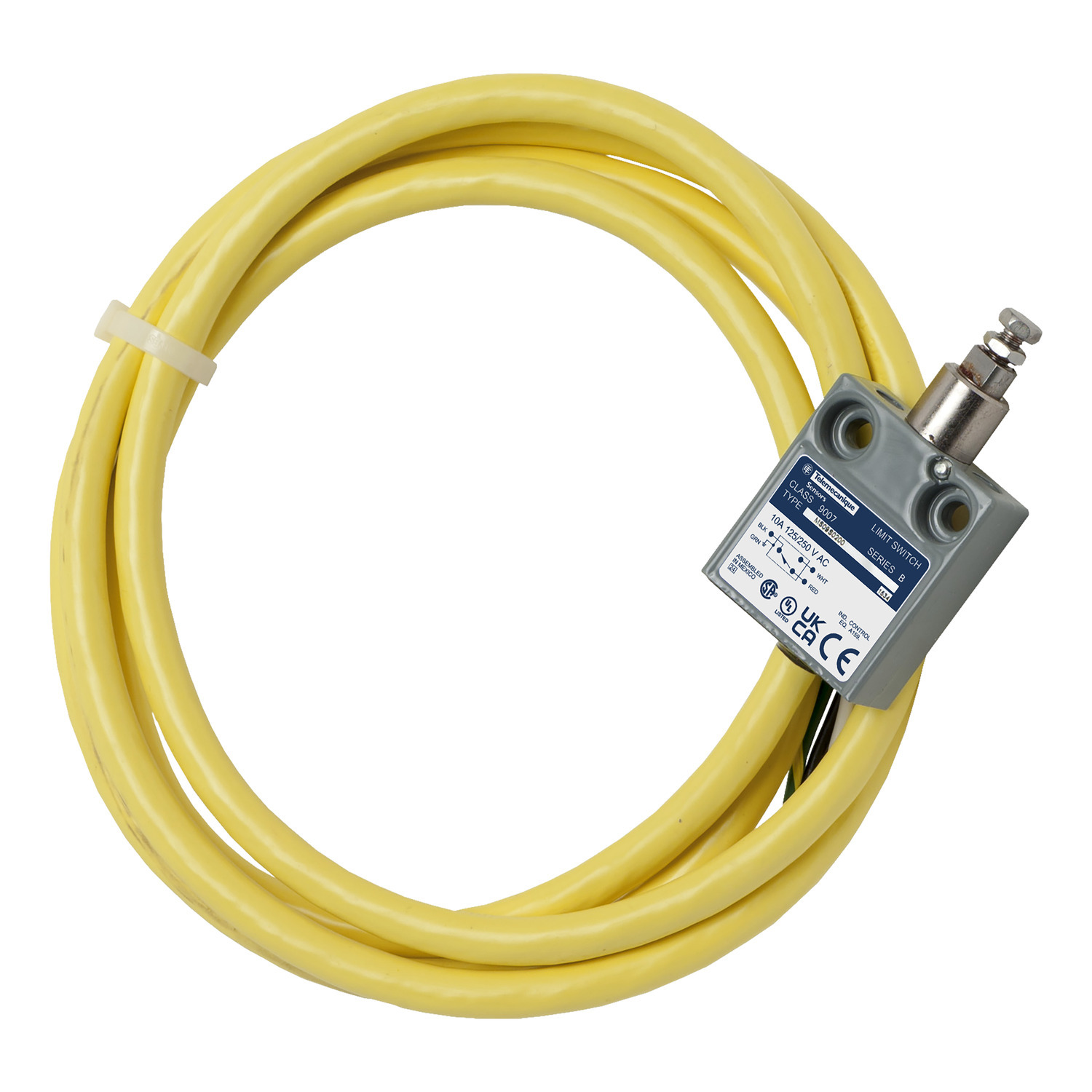

Limit switch, 9007, 240 VAC 10amp ms +options
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007MS09S0200
- UPC:
- 785901399018
- Item #:
- 121402
Limit switch, 9007, 240 VAC 10amp ms +options
- MFR #:
- 9007MS09S0200
- UPC:
- 785901399018
- Item #:
- 121402
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$180.03
each
LIMIT SWITCH 240VAC 10AMP MS +OPTIONS
Manuals and Documentation
| Catalog Number | 9007MS09S0200 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Morocco |
| Made in USA | No |
| Action | On end;Vertical approach, 1 direction;Snap action |
| Actuator | Spring return plunger stainless steel adjustable |
| Amperage Rating | 10 |
| Application | 9007MS/ML,MINIATURE POTTED,PLUNGER HEAD |
| Connection | Pre-wired cable bottom |
| Contact Configuration | NC-NO;Form C |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250 |
| Mounting | By The Body |
| Number of Poles | 1 |
| Operating Cycles | 100000 CYCLES |
| Special Features | FIXED,METAL |
| Standard | 10 GN 75-1200 HZ)IEC 60068-2-6,35 GN 9 MS IEC 60068-2-27,CE-CSA-UL,IP67 IEC 60529,LR 25490 CLASS 32 11 03-E78403 |
| UPC | 785901399018 |
| GTIN | 00785901399018 |
| Item Type | Limit switch |
| Size | 0.62 |
| Operating Temperature | -40-220 A Degrees F |
| Voltage Rating | 6 A 120 V AC, A300 NEMA RATING DESIGNATION-3 A 240 V AC, A300 NEMA RATING DESIGNATION-5 A 28 V DC |
