Appleton

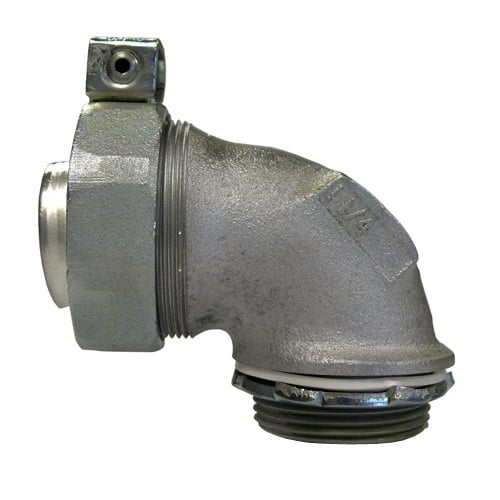

 Liquid Tight Oiltight Raintight Conduit Connector With Plain Throat, 2 in Trade, 8 to 1/0 AWG Cable Openings, 90 deg, Malleable Iron, Triple Coated

MFR:
Appleton Electric
MFR #:
ST-90200L
UPC:
781381403429
Item #:
120913

Availability

Location Available Qty
Available Available to Order
$244.47 each

ST Series 90 DEG Liquidtight Connector, Size: 2 IN, Connection: Threaded X Compression, Conductor Range: 8 - 1/0 AWG, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 0.69 IN, Standard: Cl

Manuals and Documentation
Catalog Number ST-90200L
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Liquidtight Flexible Metal Conduit
Conductor Range 8 - 1/0 AWG
Connection Threaded X Compression
Finish Chromate, Epoxy Powder Coat/Zinc Electroplated
Material Malleable Iron
Special Features Includes plain throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection; Suitable for outdoor use; Full, machined tapered threads (NPT)
Standard Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1
UPC 781381403429
GTIN 00781381403429
Item Type ST Series 90 DEG Liquidtight Connector
Size 2
