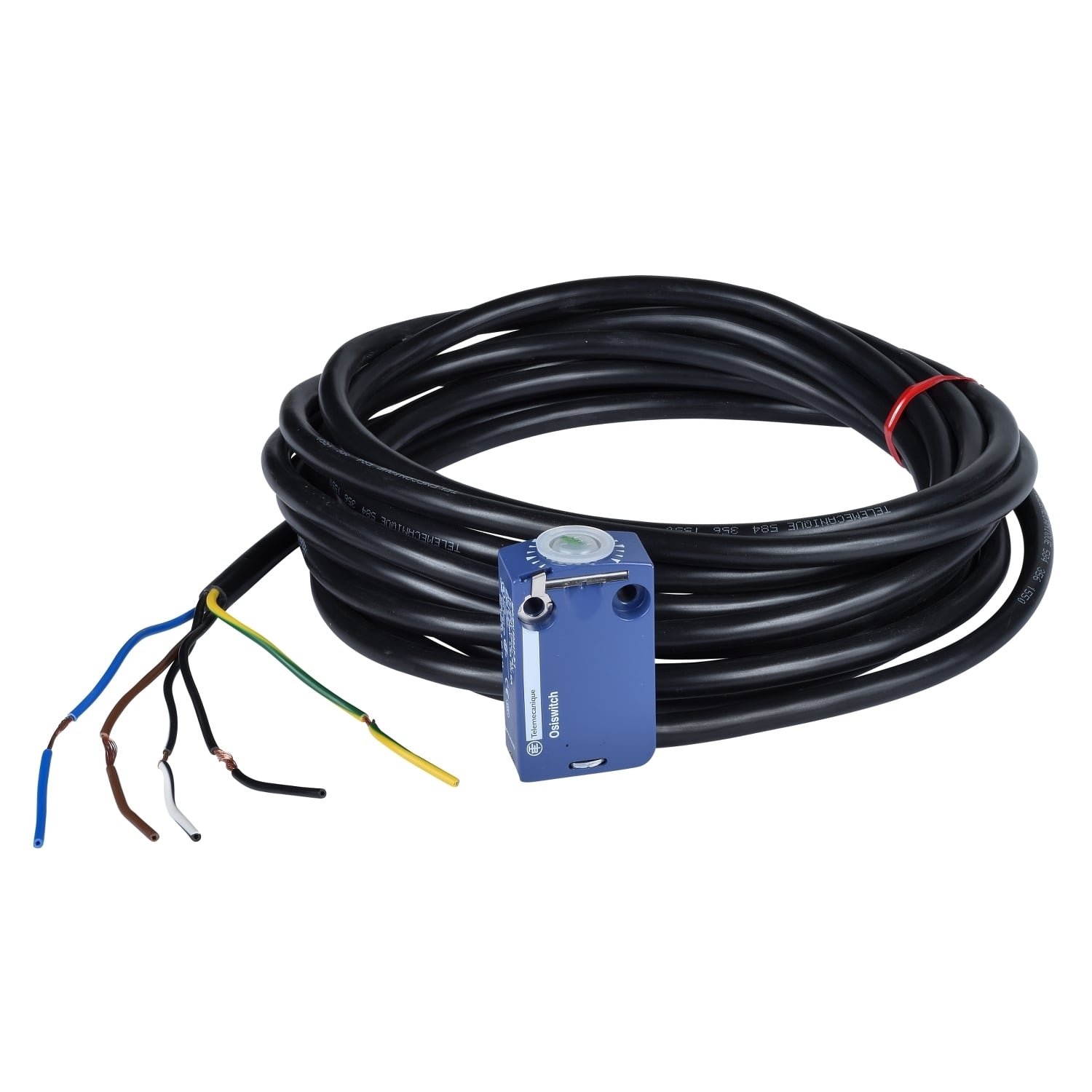

ZCMD29L2 OsiSense XC Fixed Limit Switch Body, 2NC Contact, For Use With XCMD, ZCMD and ZCMD Series Standard Format Compact Limit Switch, 5 A at 240 V AC Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- ZCMD29L2
- Item #:
- 1209013
ZCMD29L2 OsiSense XC Fixed Limit Switch Body, 2NC Contact, For Use With XCMD, ZCMD and ZCMD Series Standard Format Compact Limit Switch, 5 A at 240 V AC Contact
- MFR #:
- ZCMD29L2
- Item #:
- 1209013
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the XC Standard range, an offer of limit switches. This is a limit switch fixed body. It has 2 normally closed, snap action contacts with positive opening operation. It has 2 poles with silver plated contacts. It is furnished with removable cable for electrical connection and a 2m cable. The limit switch body is made of Zamak. Its dimensions are 30mm (Width) x 16mm (Depth) x 50mm (Height) and weighs 0.065kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCMD limit switches and ZCE heads. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
Manuals and Documentation
| Catalog Number | ZCMD29L2 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | Snap action |
| Application | XCMD |
| Connection | Removable cable |
| Contact Configuration | 2 NC |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880330&lang=en-us |
| GTIN | 03389110299328 |
| Item Type | Limit switch body |
| Size | 0.63 |
