Discontinued

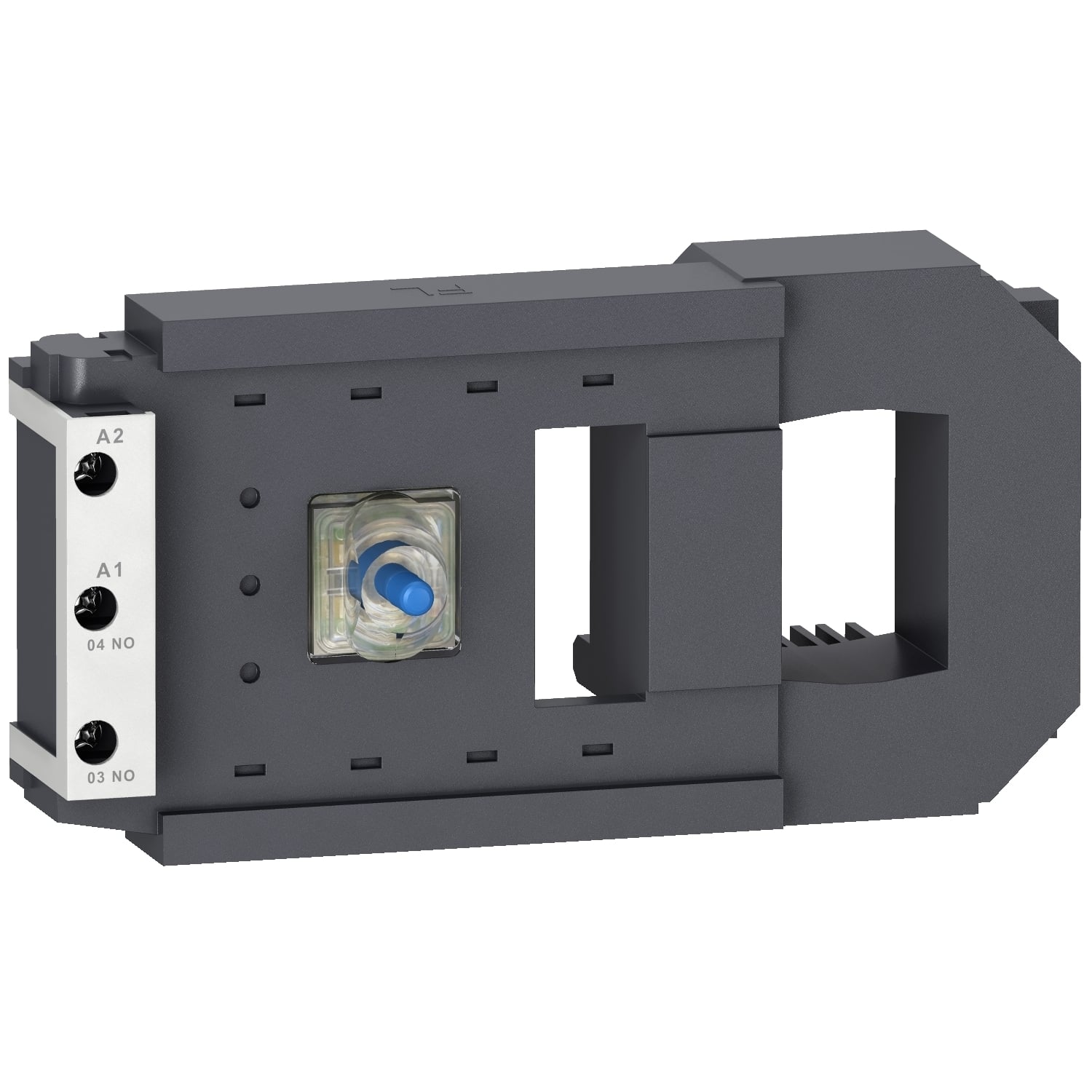

LX9FG220 Specific Contactor Coil, 220 to 230 VAC, 40 to 400 Hz, For Use With TeSys F LC1F185 and LC1F225 Contactor
- MFR:
- Schneider Electric
- MFR #:
- LX9FG220
- Item #:
- 1208154
Discontinued
LX9FG220 Specific Contactor Coil, 220 to 230 VAC, 40 to 400 Hz, For Use With TeSys F LC1F185 and LC1F225 Contactor
- MFR #:
- LX9FG220
- Item #:
- 1208154
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$151.11
each
TeSys F AC coil 220/230V 40-400Hz (voltage code M7/P7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F185, FG185, F225. It operates in voltage limits 0.85-1.1 Uc and environments until 55C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Manuals and Documentation
| Catalog Number | LX9FG220 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | TeSys TeSys F LC1F contactor;LC1F225;LC1F185 |
| Coil Voltage | 220...230 V AC 40...400 Hz |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=642296&lang=en-us |
| GTIN | 03389110084016 |
| Item Type | Specific contactor coil |
