SCHNEIDER ELECTRIC

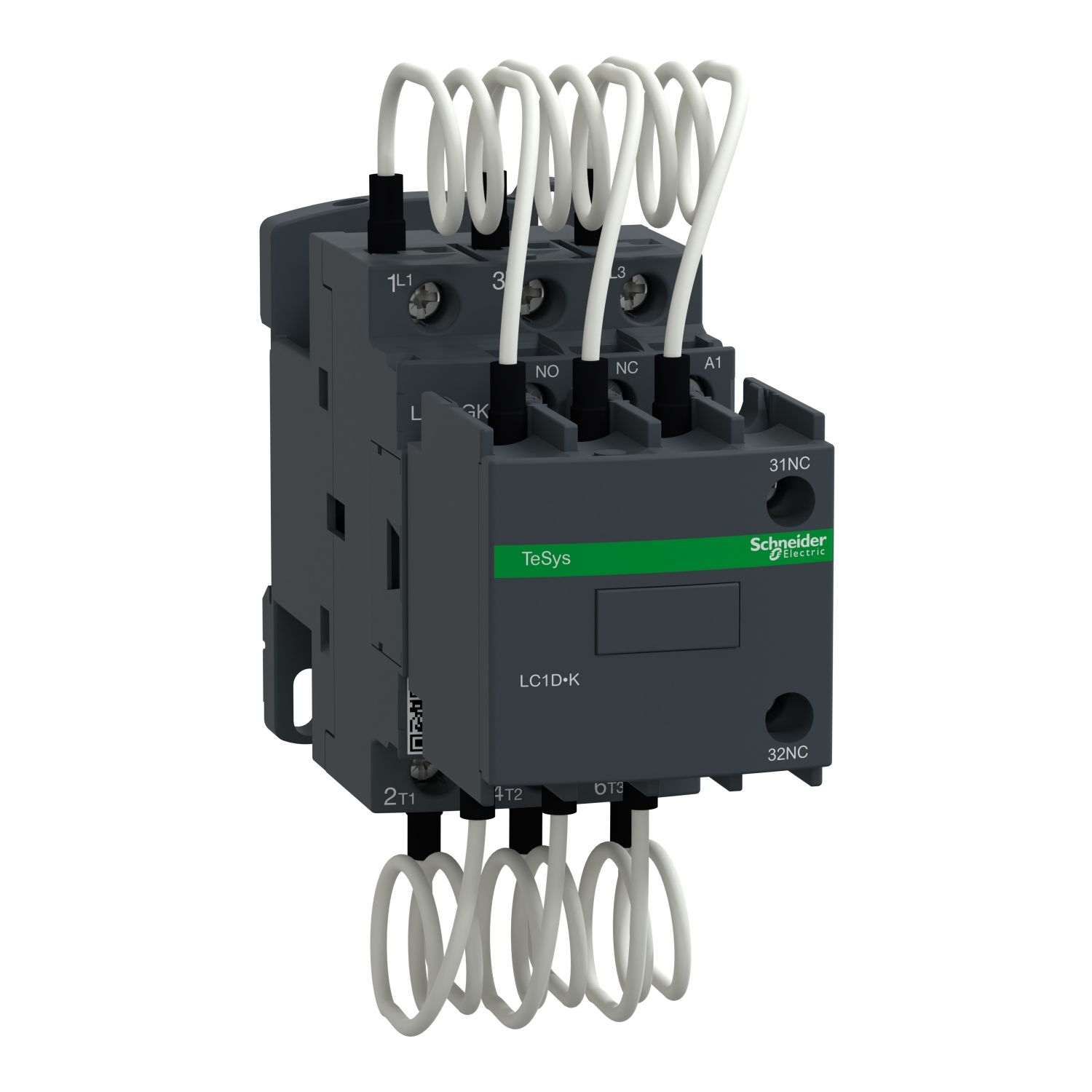

LC1DGKM7 TeSys D Capacitor Contactor, 220 V AC V Coil, 1NO-2NC/3NO Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
LC1DGKM7
Item #:
1207591

Availability

Location Available Qty
Available Available to Order
$902.86 each

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 16.7kVAR@400V 50Hz (28.5kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831.

Manuals and Documentation
Catalog Number LC1DGKM7
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Power factor correction;Control
Coil Voltage 220 V AC 50/60 Hz
Connection Control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 2.5-16 mm² - cable stiffness: solid;power circuit: screw clamp terminals 2 2.5-6 mm² - cable stiffness: solid;power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: fle
Contact Configuration 3 NO;1 NO + 2 NC instantaneous;Mechanically linked 1 NO + 2 NC IEC 60947-5-1
Mounting Din Rail
Standard IECEE CB Scheme;UKCA;EN/IEC 60947-1;EN/IEC 60947-4-1;IEC 60335-1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268069026&lang=en-us
GTIN 03606480401800
Item Type Capacitor duty contactor
