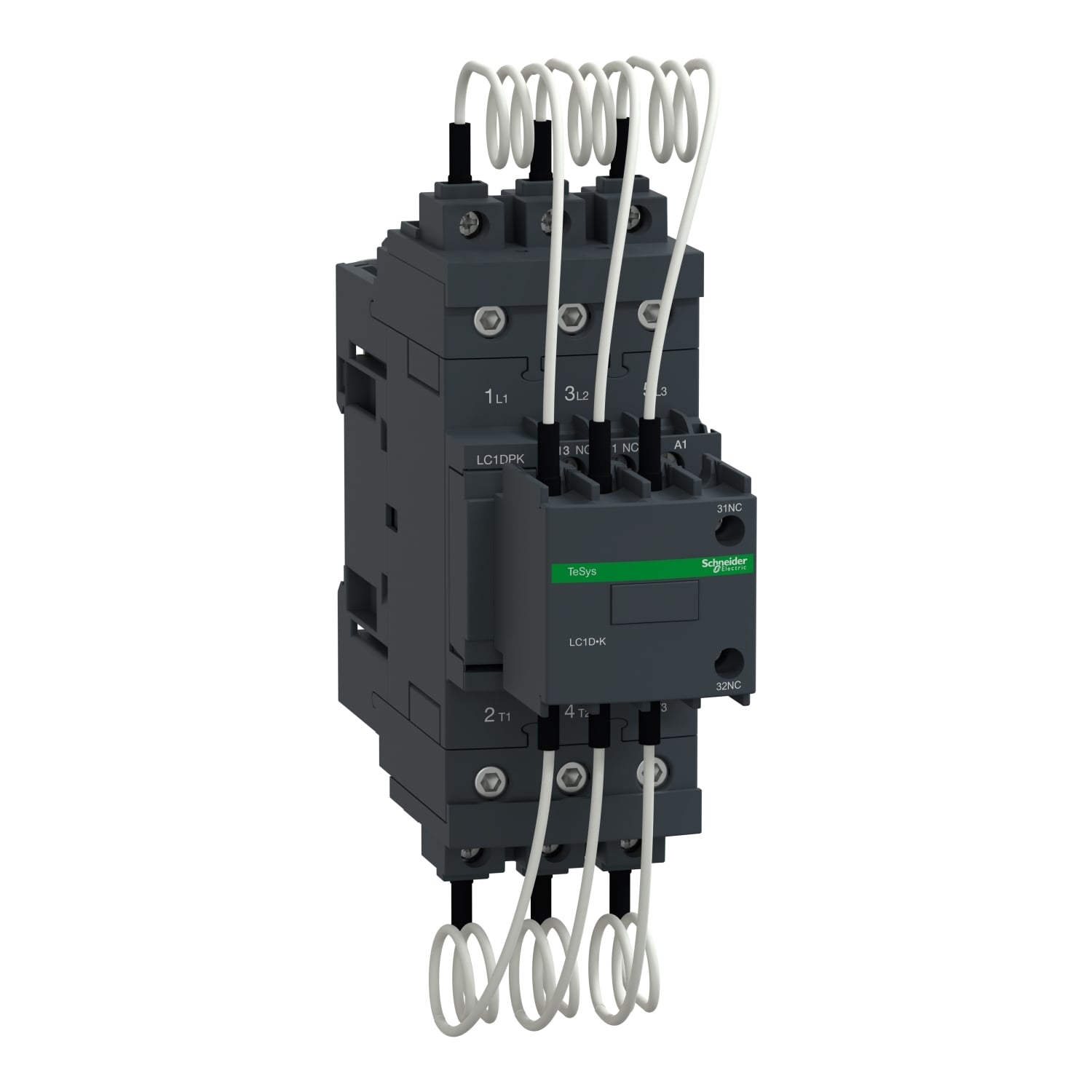

LC1DPKM7 TeSys D Capacitor Contactor, 220 V AC V Coil, 1NO-2NC/3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1DPKM7
- Item #:
- 1207590
LC1DPKM7 TeSys D Capacitor Contactor, 220 V AC V Coil, 1NO-2NC/3NO Contact, 3 Poles
- MFR #:
- LC1DPKM7
- Item #:
- 1207590
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,260.94
each
TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 30kVAR@400V 50Hz (50kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831.
Manuals and Documentation
| Catalog Number | LC1DPKM7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Power factor correction;Control |
| Coil Voltage | 220 V AC 50/60 Hz |
| Connection | Control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with or without cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with or without cable end |
| Contact Configuration | 3 NO;1 NO + 2 NC instantaneous;Mechanically linked 1 NO + 2 NC IEC 60947-5-1 |
| Mounting | Din Rail |
| Standard | IECEE CB Scheme;UL;CSA;UKCA;EN/IEC 60947-1;EN/IEC 60947-4-1;UL 60947-4-1;CSA C22.2 No 60947-4-1;IEC 60335-1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268069058&lang=en-us |
| GTIN | 03606480401268 |
| Item Type | Capacitor duty contactor |
