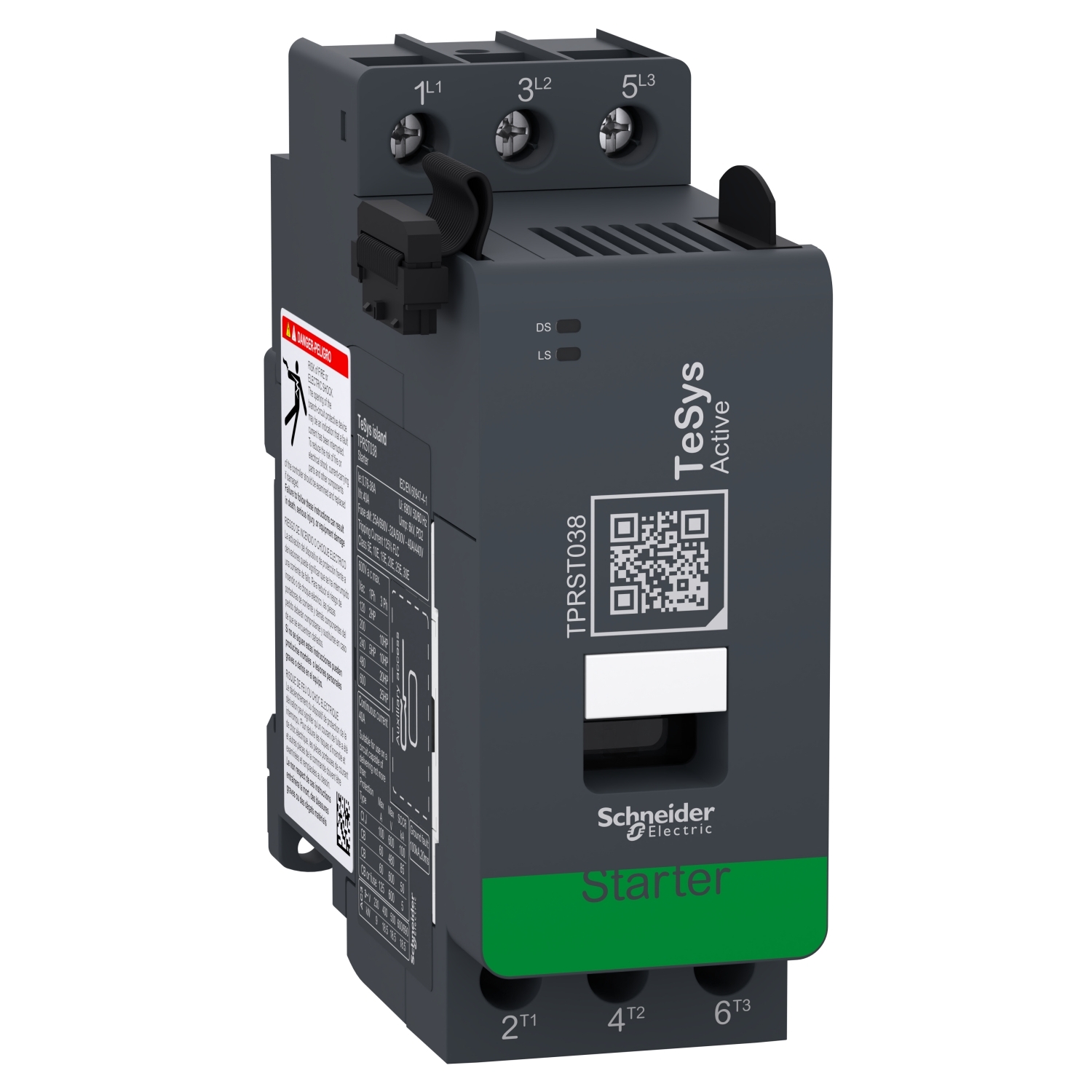

TPRST038 TESYS Series, 24 VDC v coil, IP20 enclosure
- MFR:
- Schneider Electric
- MFR #:
- TPRST038
- Item #:
- 1207247
TPRST038 TESYS Series, 24 VDC v coil, IP20 enclosure
- MFR #:
- TPRST038
- Item #:
- 1207247
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$620.50
each
TeSys island direct starter, 3 poles, 38A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 38A and motors up to 18,5kW@400V / 20hp@480V. It provides motor protection functions including thermal overload (setting 0.76-38A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Manuals and Documentation
| Catalog Number | TPRST038 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=471609907&lang=en-us |
| GTIN | 03606489832766 |
