Mersen

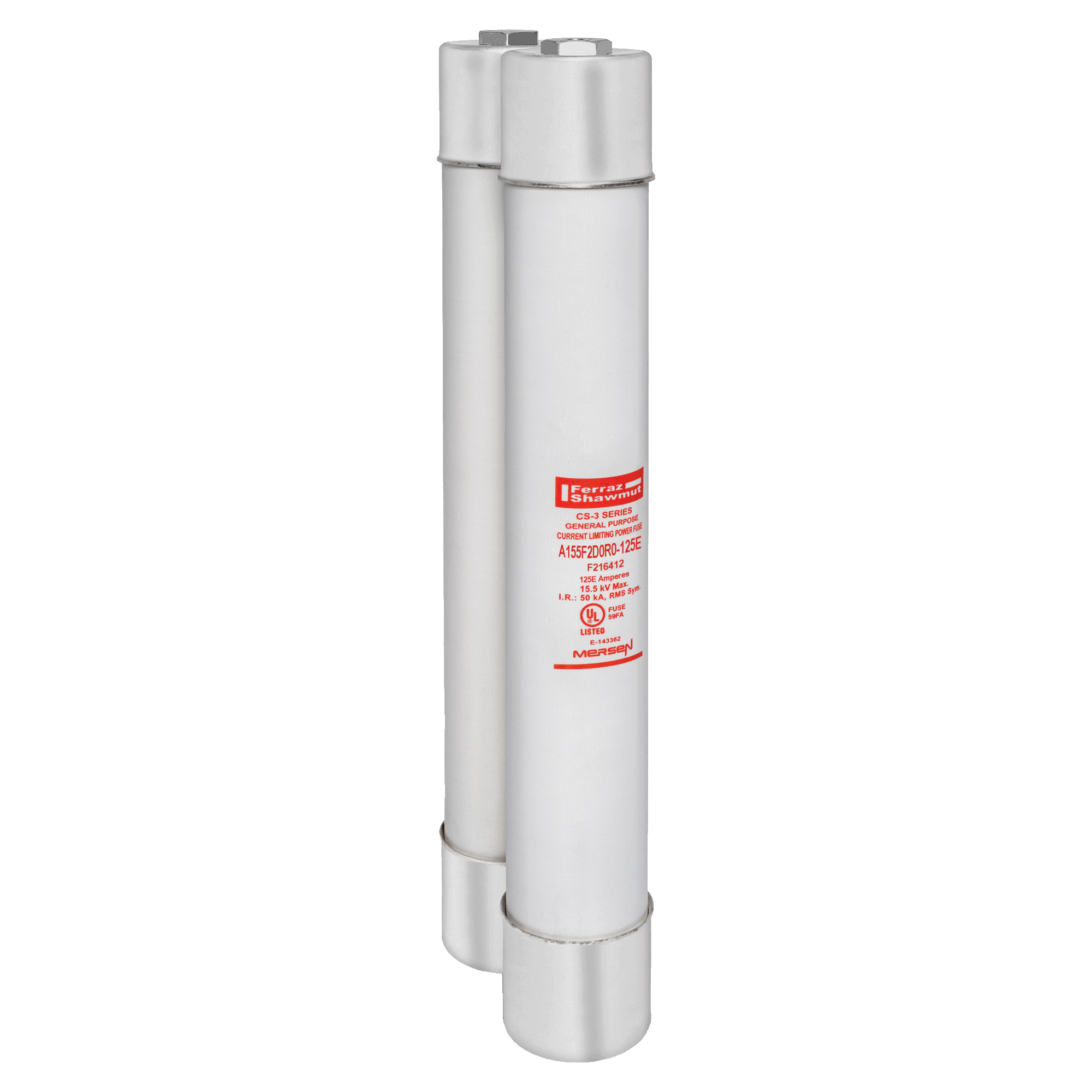

MV E-Rated Fuse 15500VAC 125A Series: D0R0 Visual Indicator

MFR:
Mersen
MFR #:
A155F2D0R0-125E
UPC:
782001804695
Item #:
12059

Availability

Location Available Qty
Available Available to Order

Medium Voltage E-Rated Fuse 15500VAC 125A Ferrule, Series: D0R0 Visual Indicator Amp-Trap

Manuals and Documentation
Catalog Number A155F2D0R0-125E
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Amperage Rating 125
Application Protection for 12 kV to 15.5 kV transformers or distribution systems.
Connection Ferrule
Interrupt Rating 50 KA
Mounting Clip
Special Features Amp-Trap CS-3 and 9F62 series are UL listed for compatibility with UL listed equipment Ferrule mounting for standard clips and interchangeability with other brands of fuses Current-limiting for superior equipment protection Non-venting for silent operation Metal embossed catalog number and manufacturing date for lasting identification Outdoor usage for the 9F62 and 9F60 type EJO Blown-fuse indicator to give positive identification of open fuse: Amp-Trap: 2" Barrel 1 lb tripped force - 0.19 Inch Amp-Trap: 3" Barrel 2 lb tripped force - 0.50 Inch 9F60/9F62: 0.125 lb tripped force – 0.20 Inch
Standard Some UL listed to standard File E143362
UPC 782001804695
GTIN 00782001804695
Item Type General Purpose Ferrule Mount Fuses for Transformer Protection
Size 21.75 x 3 x 6.63
Type of Indicators Visual Indicator
Voltage Rating 15500
