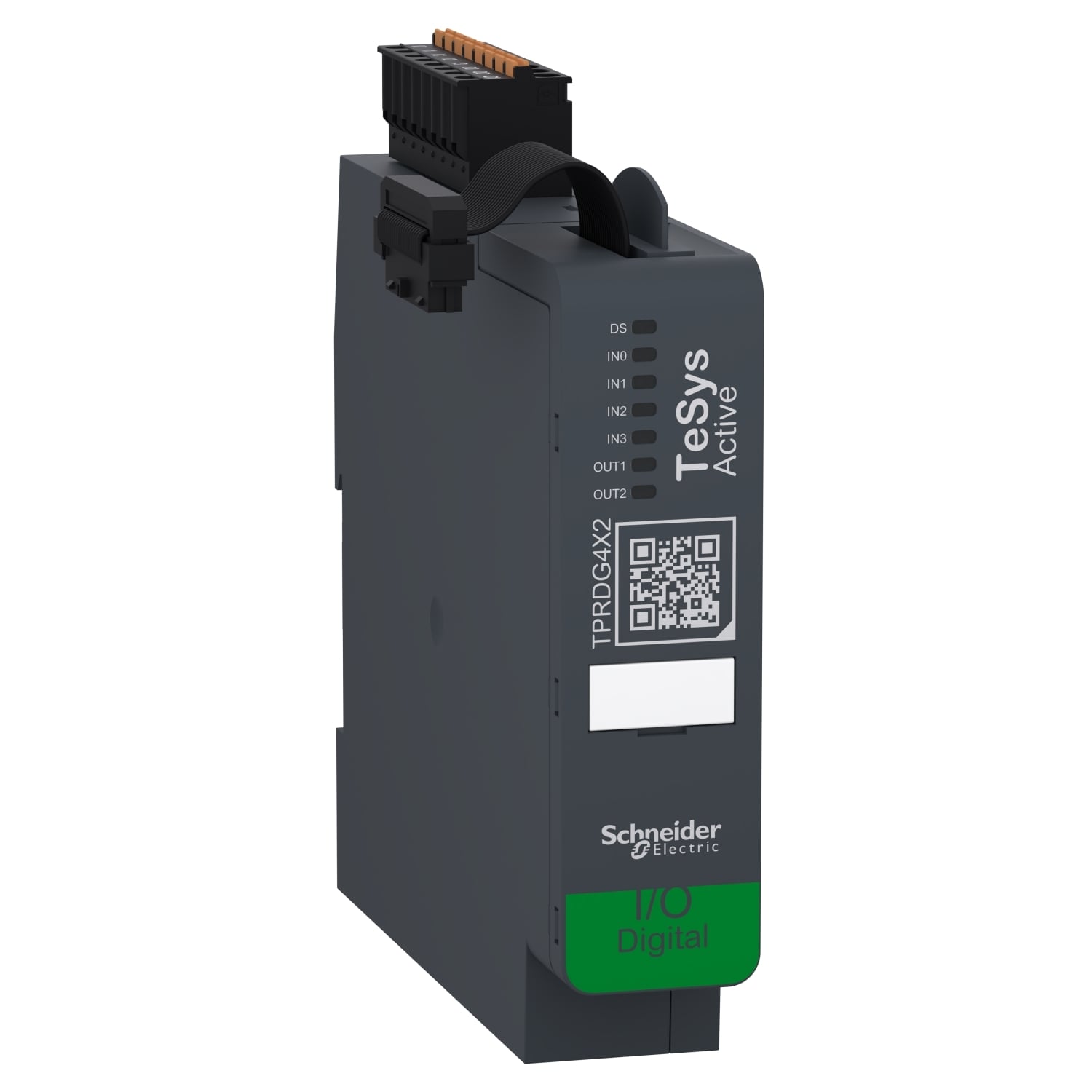

TPRDG4X2 TPRDG Digital IO Network/Fieldbus module, 4 Inputs, 2 Outputs
- MFR #:
- TPRDG4X2
- Item #:
- 1204570
TPRDG4X2 TPRDG Digital IO Network/Fieldbus module, 4 Inputs, 2 Outputs
- MFR #:
- TPRDG4X2
- Item #:
- 1204570
Product Details
TeSys island digital IO module, 4 digital inputs 24V DC, 2 digital outputs 24V DC. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). It can be used to control external power switching devices when associated to a TPRPM power module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Manuals and Documentation
Features
- Manages motors and other electrical loads up to 65 A (AC-3) / 37 k with 40 hp
- All adjustments and setting are digitized, no mechanical dials or dip switches
- Embedded Cybersecurity (Achilles Level 2)
Specifications
Identifiers
| Manufacturer Part Number |
TPRDG4X2
|
|---|---|
| GTIN |
03606489832896
|
| EAN |
3606489832896
|
|---|
General Information
| Manufacturer |
Schneider Electric
|
|---|---|
| Brand |
Schneider Electric
|
| Country Of Origin |
US
|
| Warranty |
18 Months
|
|---|---|
| Standards Approvals |
IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | UL | EAC (pending) | CSA
|
| Application |
TPRBC bus coupler, TPRPM power module
|
Dimensions
| Dimensions |
118 mm H x 25 mm W x 114 mm L
|
|---|
Technical Information
| Amperage Rating |
7 mA
|
|---|---|
| Number Of Inputs |
4
|
| Number Of Outputs |
2
|
| Series |
TPRDG
|
| Temperature Rating |
-25 to 70 deg C
|
|---|---|
| Type |
Digital IO
|
| Voltage Rating |
24 V DC
|
