SQUARE D

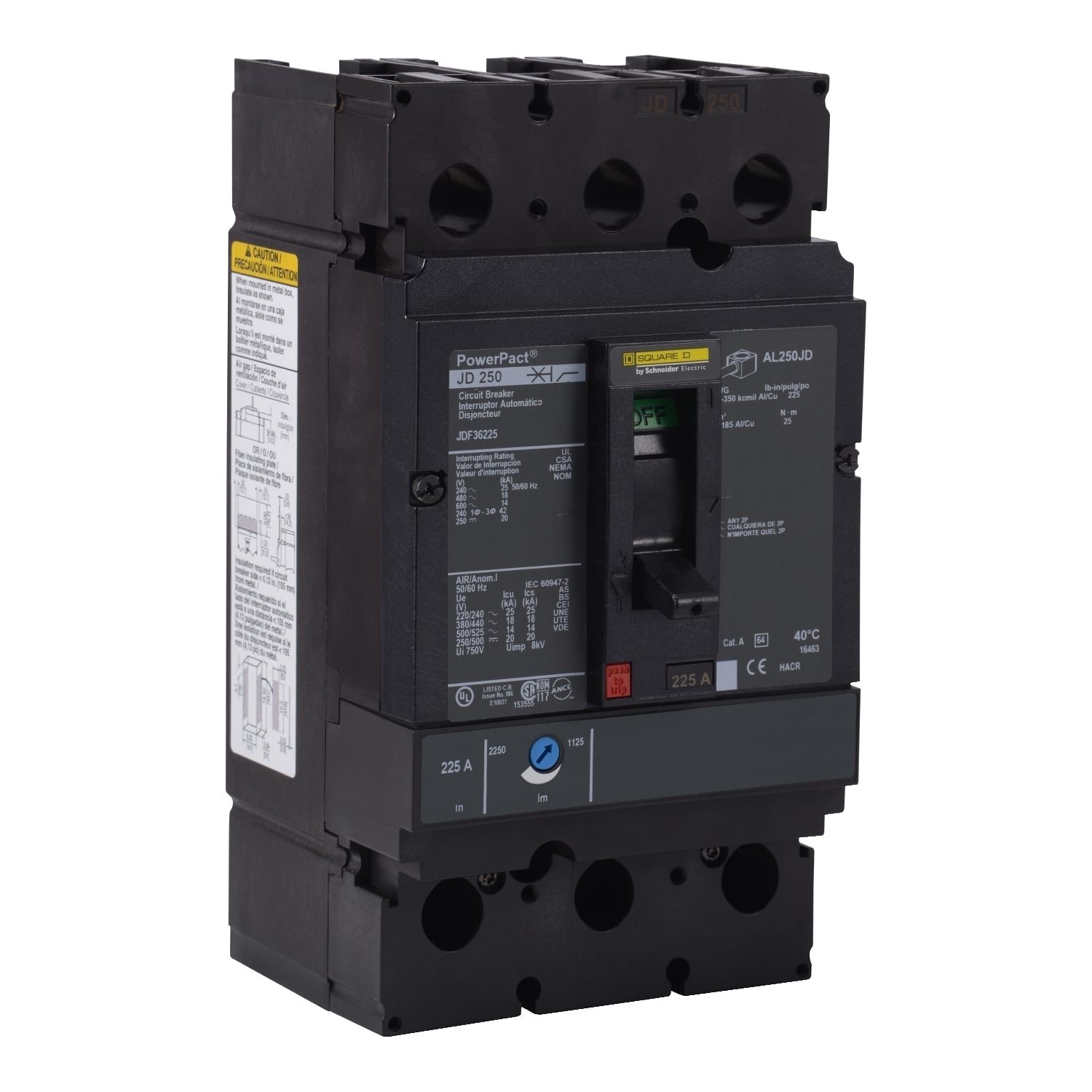

JDF36225 Molded Case Circuit Breaker, 600 V AC, 225 A, 25 kA at 240 V AC/18 kA at 480 V AC/14 kA at 600 V AC/20 kA at 250 VDC Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
JDF36225
UPC:
785901995203
Item #:
120453

Availability

Location Available Qty
Available 3 ea
$2,957.50 each

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT J, 225A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number JDF36225
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application Distribution
Connection Busbar connection, line;busbar connection, load; AWG 3/0...350 kcmil aluminium/copper terminals
Control Toggle
Number of Poles 3
Special Features Modbus;Ethernet
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425033&lang=en-us
UPC 785901995203
GTIN 00785901995203
Item Type Circuit breaker
Trip Type Thermal-magnetic
