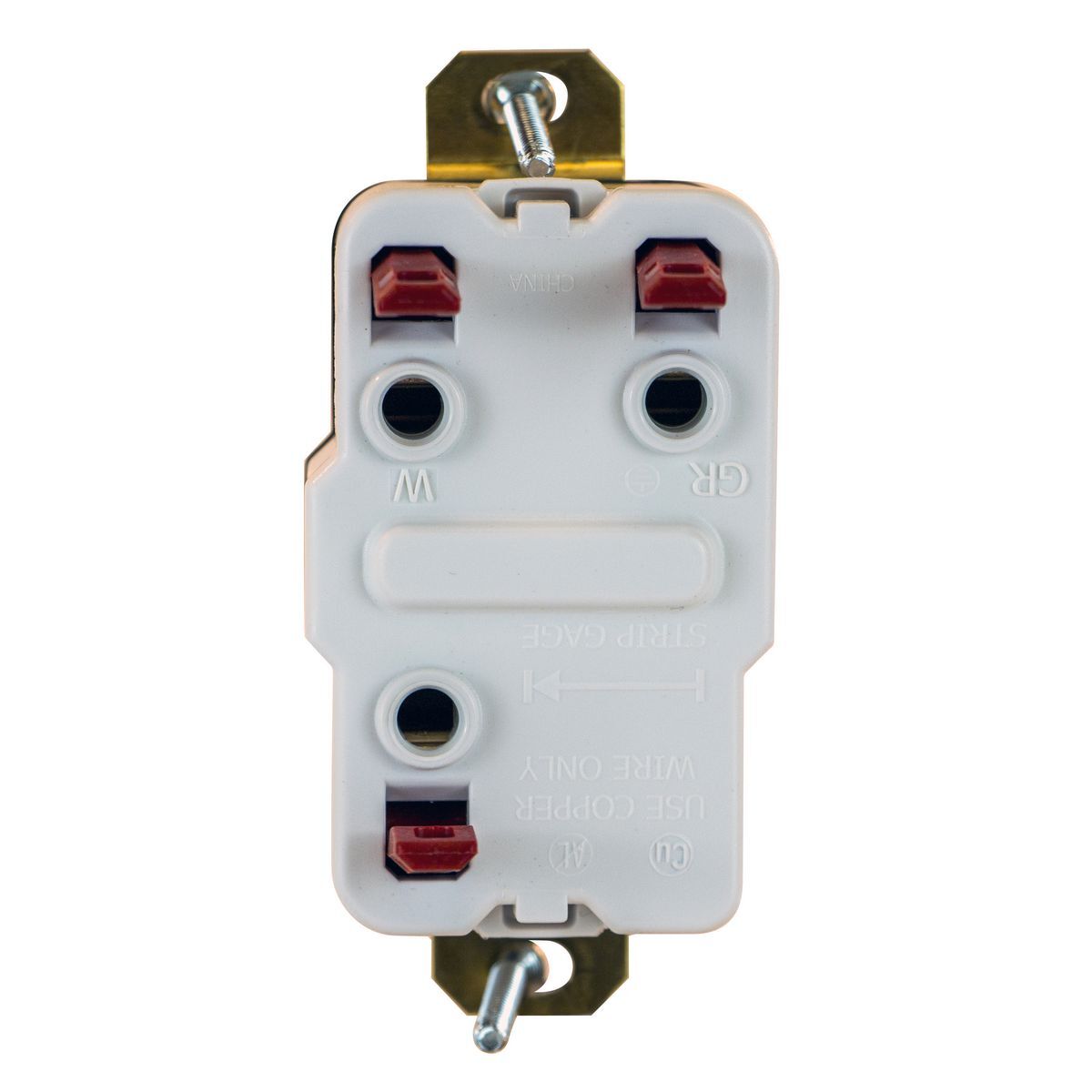

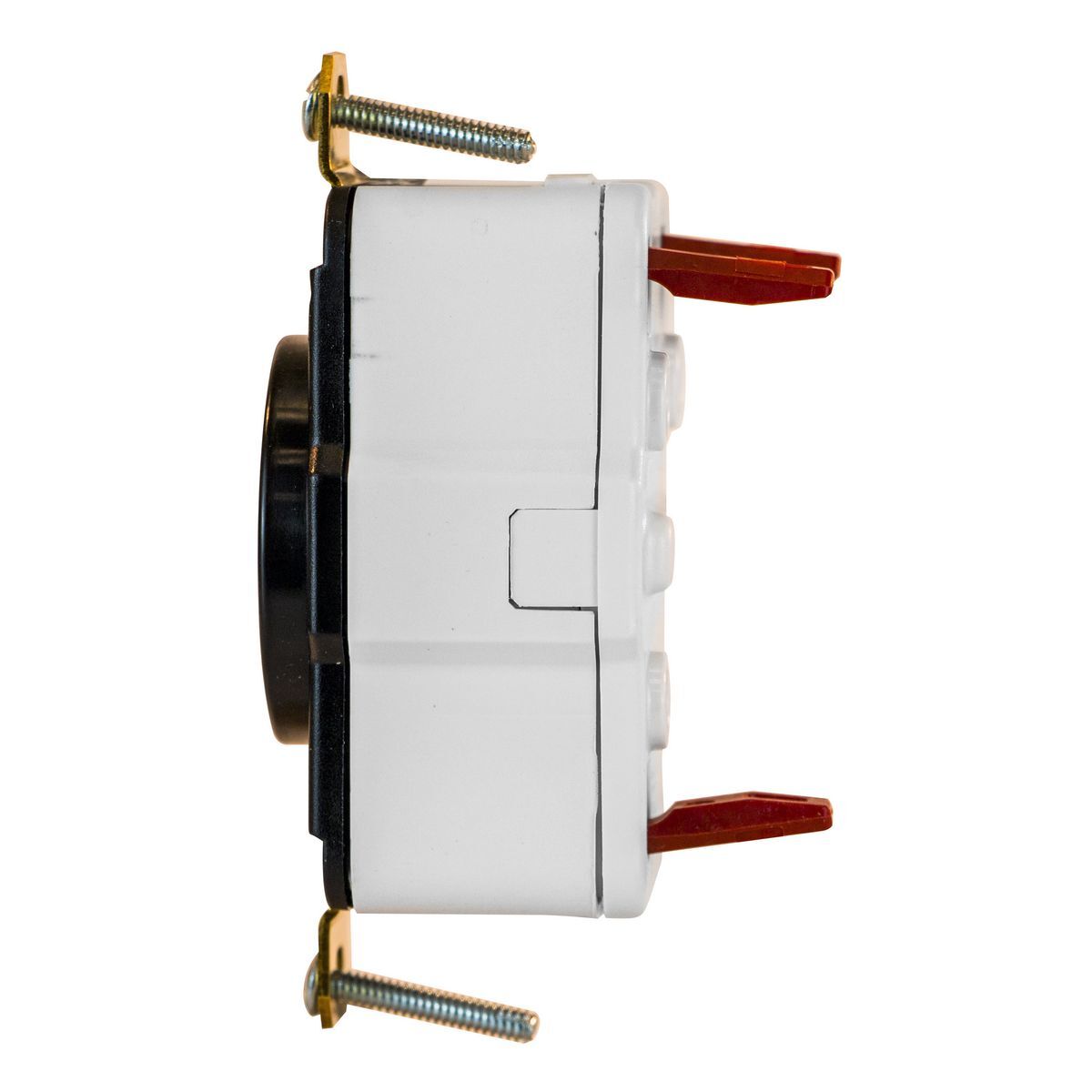

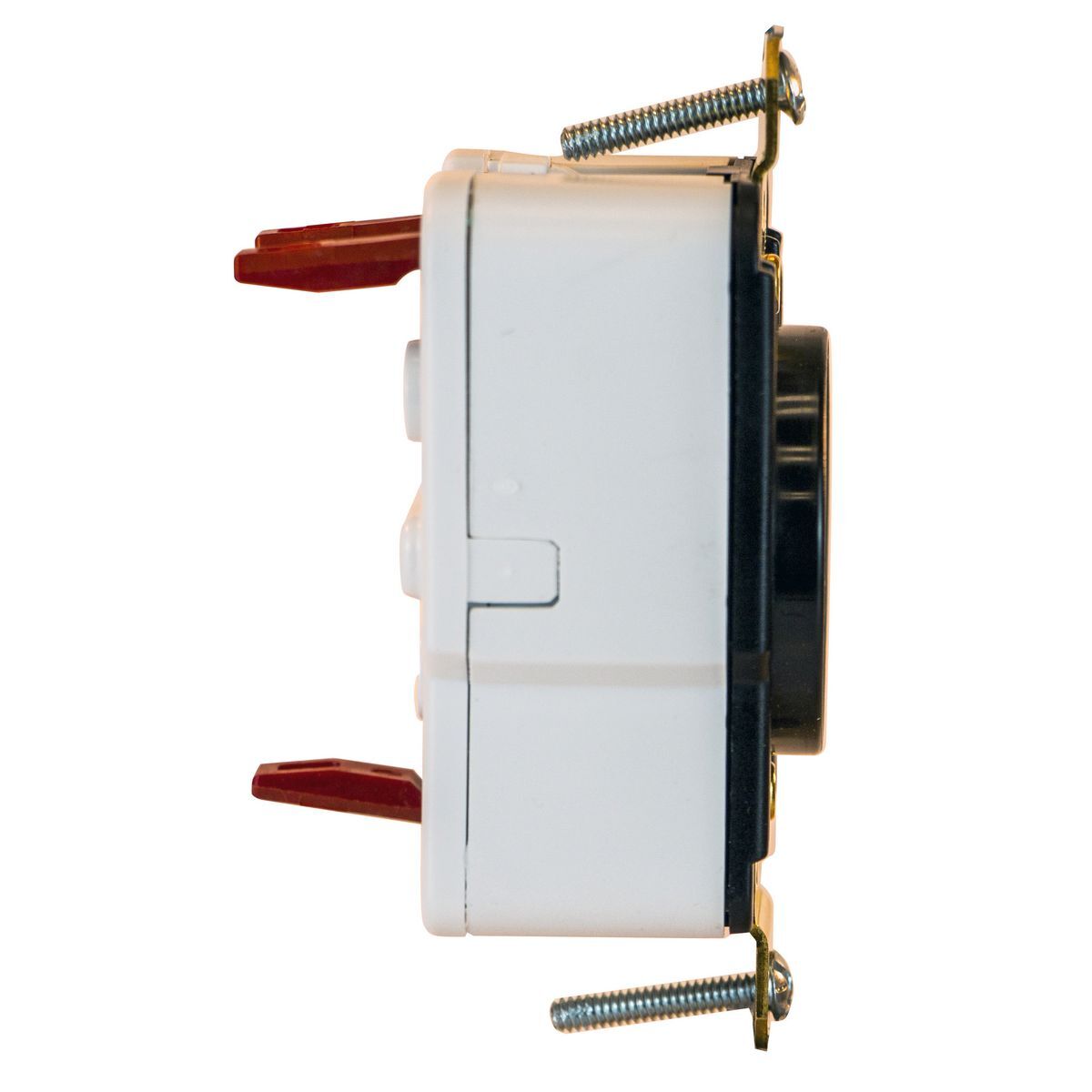

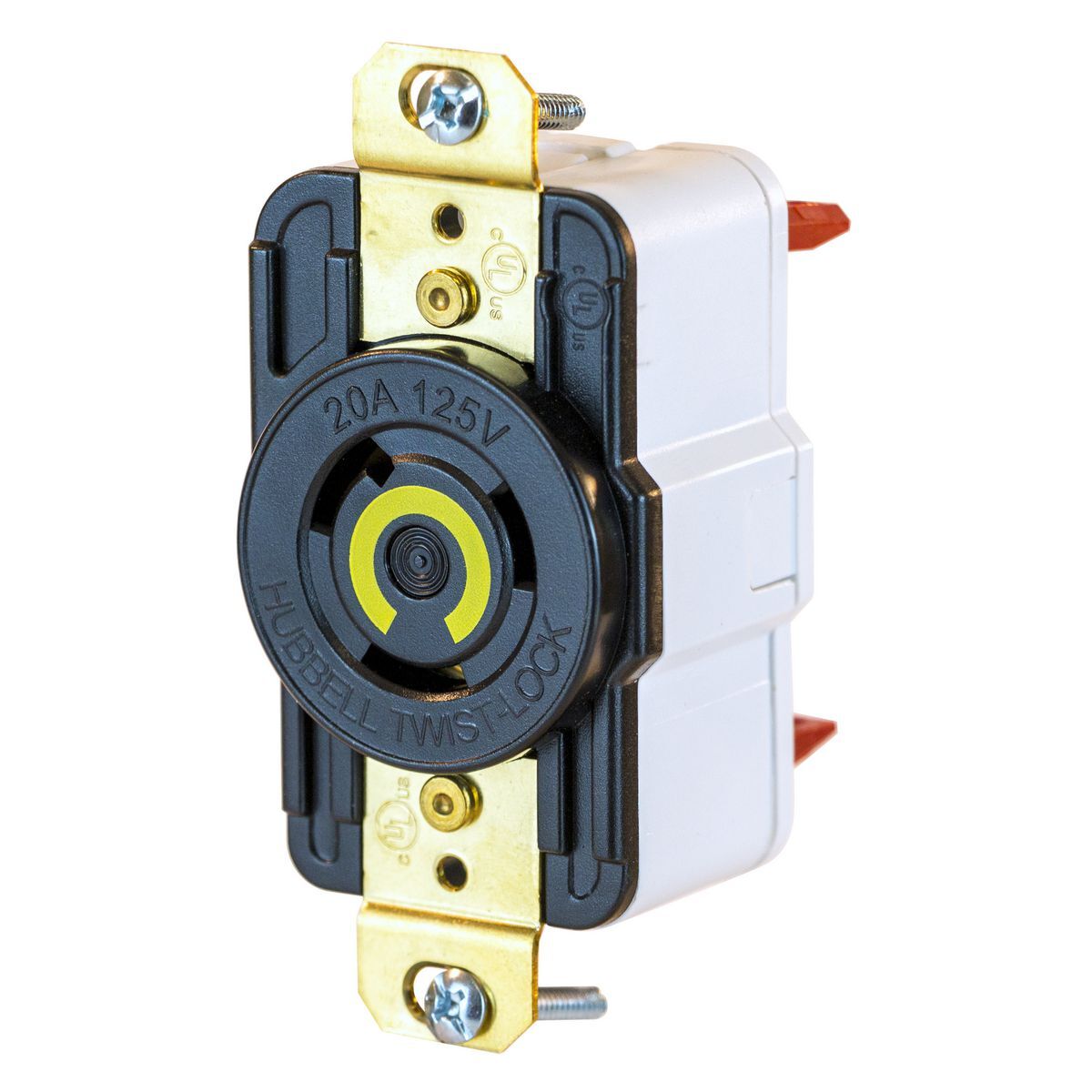

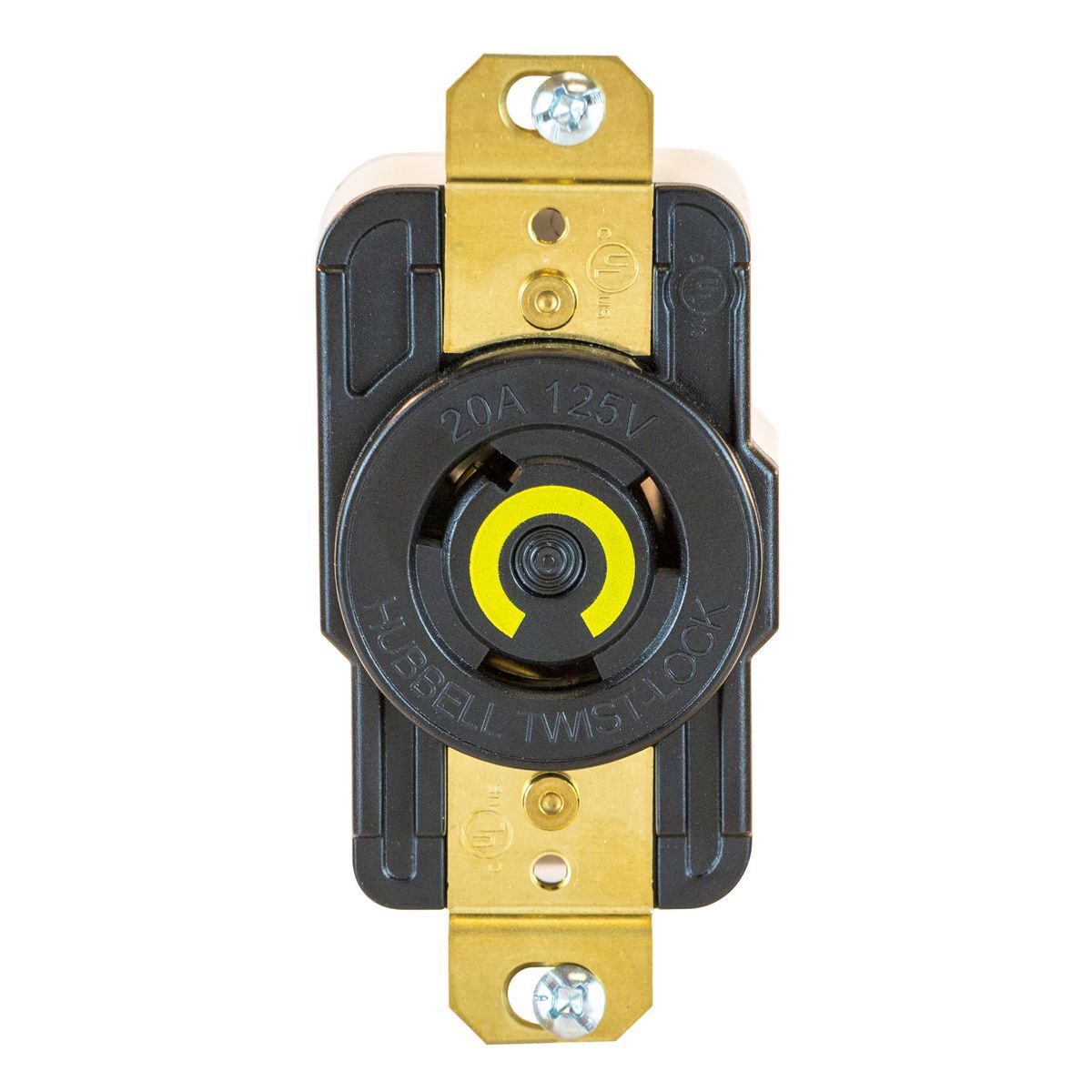

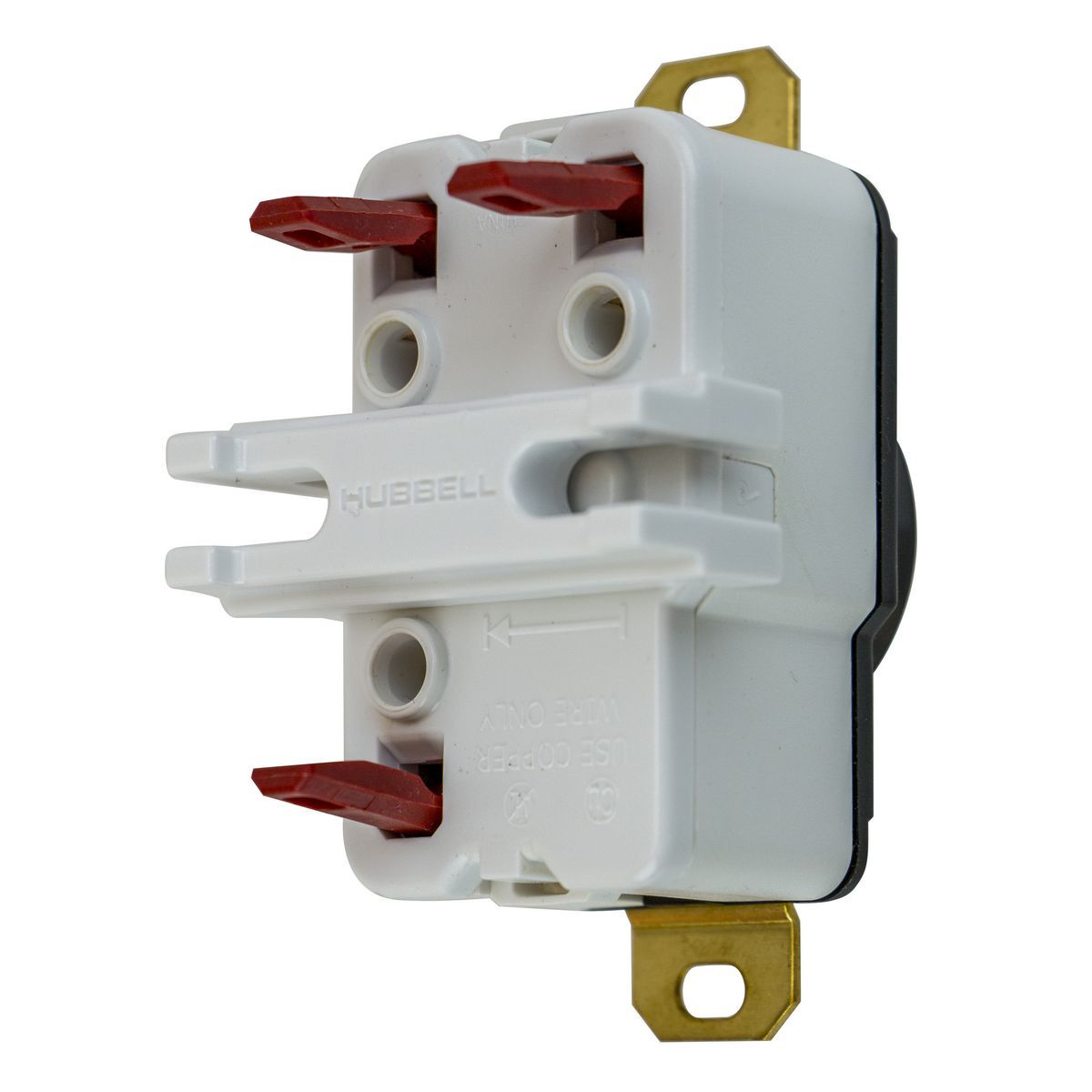

Twist-Lock Edge Receptacle with Spring Termination, 20A, 125V, L5-20R, Black
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2310ST
- UPC:
- 783585569543
- Item #:
- 1202529
Twist-Lock Edge Receptacle with Spring Termination, 20A, 125V, L5-20R, Black
- MFR #:
- HBL2310ST
- UPC:
- 783585569543
- Item #:
- 1202529
Availability
| Location | Available Qty |
|---|---|
| Available | 66 ea |
$41.95
each
Manuals and Documentation
| Catalog Number | HBL2310ST |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Application | Heavy Duty Industrial |
| Color | Black |

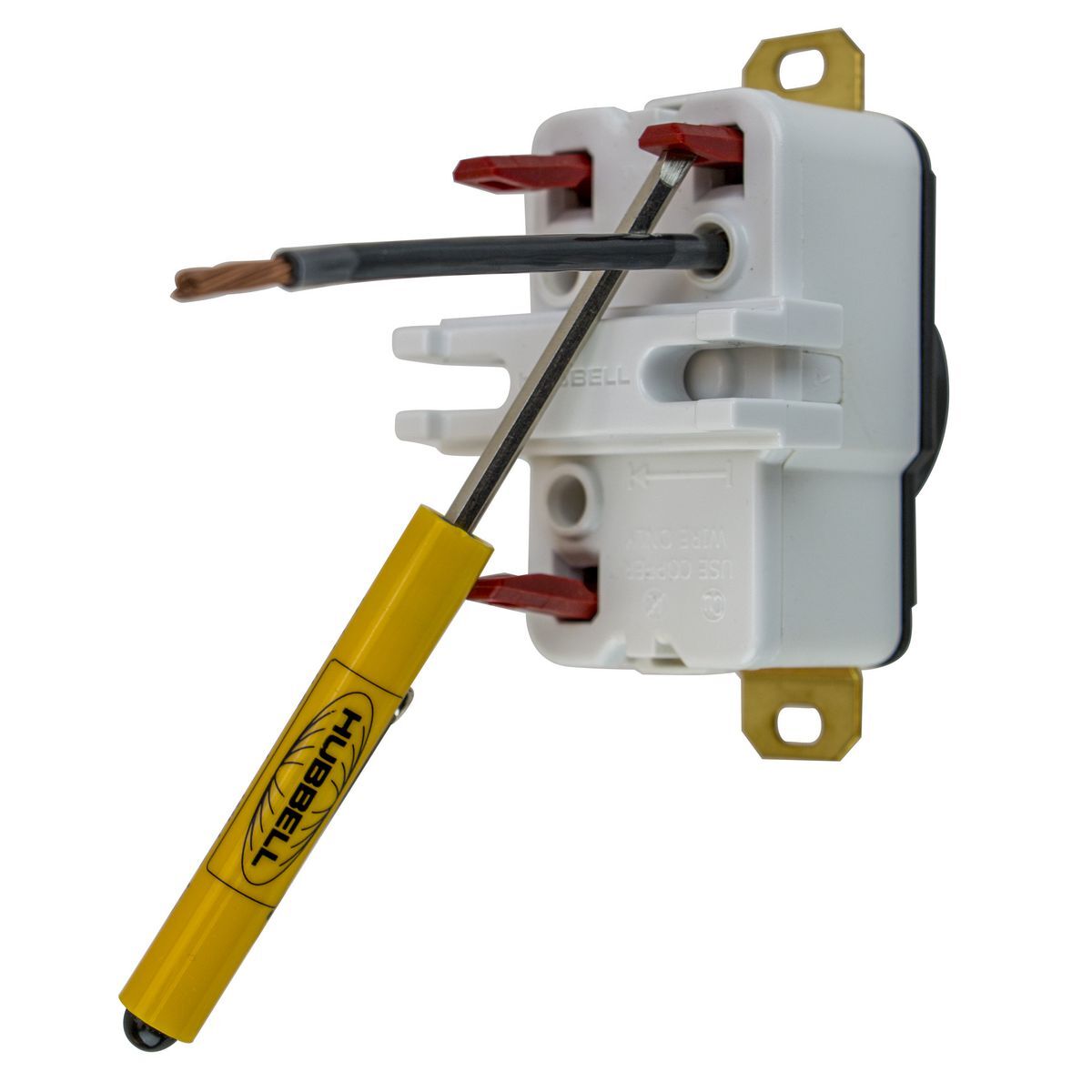

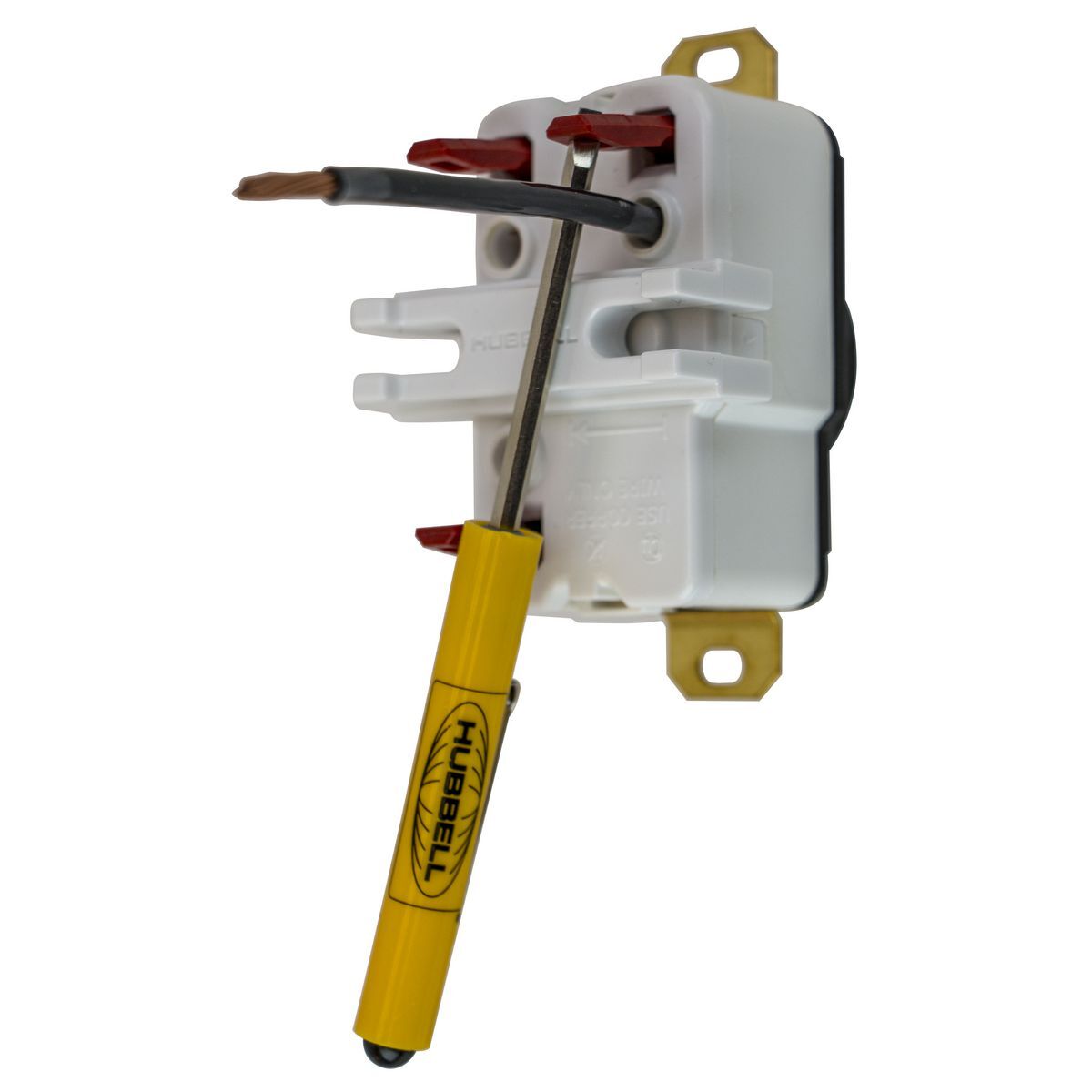

| Connection | Spring Termination |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | 1 |
| Special Features | Twist-Lock Receptacle with Spring Termination |
| Standard | UL Listed To UL 498;CSA Certified to Specification C22.2 No. 42 |
| UPC | 783585569543 |
| GTIN | 00783585569543 |
| Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Temperature Rating | Maximum Continuous 75 Degrees C; Minimum -40 Degrees C (w/o impact) |
| Voltage Rating | 125 |
| Wattage | 2,500 W |
| Wire Size | 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded) |
