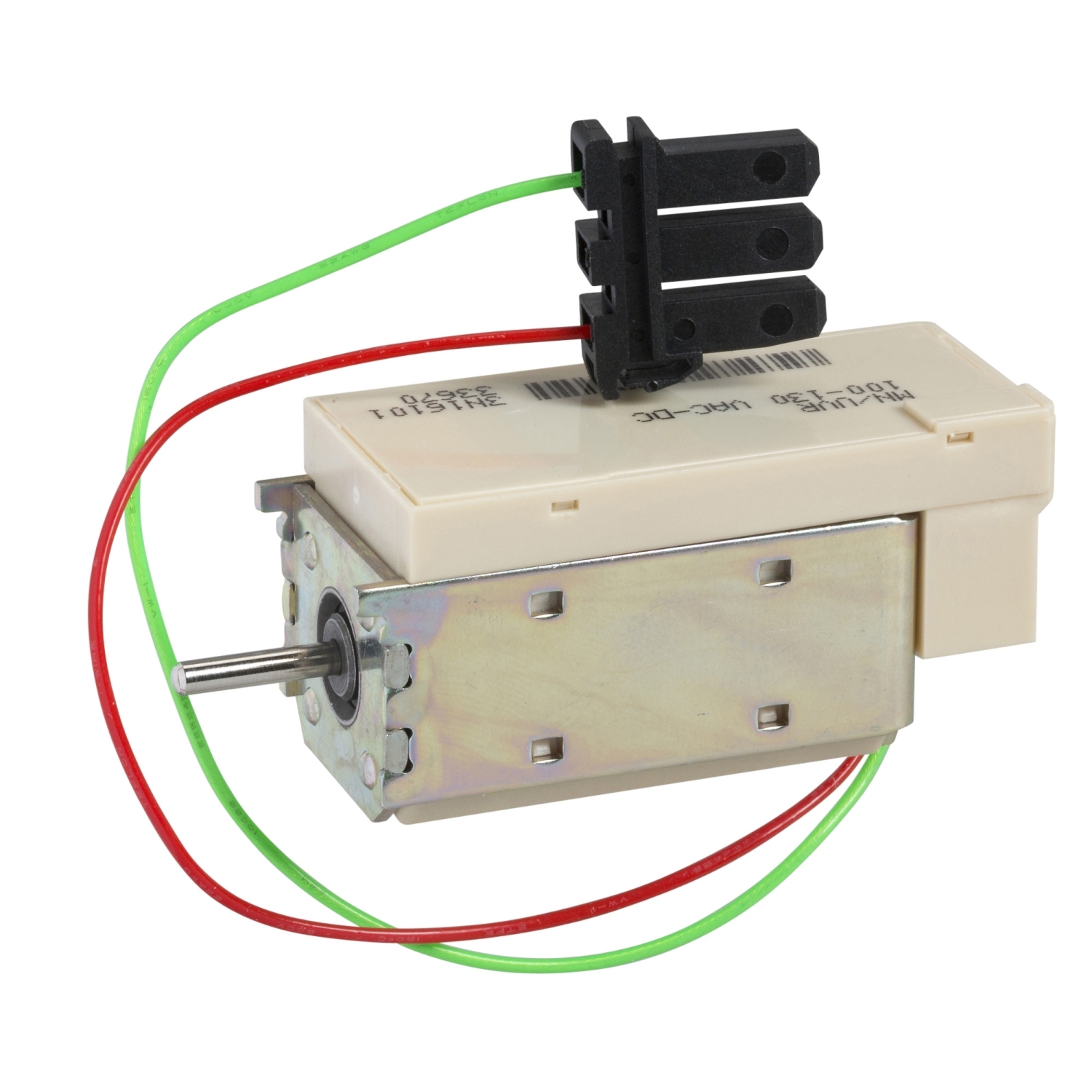

33659 Voltage Release Breaker Shunt Trip, 24 V AC/24 to 30 V DC
- MFR:
- Schneider Electric
- MFR #:
- 33659
- Item #:
- 1199869
33659 Voltage Release Breaker Shunt Trip, 24 V AC/24 to 30 V DC
- MFR #:
- 33659
- Item #:
- 1199869
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$817.92
each
This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage is 24VDC to 30VDC or 24VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary.
Manuals and Documentation
| Catalog Number | 33659 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | China |
| Made in USA | No |
| Application | Control |
| Mounting | Fixed |
| Response Time | 50 ms +/- 10 % Compact NS630b...1600;50 ms +/- 10 % Compact NS1600b...3200;55 ms +/- 10 % MasterPact NT;70 ms +/- 10 % MasterPact NW |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=841396&lang=en-us |
| GTIN | 03303430336594 |
| Item Type | Voltage release |
