Appleton

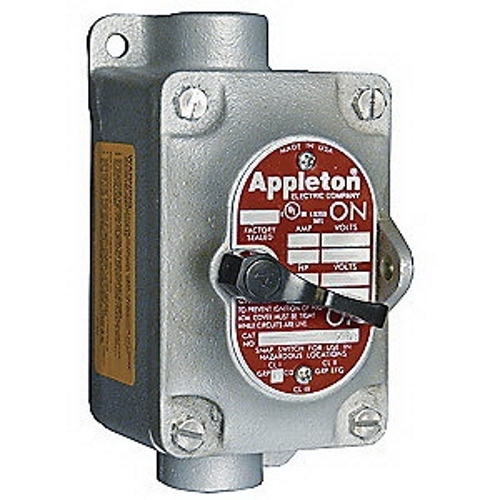

Explosion-Proof Tumbler 3-Way Switch, 1-Gang, 20A, 120/277V, 3/4" Hub

MFR:
Appleton Electric
MFR #:
EDSC2130
UPC:
781381697323
Item #:
119682

Availability

Location Available Qty
Available Available to Order
$661.59 each

Contender EDSC Series 1-Gang 3-Way Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Actuator: Front Operated, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Feed-Thru Hub, HP Rating: 1 HP At 120

Manuals and Documentation
Catalog Number EDSC2130
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
Enclosure NEMA 3, 7CD, 9EFG
Mounting Surface
Special Features Corrosion resistant, pad lockable in the on or off position; Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; On/off legend marking
Standard UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1, Groups C, D, Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III
UPC 781381697323
GTIN 00781381697323
Item Type EDSC Series 1-Gang 3-Way Tumbler Switch
Voltage Rating 120 - 277
