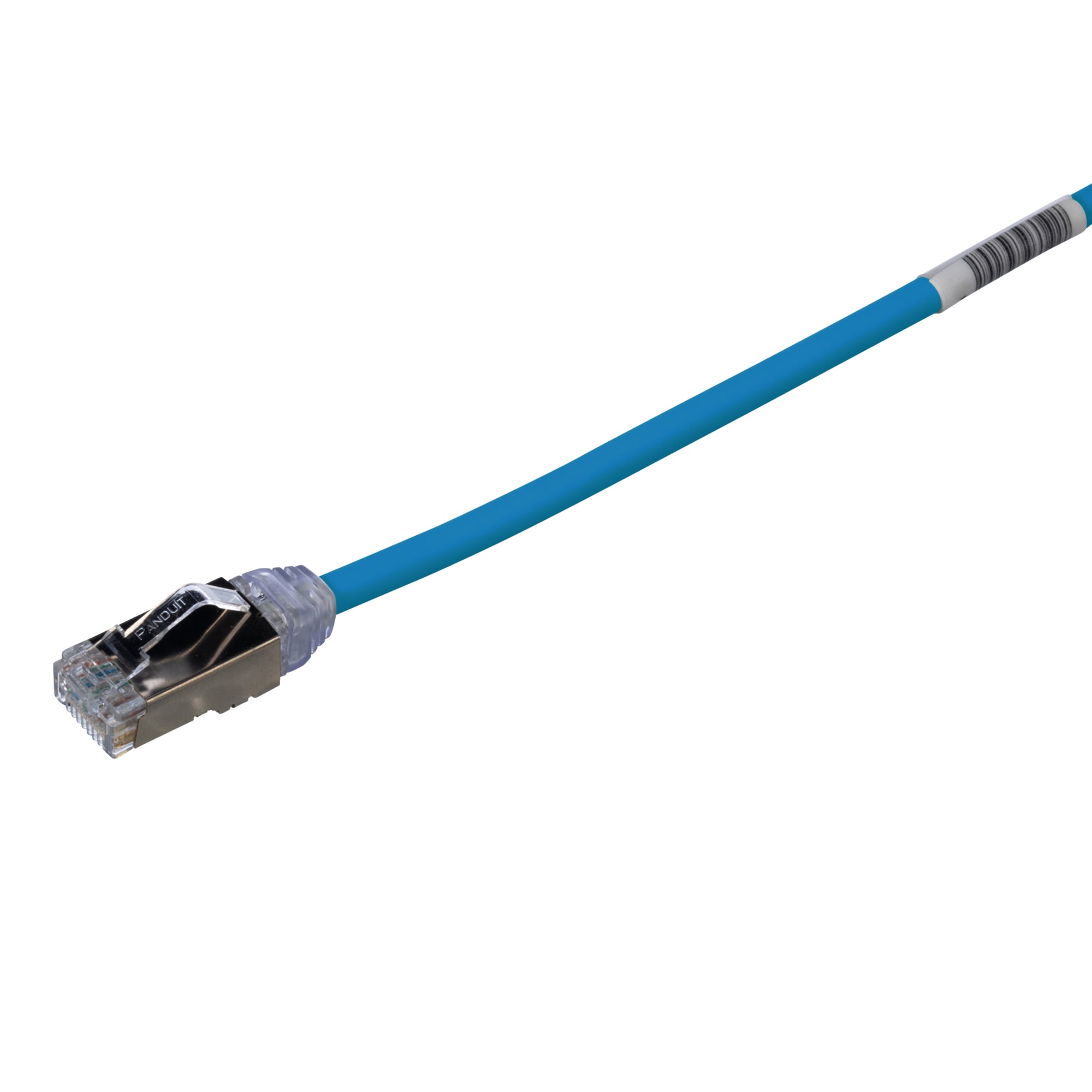

The TX6A-28 10Gig Cat 6A STP Patch Cord is a 1-Meter, 0.185-inch (4.7mm) diameter, Blue cord constructed of 28 AWG, shielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals and Documentation
- Catalog Number
- STP28X1MBU
- Manufacturer
- Panduit
- Brand
- Panduit
- Country of Origin
- Multiple
- Made in USA
- No
- Application
- (1)10GBASE-T Ethernet(2)Data center I/O Consolidation(3) Data center server virtualization(4)Backbone aggregation(5)Parallel processing and high speed computing
- Color
- Blue
- Conductor Material
- Copper
- Jacket Material
- LSZH Material
- Plug Type
- Modular Plug
- Standard
- Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at
- UPC
- 074983002627
- GTIN
- 00074983002627
- Item Type
- Shielded Patch Cord
- Length
- 3.28
- Outside Diameter
- 0.19
- Temperature Rating
- 167
- Wire Size
- 28
