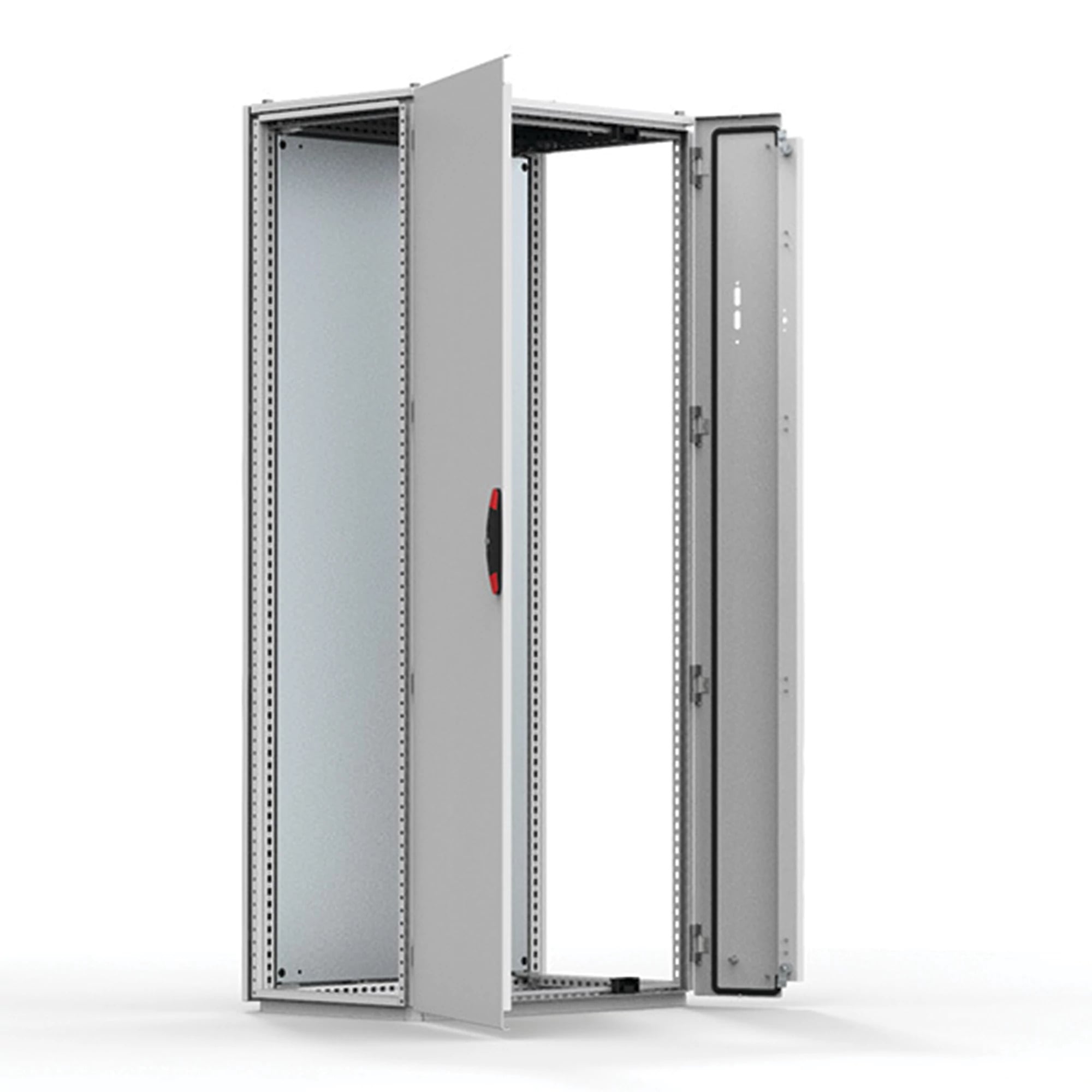

MCF20105R5 Flange Mount Disconnect Floor Standing Enclosure, 2000 mm L x 1000 mm W x 500 mm D, 12/13/IK10/IP55 NEMA Rating, Mild Steel
- MFR:
- nVent
- MFR #:
- MCF20105R5
- UPC:
- 783510493134
- Item #:
- 1192428
MCF20105R5 Flange Mount Disconnect Floor Standing Enclosure, 2000 mm L x 1000 mm W x 500 mm D, 12/13/IK10/IP55 NEMA Rating, Mild Steel
- MFR #:
- MCF20105R5
- UPC:
- 783510493134
- Item #:
- 1192428
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$5,307.36
each
The mild steel flange mount disconnect floor standing enclosure range, MCF, is available off the shelf in various sizes. It is equipped with a predefined cut-out, which reduces machining time, on the right hand door, that can be matched with most of the common switches in the market. The enclosure configurations that may be created comply with door interlocking and main switch regulations.
Manuals and Documentation
| Catalog Number | MCF20105R5 |
| Manufacturer | nVent |
| Brand | nVent HOFFMAN |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Controls and Drives; Factory Automation and Process Control |
| Cable Entry | No |
| Color | Light Gray |
| Construction | Body: 16 gauge Door: 14 gauge |
| Material | Mild Steel |
| Mounting | Din Rail |
| NEMA Rating | 12 |
| UPC | 783510493134 |
| GTIN | 00783510493134 |
| Item Type | Mild Steel Modular Industrial Disconnect Enclosures |
| Width | 39.37 |
| Height | 78.74 |
| Depth | 19.69 |
| Size | 78.74 x 39.37 x 19.69 inch |
