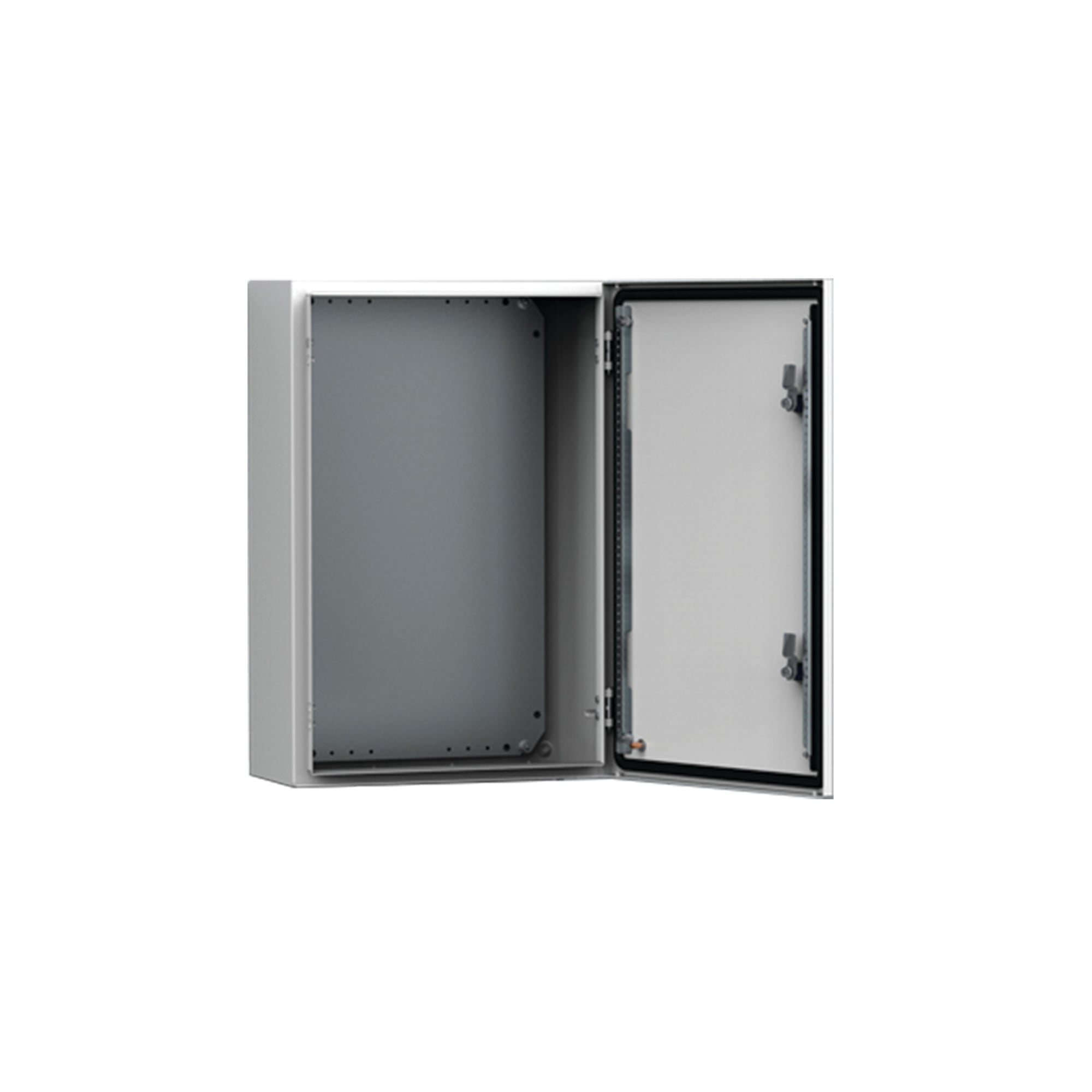

MAS0302515R5 1-Door Wall Mount Enclosure, 250 mm W x 155 mm D x 300 mm H, NEMA 4/12/13/IK10/IP66 NEMA Rating, Mild Steel
- MFR:
- nVent
- MFR #:
- MAS0302515R5
- UPC:
- 783510487188
- Item #:
- 1192370
MAS0302515R5 1-Door Wall Mount Enclosure, 250 mm W x 155 mm D x 300 mm H, NEMA 4/12/13/IK10/IP66 NEMA Rating, Mild Steel
- MFR #:
- MAS0302515R5
- UPC:
- 783510487188
- Item #:
- 1192370
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$272.39
each
The mild steel single door wall mounted enclosure range, MAS, with a IP 66 protection degree, is available off the shelf in many different sizes. This enclosure range is well suited for many different applications. The risk for component failure, and with that unnecessary downtime, is eliminated as water and dust are prevented from entering the enclosure.
Manuals and Documentation
| Catalog Number | MAS0302515R5 |
| Manufacturer | nVent |
| Brand | nVent HOFFMAN |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Controls and Drives; Factory Automation and Process Control |
| Cable Entry | No |
| Color | Light Gray |
| Construction | Body: 18 gauge Door: 18 gauge |
| Cubic Capacity | 709 Cu-in |
| Finish | Powder Coated |
| Insulation | No |
| Material | Mild Steel |
| Mounting | Wall |
| UPC | 783510487188 |
| GTIN | 00783510487188 |
| Item Type | Mild Steel Wall Mounted Industrial Enclosures |
| Width | 9.84 |
| Height | 11.81 |
| Depth | 6.1 |
| Size | 11.81 x 9.84 x 6.1 inch |
