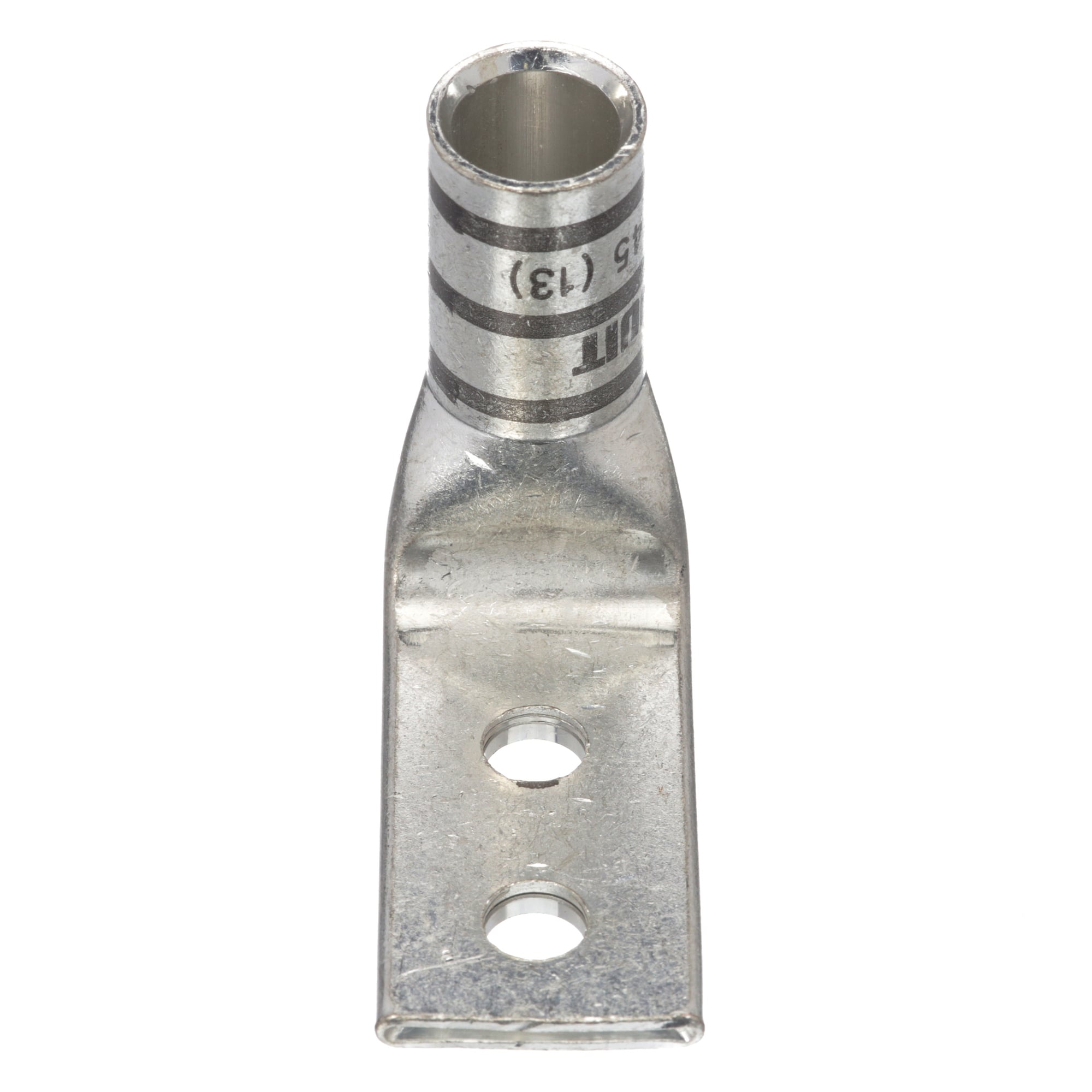

LCD2/0-14AF-X Pan-Lug LCD-F 2-Hole Compression Connector Lug, 2/0 AWG Flexible/Stranded Copper Conductor, Die Code: P45, 42.826 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCD2/0-14AF-X
- UPC:
- 074983568727
- Item #:
- 1187794
LCD2/0-14AF-X Pan-Lug LCD-F 2-Hole Compression Connector Lug, 2/0 AWG Flexible/Stranded Copper Conductor, Die Code: P45, 42.826 in Stud, Tin Plated Copper
- MFR #:
- LCD2/0-14AF-X
- UPC:
- 074983568727
- Item #:
- 1187794
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$25.0933
each
Two-hole, standard barrel lug with window, 2/0 AWG wire, 1/4 stud hole, .63 hole spacing, 90 angle tongue.
Manuals and Documentation
| Catalog Number | LCD2/0-14AF-X |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Black |
| Material | Tin-Plated Copper |
| Number of Holes | 2 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| UPC | 074983568727 |
| GTIN | 00074983568727 |
| Item Type | Compression Lug |
| Size | 2/0 AWG Code |
| Stud Size | 1/4 IN |
