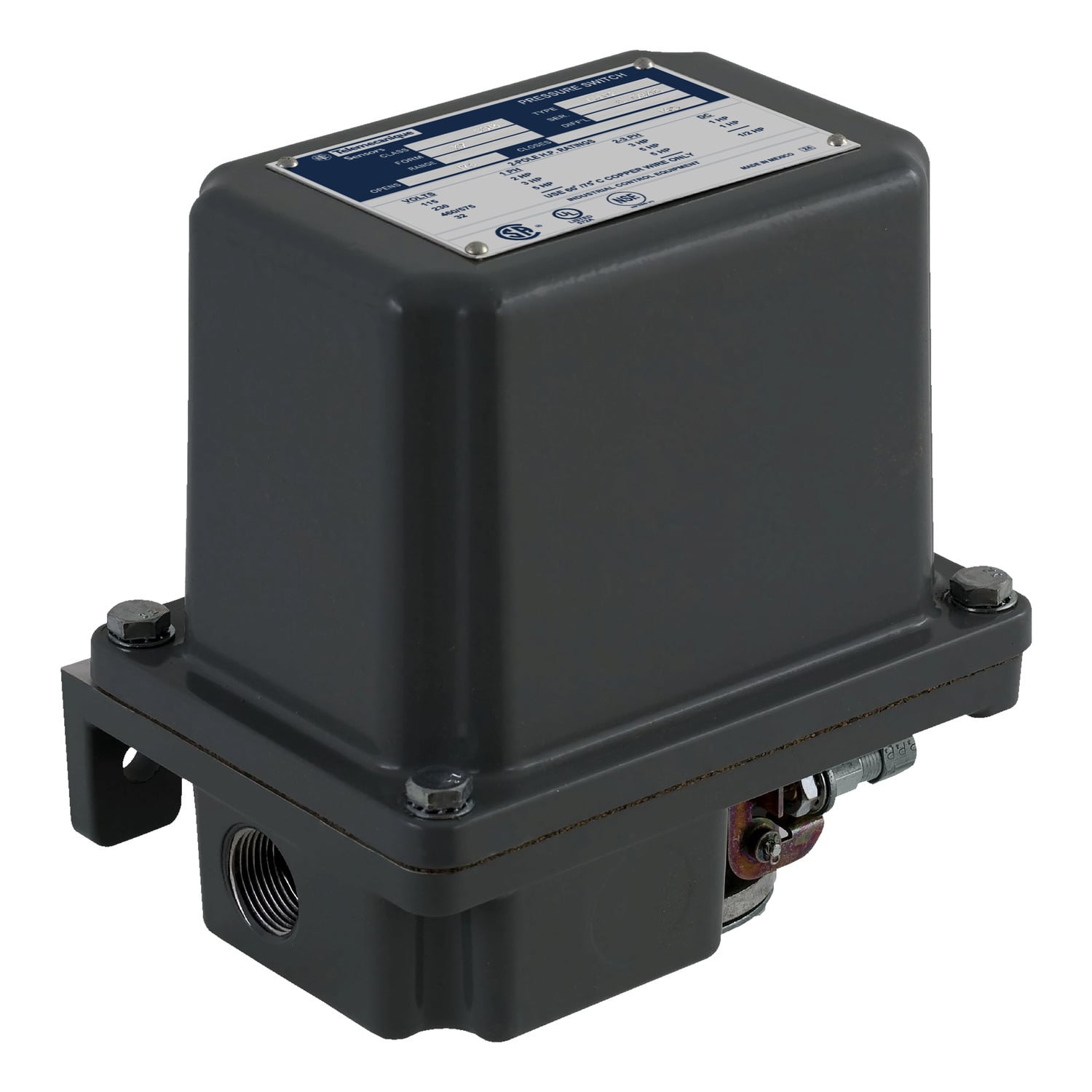

9013GHW2J99X Pumptrol Type G Electromechanical Pressure Switch, 35 to 150 psig Pressure, 2NC DPST-DB Contact, Screw Clamp Connection
- MFR:
- Telemecanique Sensors
- MFR #:
- 9013GHW2J99X
- UPC:
- 785901728115
- Item #:
- 1180594
9013GHW2J99X Pumptrol Type G Electromechanical Pressure Switch, 35 to 150 psig Pressure, 2NC DPST-DB Contact, Screw Clamp Connection
- MFR #:
- 9013GHW2J99X
- UPC:
- 785901728115
- Item #:
- 1180594
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
$1,001.32
each
pump or compressor switch 9013GH - adjustable diff. - factory setting
Manuals and Documentation
| Catalog Number | 9013GHW2J99X |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Control electrically driven water pumps and air compressors;Power circuit;Regulation between 2 thresholds |
| Contact Configuration | 2 NC, snap action, DPST-DB, Form YY |
| Enclosure | NEMA 4 UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.25 INCH NPSF INTERNAL UL 508 |
| Special Features | 2-way pressure release valve |
| Standard | CSA FILE LR25490-UL LISTED FILE E12158,IP20 IEC 60529,UL 508-CE-NSF ANSI 372 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=393233&lang=en-us |
| UPC | 785901728115 |
| GTIN | 00785901728115 |
| Item Type | Electromechanical pressure switch;Adjustable differential |
| Environmental Conditions | WATER TIGHT AND DUST TIGHT (INDOOR/OUTDOOR) |
| Operating Temperature | -33-257 A Degrees C |
| System Pressure | 200 PSI 35-150 PSI) |
