Telemecanique

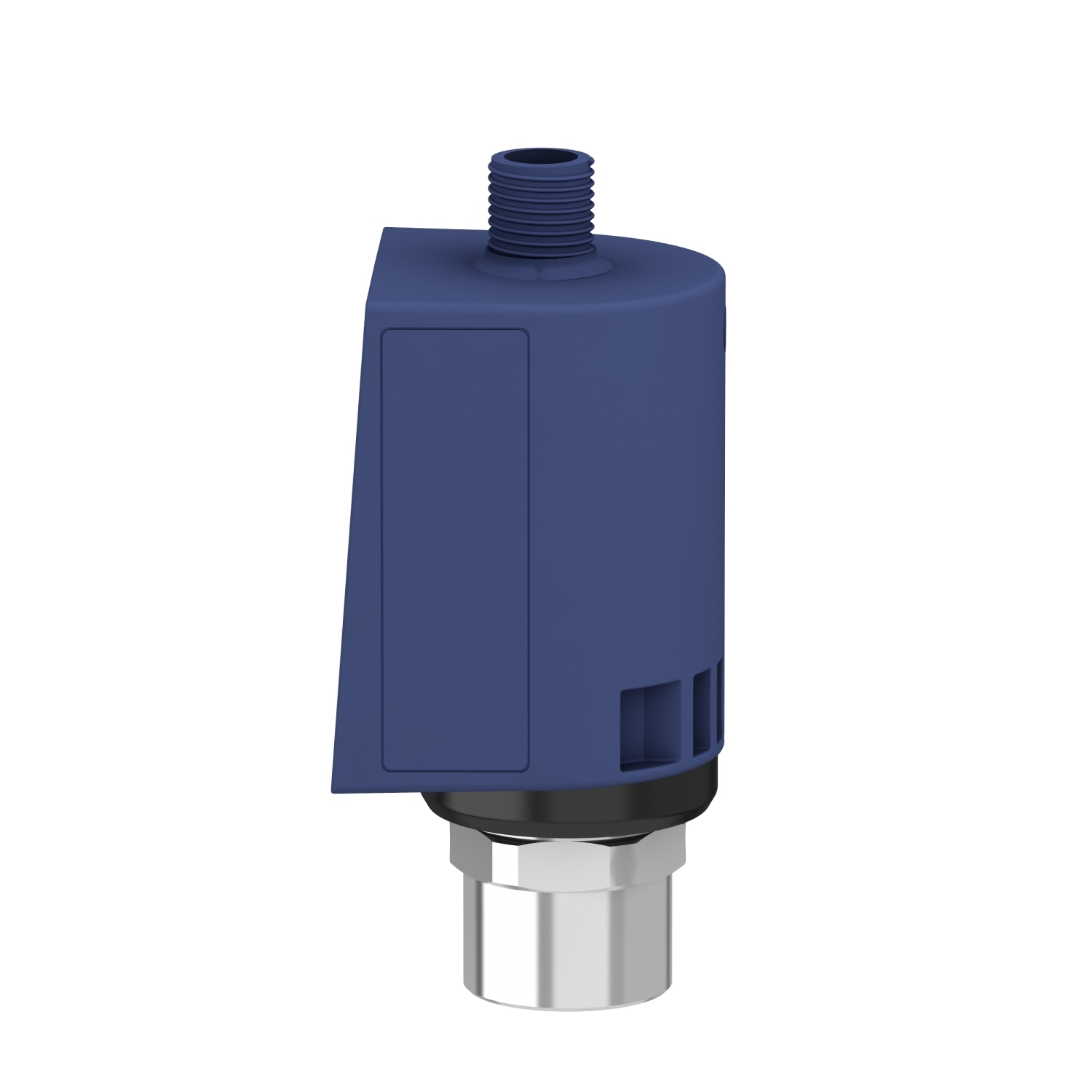

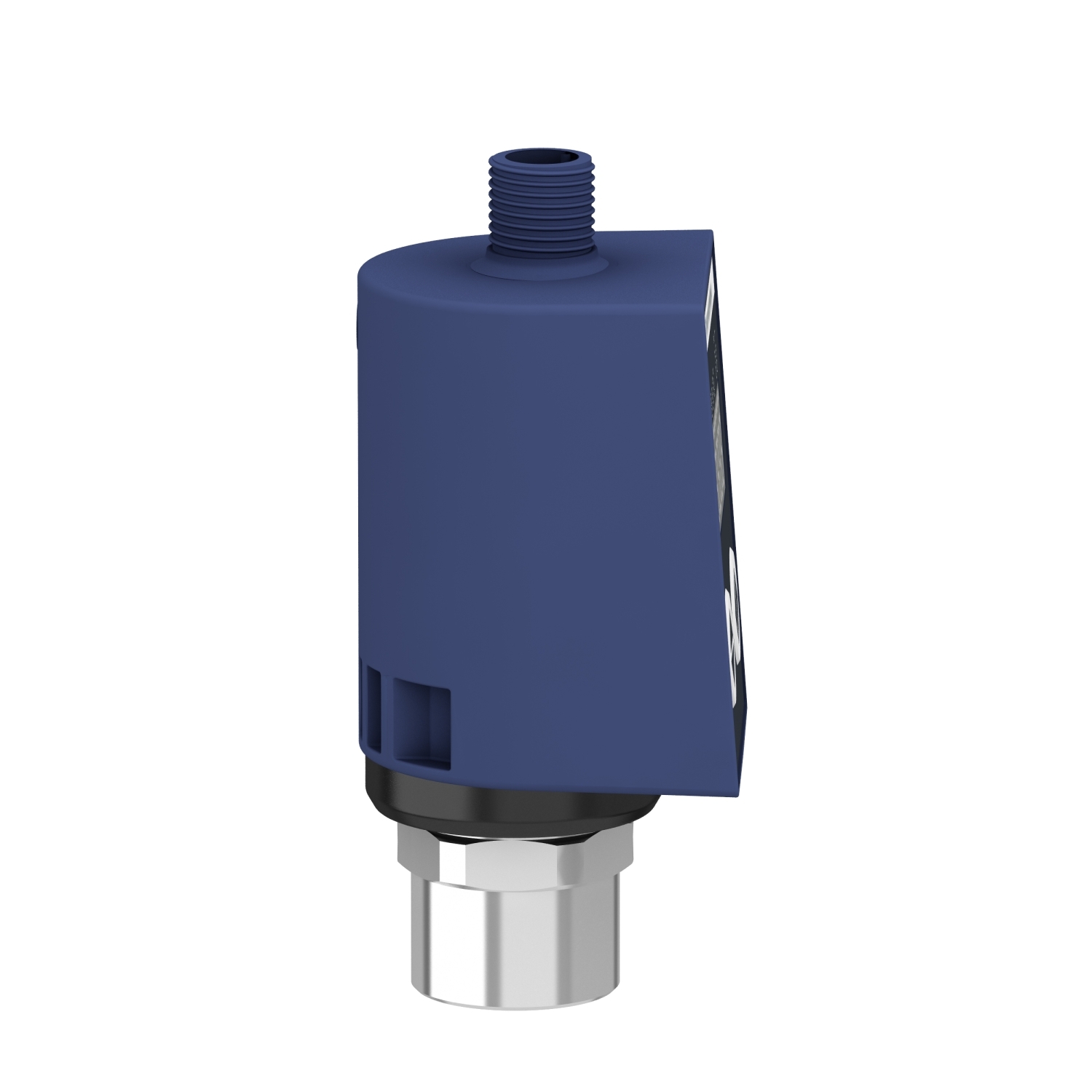

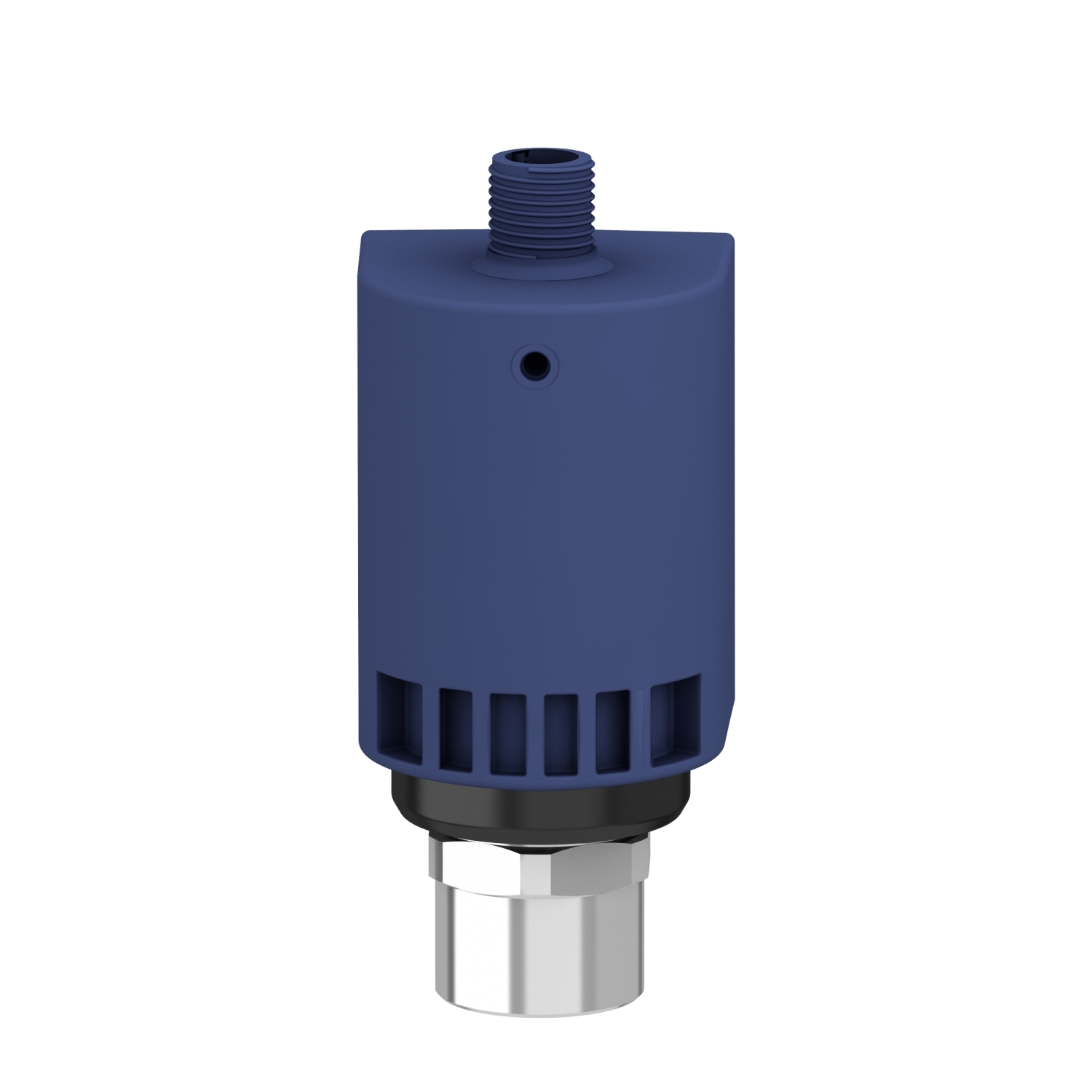

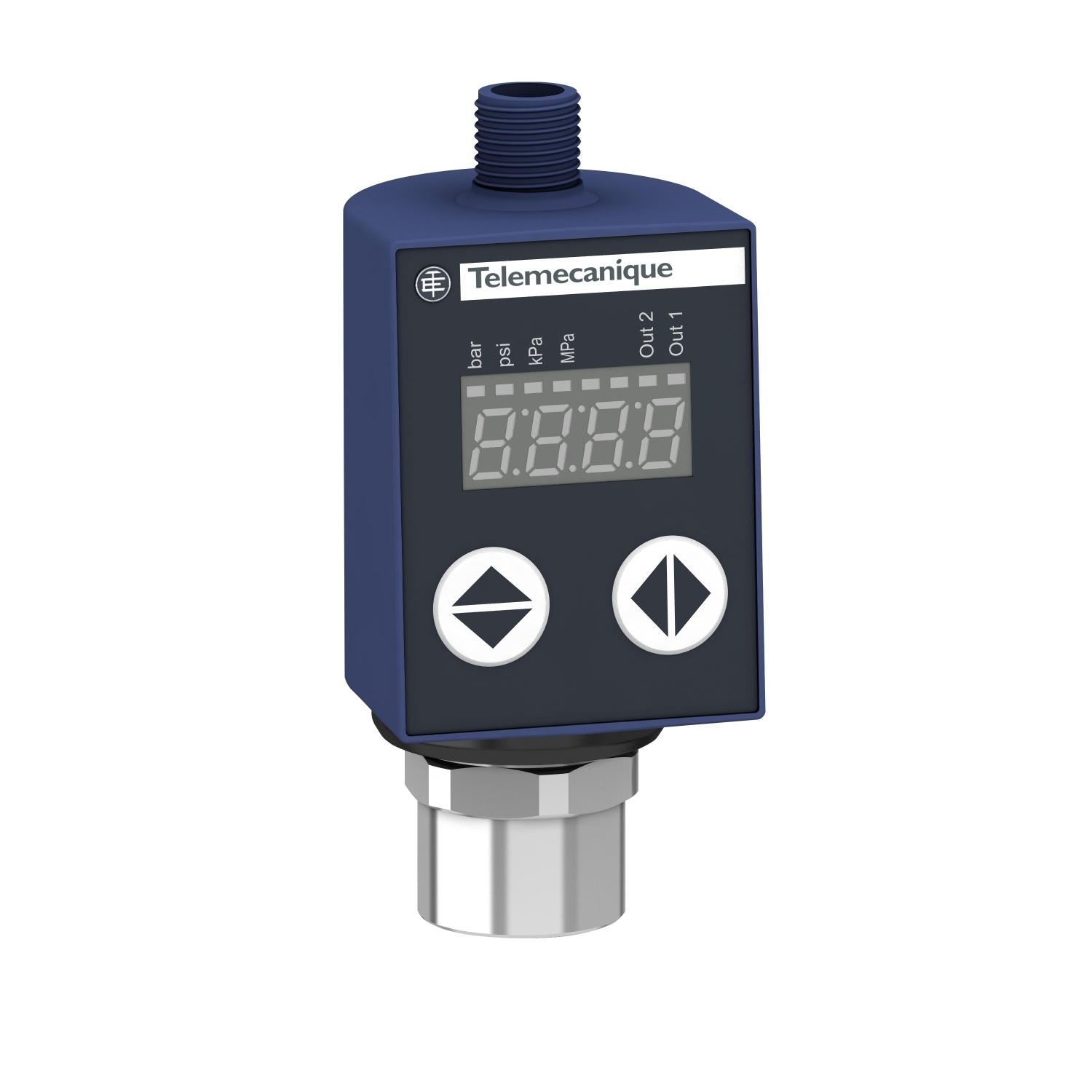

XMLR010G2P05 XMLR Series Fixed Differential, Pressure Sensor sensing, 5 ms response, PNP Output, 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XMLR010G2P05
Item #:
1178174

Availability

Location Available Qty
Available Available to Order
$612.39 each

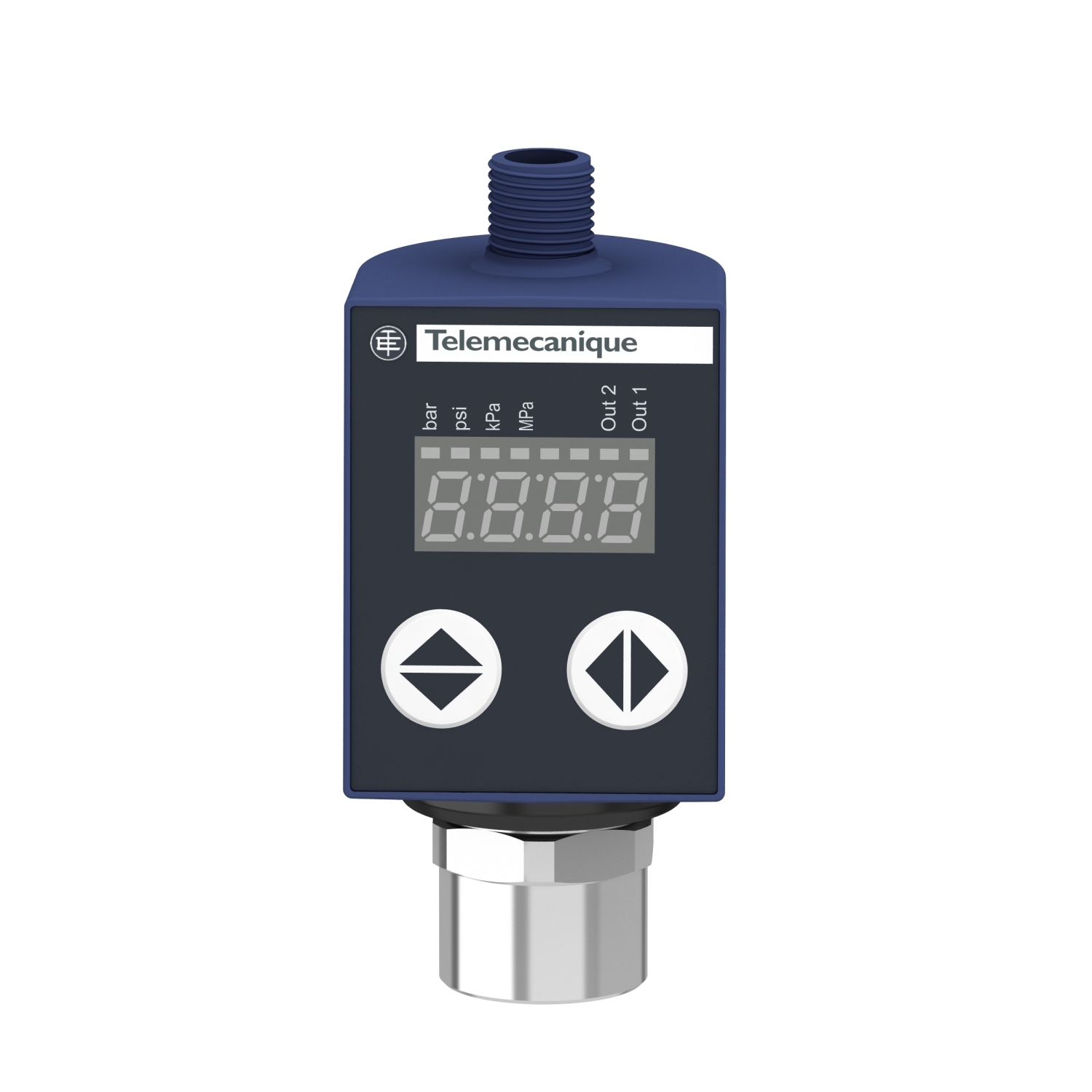

This XMLR electronic pressure sensor has a 4 digit 7-segment display. This electronic pressure transmitter sensor with digital display is designed for accurate pressure measurement and display. It is fixed directly on tubage. It provides high corrosion resistance AISI 316L stainless steel and fluorocarbon resin pressure chamber for maximum longevity. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It has a supply voltage of 24V DC and 2 x solid state outputs (PNP). It provides IP65/IP67 degree of protection. It is ideal in moulding and thermoforming presses, injection machines, pneumatic systems and assembly machinery, hydraulic systems of lifting and handling equipment, pumping and fresh water treatment. It complies with EN/IEC 61326-2-3 and UL 61010-1.

Manuals and Documentation
Catalog Number XMLR010G2P05
Manufacturer Telemecanique Sensors
Brand Telemecanique
Country of Origin Indonesia
Made in USA No
Accuracy <= 1 % of the measuring range;<= 0.6 % of the measuring range
Connection Male connector M12, 4 pins
Output Discrete;Solid state PNP, 2 NO/NC programmable
Response Time <= 5 ms discrete output
Standard Susceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3;immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6;surge immunity test 1 kV EN/IEC 61000-4-5;electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4;electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=347330646&lang=en-us
GTIN 03389119610551
Item Type Pressure transmitter;Electronic pressure sensors
Voltage Rating 24 V DC SELV 17-33 V)
