Mersen

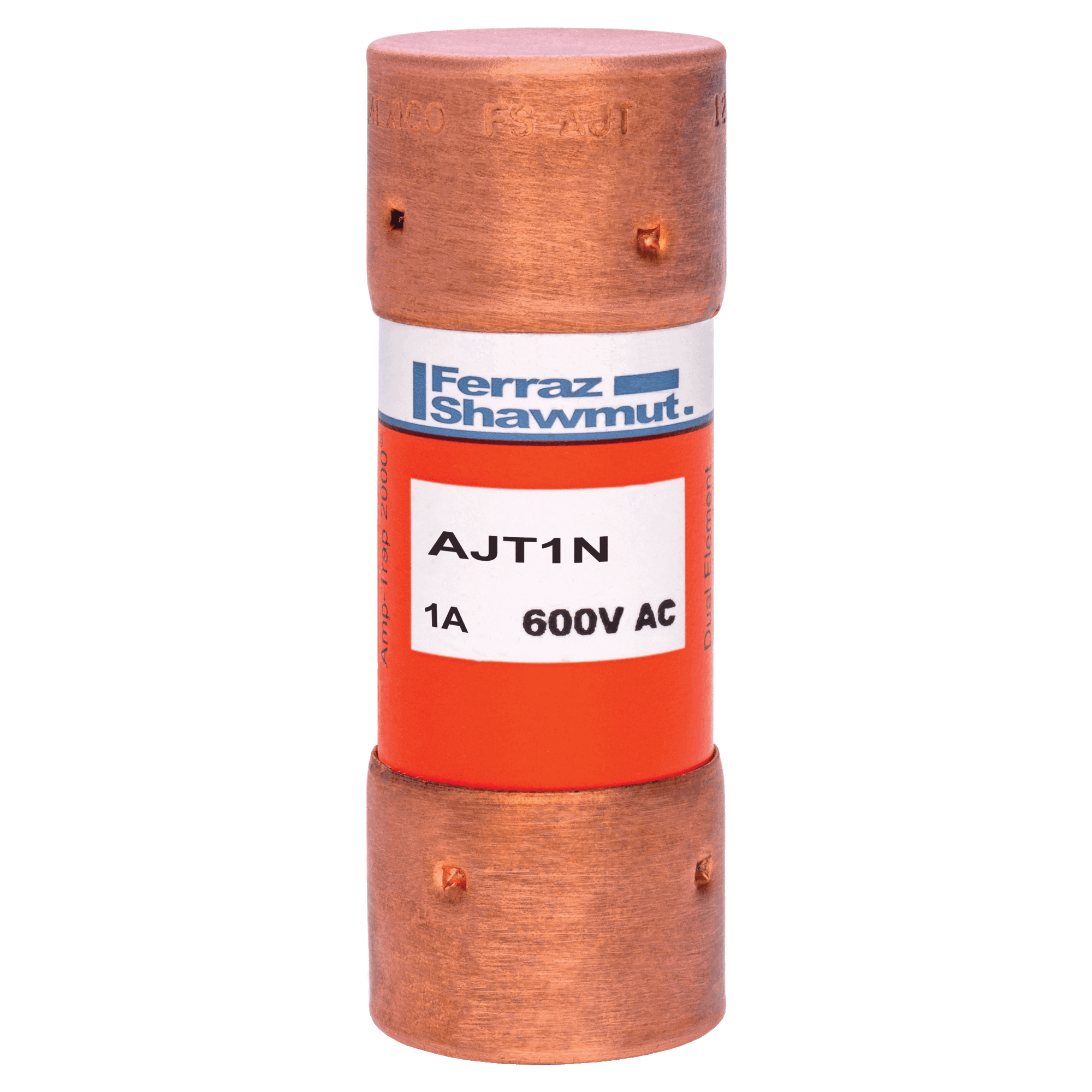

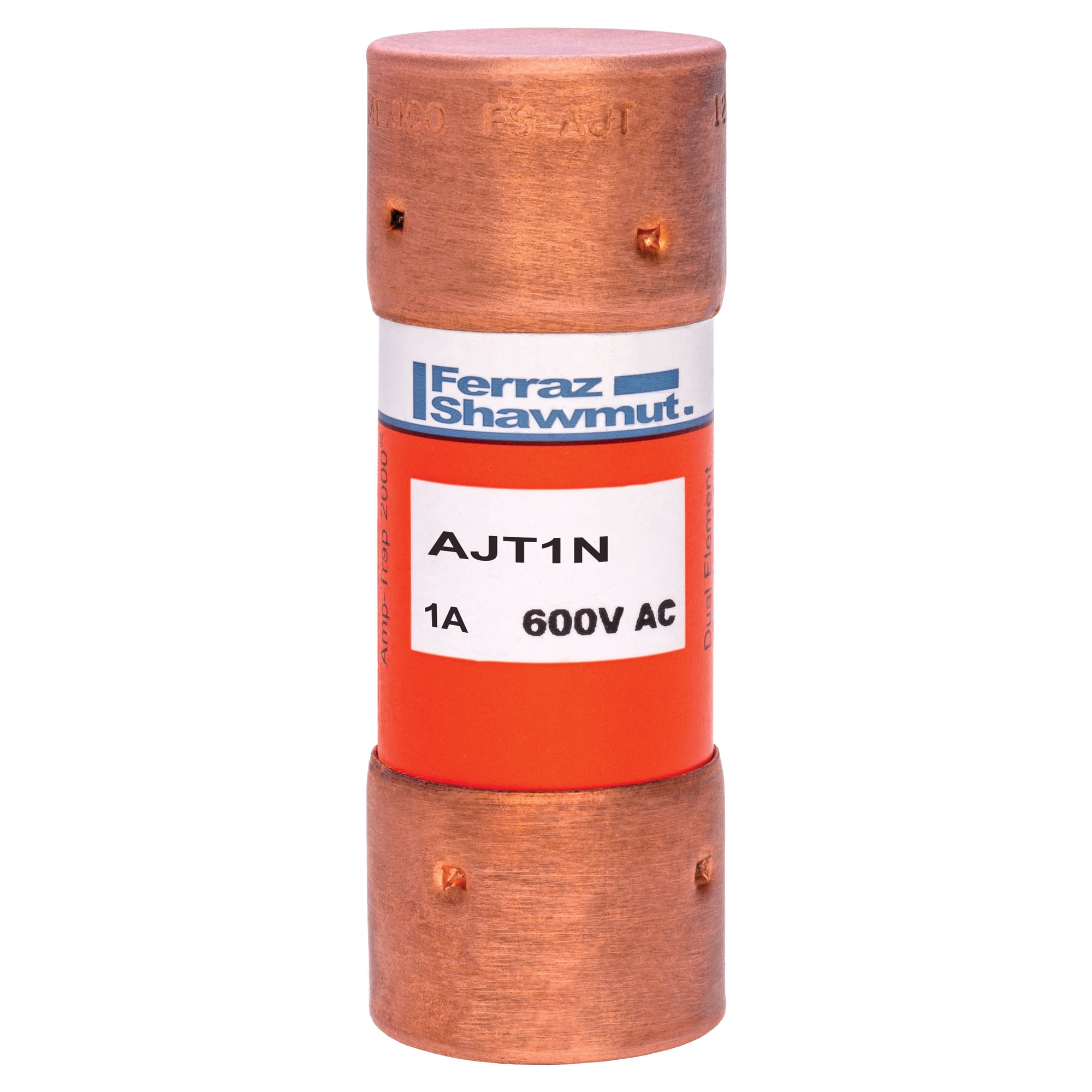

AJT1N AJT Time Delay Fuse, 1 A, 600 V AC/500 V DC, 100 kA at 500 VDC, 200 kA at 600 VAC Interrupt, Class: J

MFR:
Mersen
MFR #:
AJT1N
UPC:
782001497965
Item #:
1175655

Availability

Location Available Qty
Available 9 ea
$99.24 each

Fuse AJT - Class J - Time-delay 600VAC 500VDC 1A Ferrule Amp-Trap 2000

Manuals and Documentation
Catalog Number AJT1N
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Amperage Rating 1
Application Motor circuits Mains Feeders Branch circuits Lighting, heating & general loads Transformers Control panels Circuit breaker back-up Bus duct Load centers
Connection Ferrule
Interrupt Rating 200 KA
Mounting Clip
Special Features Non-indicating or solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Recommended for Arc Flash energy reduction Small footprint requires less mounting space and allows smaller, more economical fuse blocks Easy 2-to-1 selectivity for prevention of nuisance shutdowns Unique Class J dimensions prevent replacement errors High-visibility orange label gives instant brand recognition Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI indicator/switch mount for AJT70 to 600 open fuse indication
Standard AJT (1-600): UL listed to standard 248-8 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.8 IEC 60269-2-1 AJT (70-600) EI: UL listed DC tested to UL standard 248
UPC 782001497965
GTIN 00782001497965
Item Type Class J
Size 2.25 x 0.81
