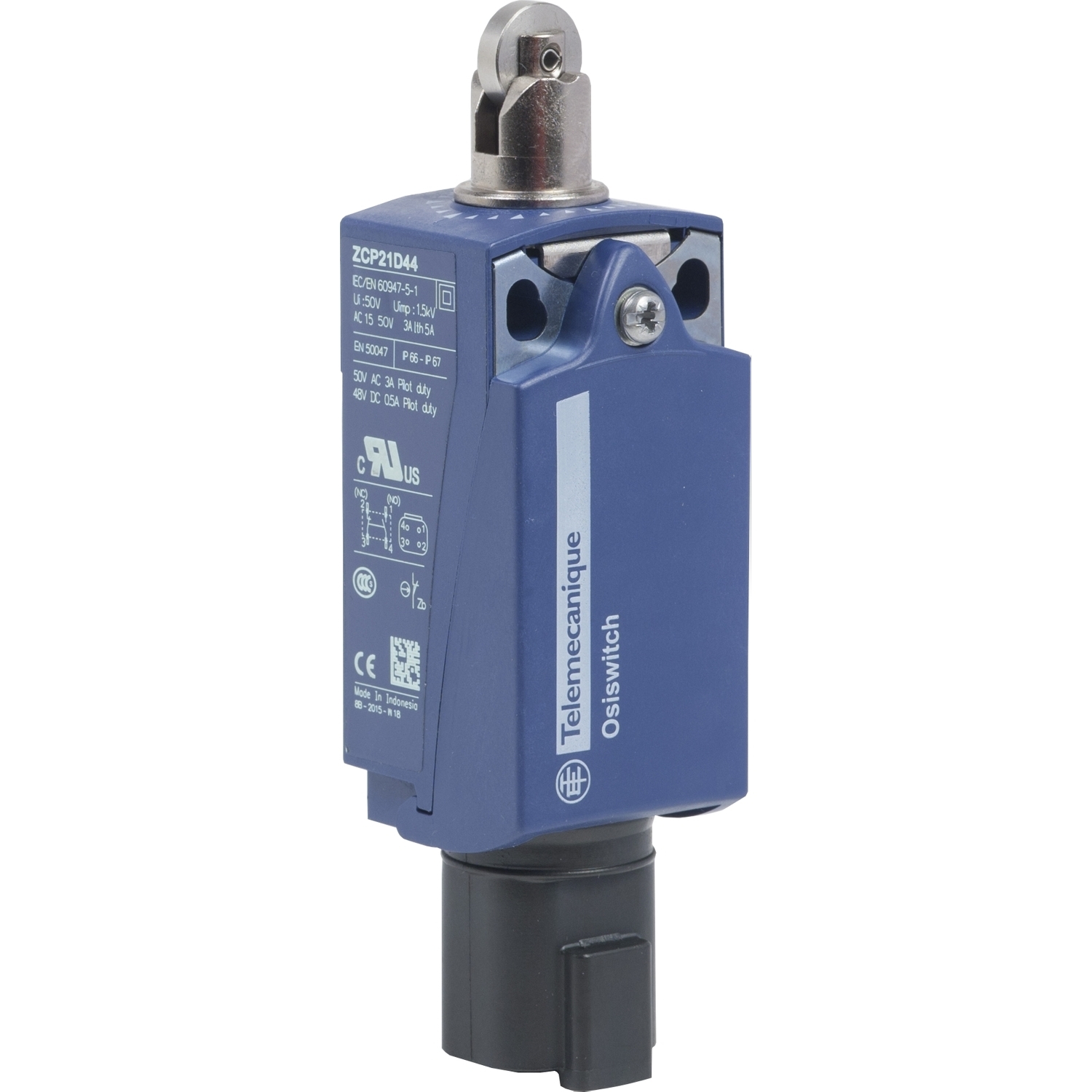

XCKP2102D44 OsiSense Compact Fixed Light Duty Standard Format Limit Switch, 5 A, Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKP2102D44
- UPC:
- 785901627982
- Item #:
- 1174350
XCKP2102D44 OsiSense Compact Fixed Light Duty Standard Format Limit Switch, 5 A, Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKP2102D44
- UPC:
- 785901627982
- Item #:
- 1174350
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$121.54
each
Limit switch, Limit switches XC Standard, l.switch XCKP steel roller plunger 1NC+1 NO snap Deutsch connector
Manuals and Documentation
| Catalog Number | XCKP2102D44 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | By 30 Degrees cam;Lateral approach, 2 directions;Snap action |
| Actuator | Spring return roller plunger metal |
| Amperage Rating | 5 |
| Application | XCKP,XCKP,PLUNGER HEAD,STANDARD FORMAT |
| Connection | DEUTSCH connector male, 4 pins |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,PLASTIC |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529,UL 508-EN/IEC 60204-1-EN/IEC 60947-5-1-CSA C22.2 NO 14,CURUS-CCC,CLASS II IEC 61140-CLASS II NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7044598&lang=en-us |
| UPC | 785901627982 |
| GTIN | 03389119042185 |
| Item Type | Limit switch |
| Size | 1.18 |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 3 A 50 V, AC-15 EN/IEC 60947-5-1 APPENDIX A-0.27 A 50 V, DC-13 EN/IEC 60947-5-1 APPENDIX A |
