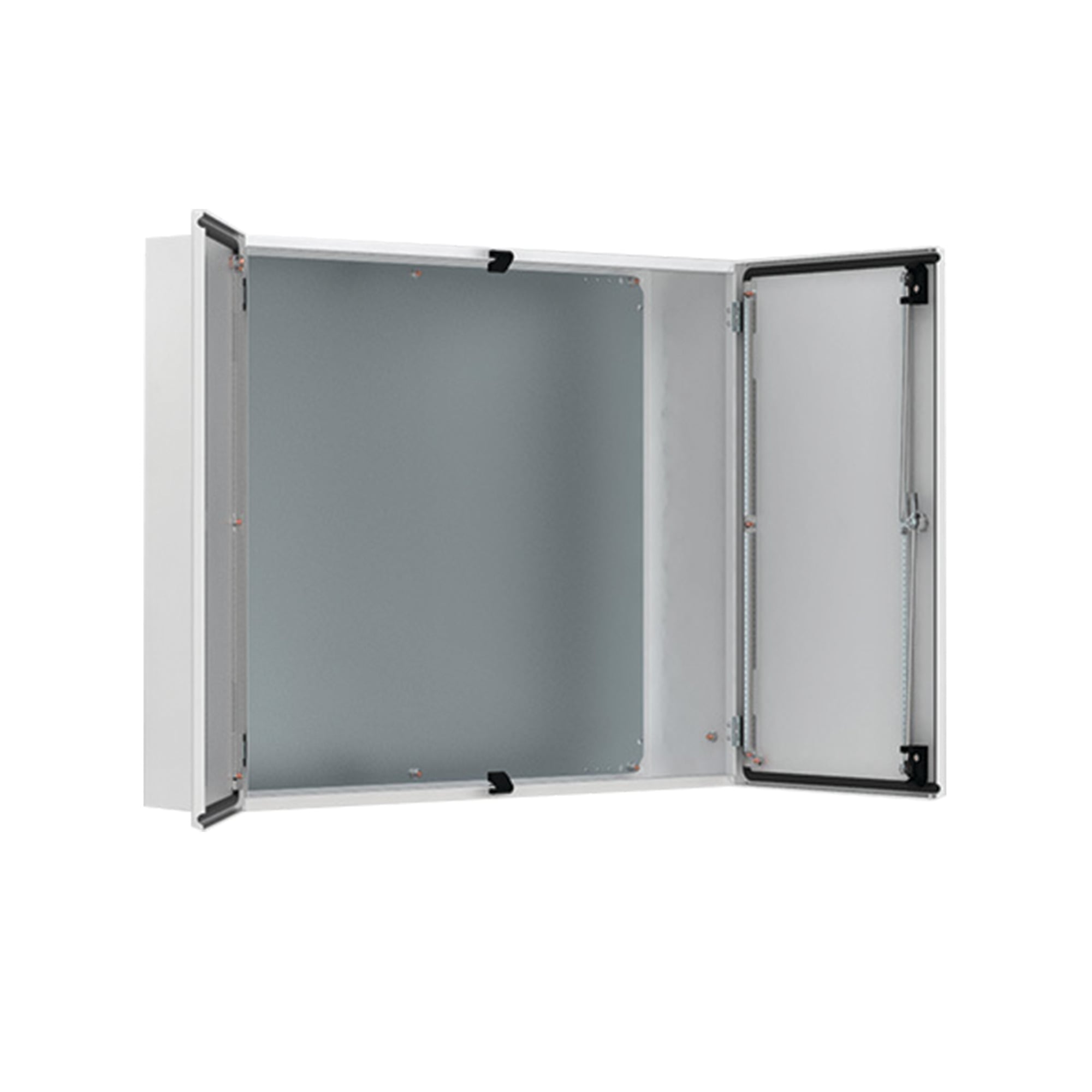

MAD1401030R5 2-Door Wall Mount Enclosure, 1000 mm W x 300 mm D x 1400 mm H, NEMA 12/13/IK10/IP55 NEMA Rating, Mild Steel
- MFR:
- nVent
- MFR #:
- MAD1401030R5
- UPC:
- 783510486778
- Item #:
- 1173844
MAD1401030R5 2-Door Wall Mount Enclosure, 1000 mm W x 300 mm D x 1400 mm H, NEMA 12/13/IK10/IP55 NEMA Rating, Mild Steel
- MFR #:
- MAD1401030R5
- UPC:
- 783510486778
- Item #:
- 1173844
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$3,058.08
each
The mild steel double door wall mounted enclosure range, MAD, is ideal for installation in confined spaces where a single door, when opened, would take up too much space in front of the enclosure. The doors' loading capacity also increases as it is divided over two doors. With a IP 55 protection degree, components inside the enclosure are well protected and makes it well suited for many different applications.
Manuals and Documentation
| Catalog Number | MAD1401030R5 |
| Manufacturer | nVent |
| Brand | nVent HOFFMAN |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Factory Automation and Process Control; Controls and Drives |
| Cable Entry | No |
| Color | Light Gray |
| Construction | Body: 16 gauge Door: 14 gauge |
| Cubic Capacity | 15 Cu-ft |
| Finish | Powder Coated |
| Insulation | No |
| Material | Mild Steel |
| Mounting | Wall |
| UPC | 783510486778 |
| GTIN | 00783510486778 |
| Item Type | Mild Steel Wall Mounted Industrial Enclosures |
| Width | 39.37 |
| Height | 55.12 |
| Depth | 11.81 |
| Size | 55.12 x 39.37 x 11.81 inch |
