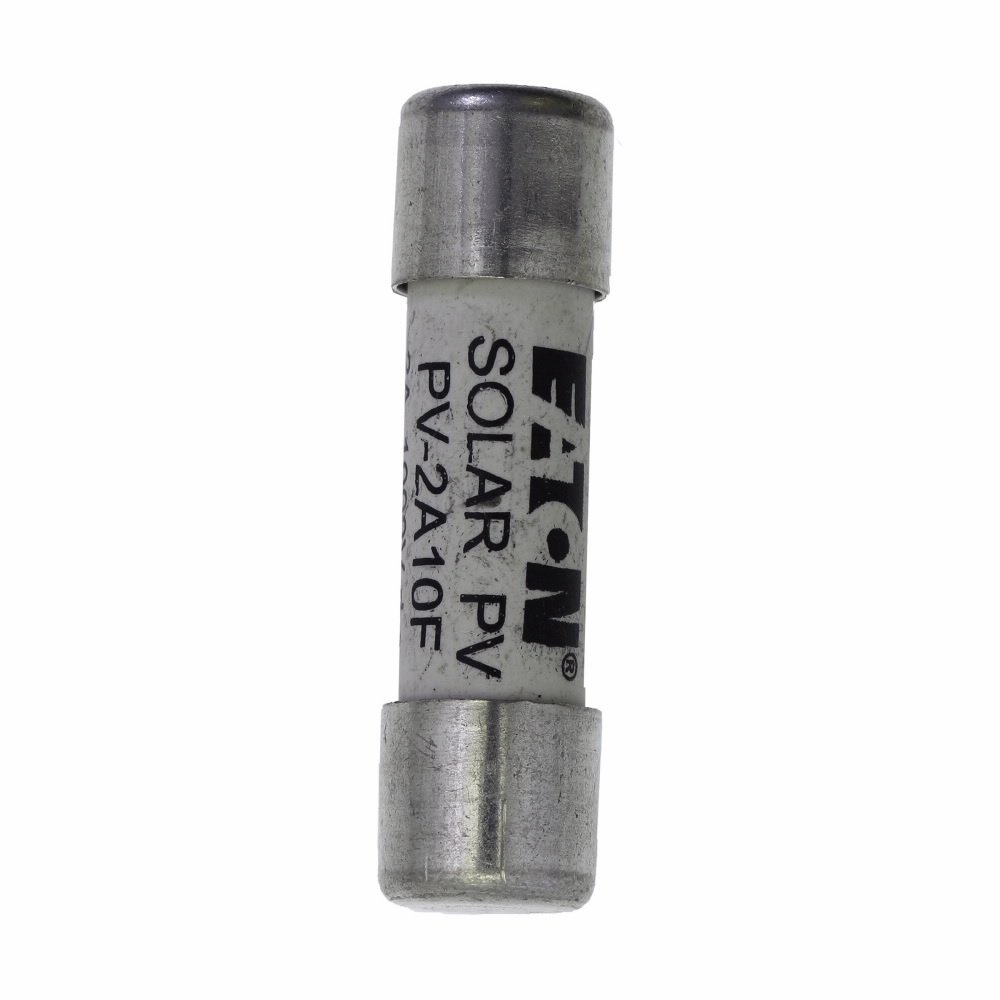

PV-2A10F High Speed Photovoltaic Fuse, 2 A, 1 kV DC, 50 kA Interrupt, Class: gPV
- MFR:
- Eaton Bussmann
- MFR #:
- PV-2A10F
- UPC:
- 051712245173
- Item #:
- 1170787
PV-2A10F High Speed Photovoltaic Fuse, 2 A, 1 kV DC, 50 kA Interrupt, Class: gPV
- MFR #:
- PV-2A10F
- UPC:
- 051712245173
- Item #:
- 1170787
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$93.62
each
Eaton's Bussmann series photovoltaic gPV solar fuses are specifically designed to protect DC system up to 1500 V d.c. They are suitable for the DC protection of solar panels, combiner boxes, recombiner units and battery storage.
| Catalog Number | PV-2A10F |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 2 |
| Application | Generation - Renewable Energy - Alternative Energy|Generation - Renewable Energy - Solar|Generation - Renewable Energy - Storage Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 50 kAIC |
| Material | Ceramic |
| Special Features | Minimum interrupting rating 1.3 x In, Time constant: 1-3 ms |
| Standard | IEC Rated ,UL Listed (when used with Eaton socket) ,UL Listed ,CSA Certified ,UL 2579 ,CCC Marked ,UL Listed ,CCC Marked ,CSA Certified ,Clasificación IEC ,UL 2579 ,UL Listed (when used with Eaton socket),RoHS Compliant,CE Marked,Con marca CE,Compatible con RoHS |
| UPC | 051712245173 |
| GTIN | 00051712245173 |
| Item Type | High speed photovoltaic fuse |
| Size | 10.30 mm Diameter X 38.00 mm Length |
| Voltage Rating | 1000 Vdc |
