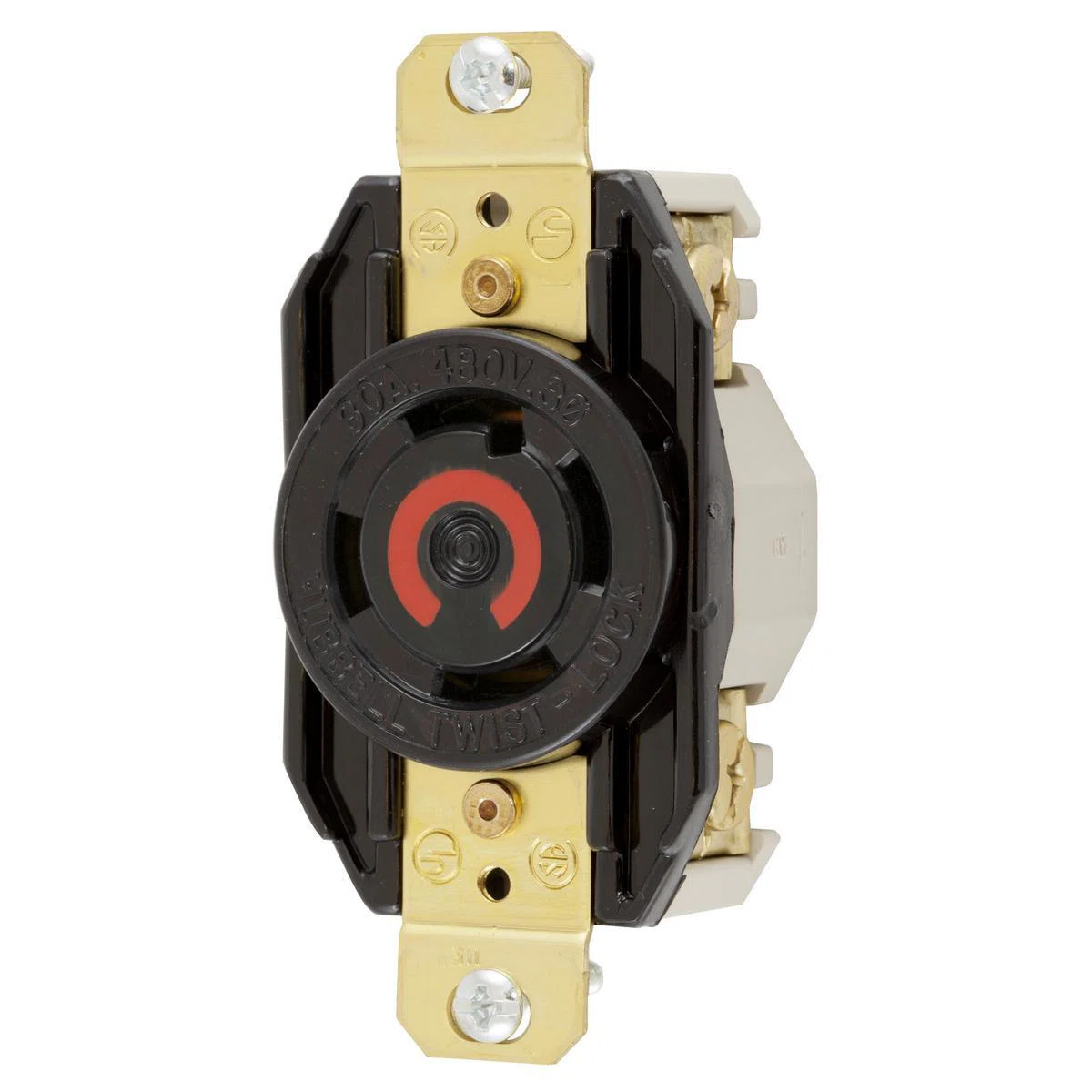

HBL2730RT 1-Phase Flush Grounding Standard Single Screw Mount Locking Receptacle, 480 V AC, 30 A, 3 Poles, 4 Wires, Black
- MFR:
- Hubbell
- MFR #:
- HBL2730RT
- UPC:
- 783585234557
- Item #:
- 1167255
HBL2730RT 1-Phase Flush Grounding Standard Single Screw Mount Locking Receptacle, 480 V AC, 30 A, 3 Poles, 4 Wires, Black
- MFR #:
- HBL2730RT
- UPC:
- 783585234557
- Item #:
- 1167255
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$109.43
each
Twist-Lock® receptacles have always held advantages over conventional ones. Today's Twist-Lock® receptacles maintain the advantage by combining functional design features, unparalleled quality, pace setting performance and now ring terminal capabilities. The all brass mounting systems provide a safer, low resistance ground path. This is just one of the features that continue to set Twist-Lock® receptacles above all others.
Manuals and Documentation
Features
- Ring terminal and side wired capabilities
- Color coding by voltage rating helps facilitate mating of proper devices
- Reinforced thermoplastic polyester base has the desirable characteristics of a thermoset material, including heat and flame resistance, plus the advantage of dimensional stability
- High impact, abuse resistant nylon face
| Manufacturer Part Number | HBL2730RT |
| Stripped Manufacturer Part Number | HBL2730RT |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| UPC | 783585234557 |
| Country Of Origin | PR |
| Amperage Rating | 30 A |
| Color | Black |
| Horsepower | 10 hp |
| Material | Thermoplastic |
| Temperature Rating | -40 to 75 deg C |
| Type | 1-Phase Flush Grounding Standard Single Screw Mount |
| Voltage Rating | 480 V AC |
| Alternative Part Number | 8915606 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | RoHS Compliant | UL 498 | CSA C22.2 No. 42/0.17 | UL94 Flammability Rating | Federal Specification W-C-596 | NEMA WD1/WD5 |
| Application | Dry Locations and Indoor Applications |
| Grade | Industrial |
| Nema Rating | L16-30R |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Terminal Type | Screw |
