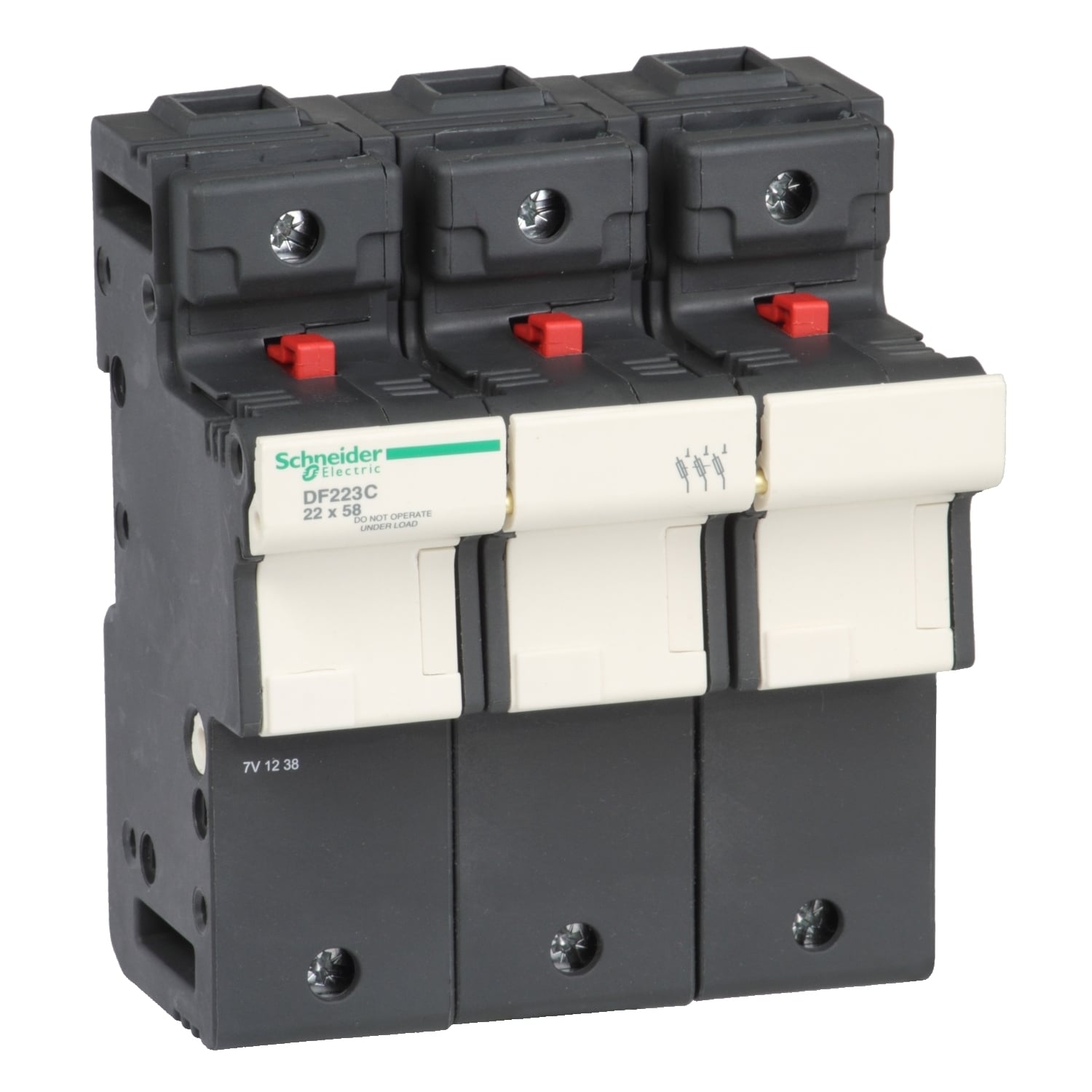

DF223C TeSys Fuse Holder, 600 V, 125 A, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- DF223C
- Item #:
- 1165510
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$207.76
each
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately). Compact (105mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC).
Manuals and Documentation
| Catalog Number | DF223C |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Tunisia |
| Made in USA | No |
| Fuse Type | , gG;, aM |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=604704&lang=en-us |
| GTIN | 03389119407526 |
