Hubbell Wiring Device-Kellems

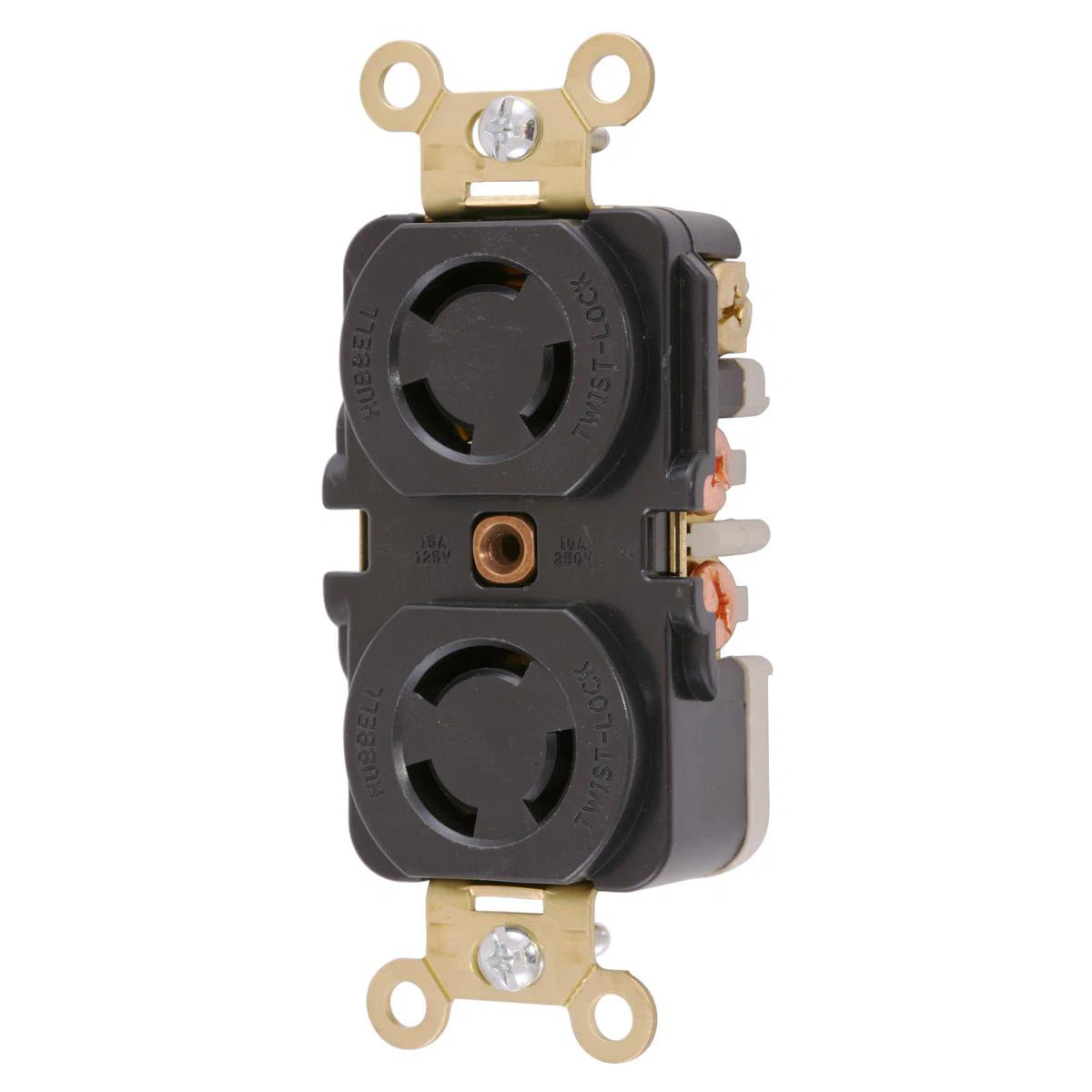

HBL7580 1-Phase Duplex Heavy Duty Non-Grounding Midget Standard Screw Mount Locking Receptacle, 125/250 V AC, 10/15 A, 3 Poles, 3 Wires, Black

MFR:
Hubbell
MFR #:
HBL7580
UPC:
783585002354
Item #:
116515

Availability

Location Available Qty
Available Available to Order
$96.86 each

Hubbell Wiring Device-Kellems Twist-Lock®, HBL7580, Locking Receptacle, 1-Phase Duplex Heavy Duty Non-Grounding Midget Standard Screw Mount, 125/250 V AC, 10/15 A, 3 Pole, 3 Wires, Industrial Grade, IP20 Enclosure, -40 to 70 deg C, Screw Terminal, Thermoplastic, Black, 3.29 x 1.7 x 1.17 in Dimensions

Manuals and Documentation

Features

  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • Mounting strap tabs lock the body and base together
  • Single point break-off tabs
Manufacturer Part Number HBL7580
Brand Hubbell Wiring Device-Kellems
Manufacturer Hubbell
UPC 783585002354
EAN 0783585002354
Country Of Origin US
Amperage Rating 10/15 A
Color Black
Dimensions 3.29 x 1.7 x 1.17 in
Enclosure IP20
Material Thermoplastic
Temperature Rating -40 to 70 deg C
Type 1-Phase Duplex Heavy Duty Non-Grounding Midget Standard Screw Mount
Voltage Rating 125/250 V AC
Alternative Part Number 8940400 | 11826104
Manufacturer Item Status Active
Country USA/Canada
Warranty Limited
Standards Approvals CSA C22.2 No. 0.17/42 | UL94 V-2 Flammability Rating | RoHS Compliant | UL 498 | Federal Specification W-C-596
Application Indoor Applications
Grade Industrial
Number Of Poles 3
Number Of Wires 3
Terminal Type Screw
