SCHNEIDER ELECTRIC

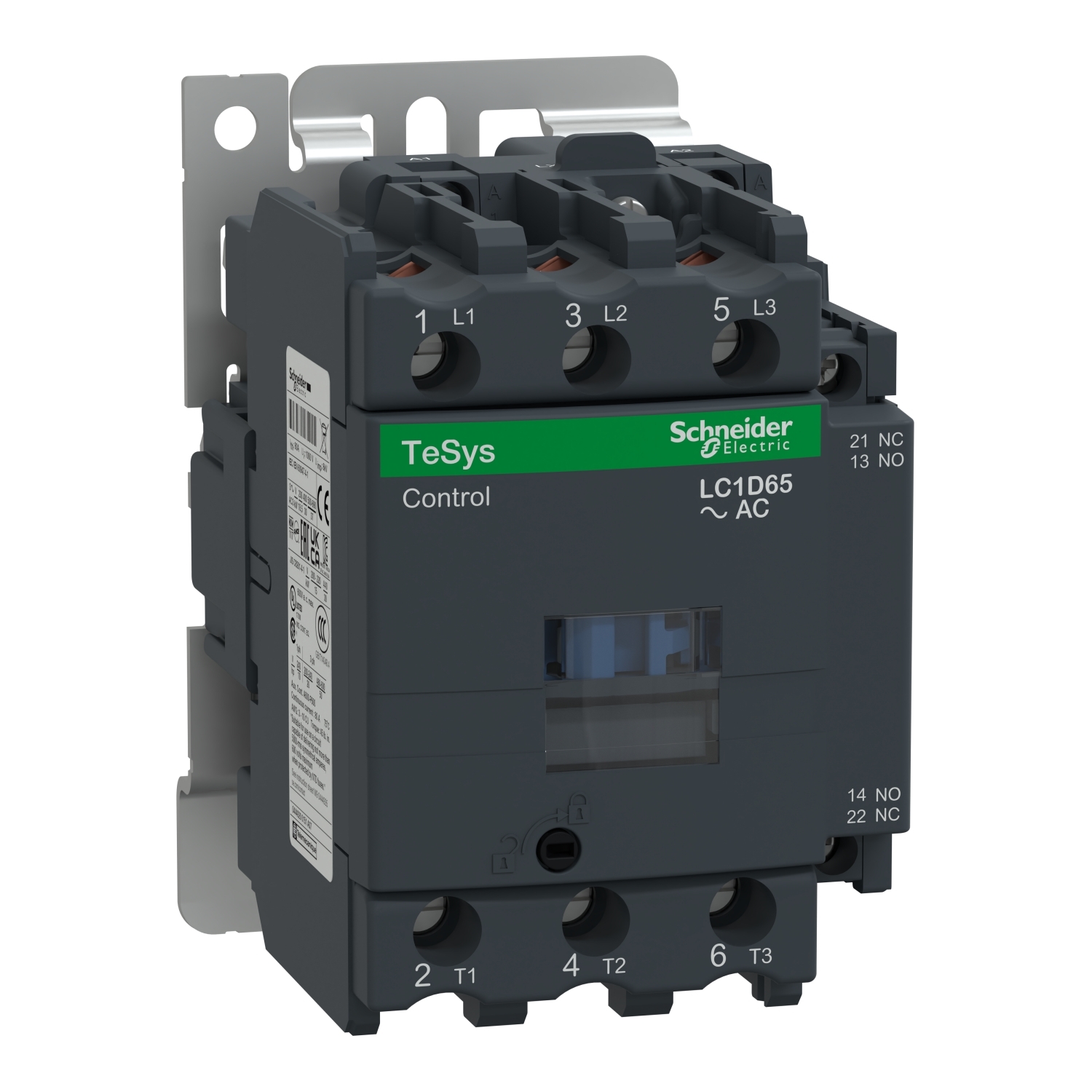

LC1D65G7 LC1D D-Line 3-Pole Iec Contactor, 120/690 VAC V Coil, 65/80 A, 3NO Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
LC1D65G7
Item #:
116446

Availability

Location Available Qty
Available 5 ea
$770.09 each

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 65A/690V AC-3 (30kW@400V). They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Manuals and Documentation
Catalog Number LC1D65G7
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Motor control;resistive load
Coil Voltage 120 V AC 50/60 Hz
Connection Control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminal 1 1-2.5 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminal 2 1-2.5 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: flexible with cable end;power circuit: connector 1 2.5-35 mm² - cable stiffness: solid with cable end;power circuit: connector 2 2.5-35 mm² - cable stiffness: solid with cable end;power circuit: connector 1 2.5-35 mm² - cable stiffness: flexible without cable end;power circuit: connector 2 2.5-25 mm² - cable stiffness: flexible without cable end;power circuit: connector 1 2.5-35 mm² - cable stiffness: flexible with cable end;power circuit: connector 2 2.5-35 mm² - cable stiffness: flexib
Contact Configuration 1 NO + 1 NC;3 NO;Mirror contact 1 NC IEC 60947-4-1;mechanically linked 1 NO + 1 NC IEC 60947-5-1
Mounting Rail Plate
Special Features Without built-in bidirectional peak limiting diode suppressor
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1472983&lang=en-us
GTIN 03389110436976
Item Type Contactor
Cross Reference Products Schneider LC1D65F7|Schneider LC1D65G7|Siemens FMC1|Telemecan LC1D65F7|Telemecan LC1D65G7
