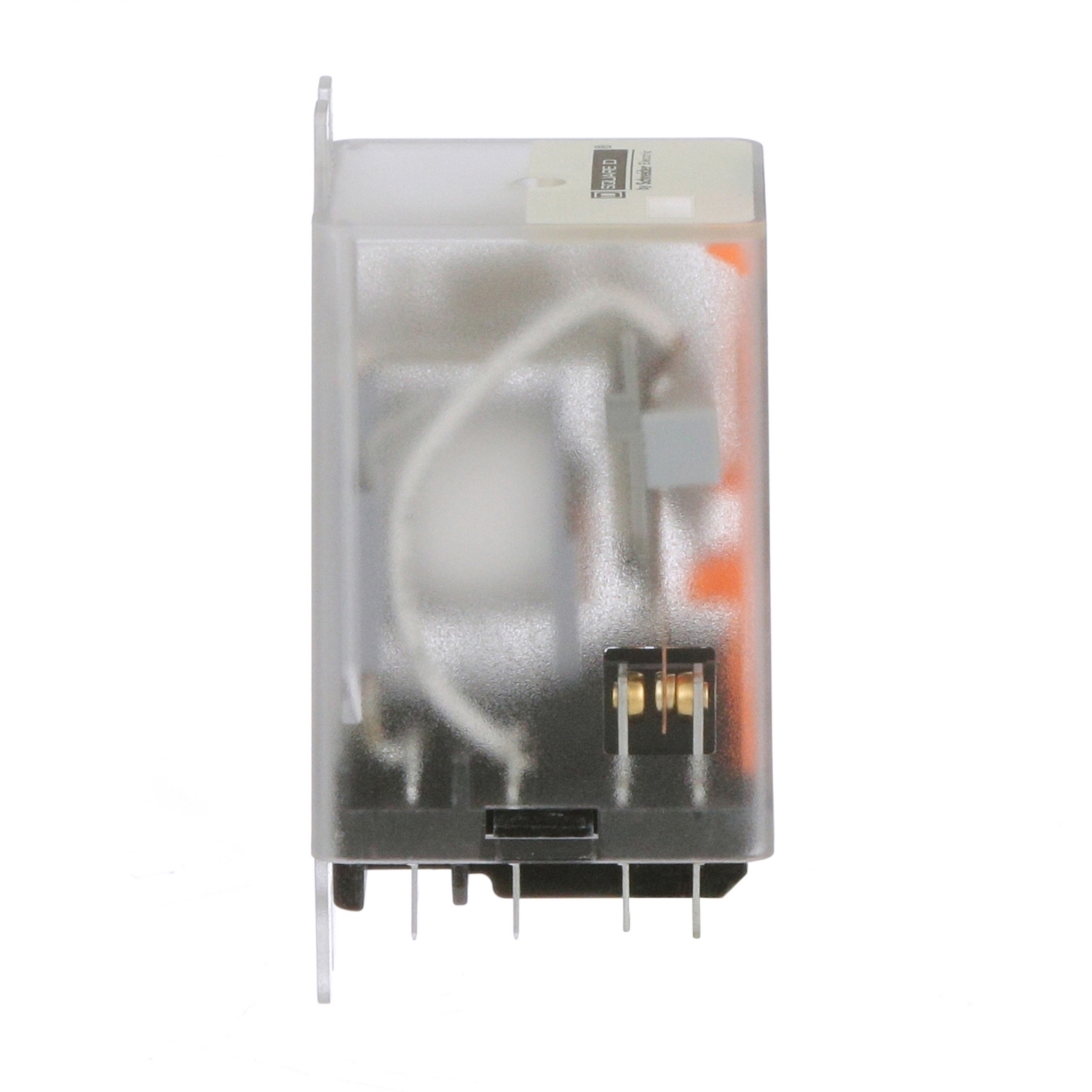

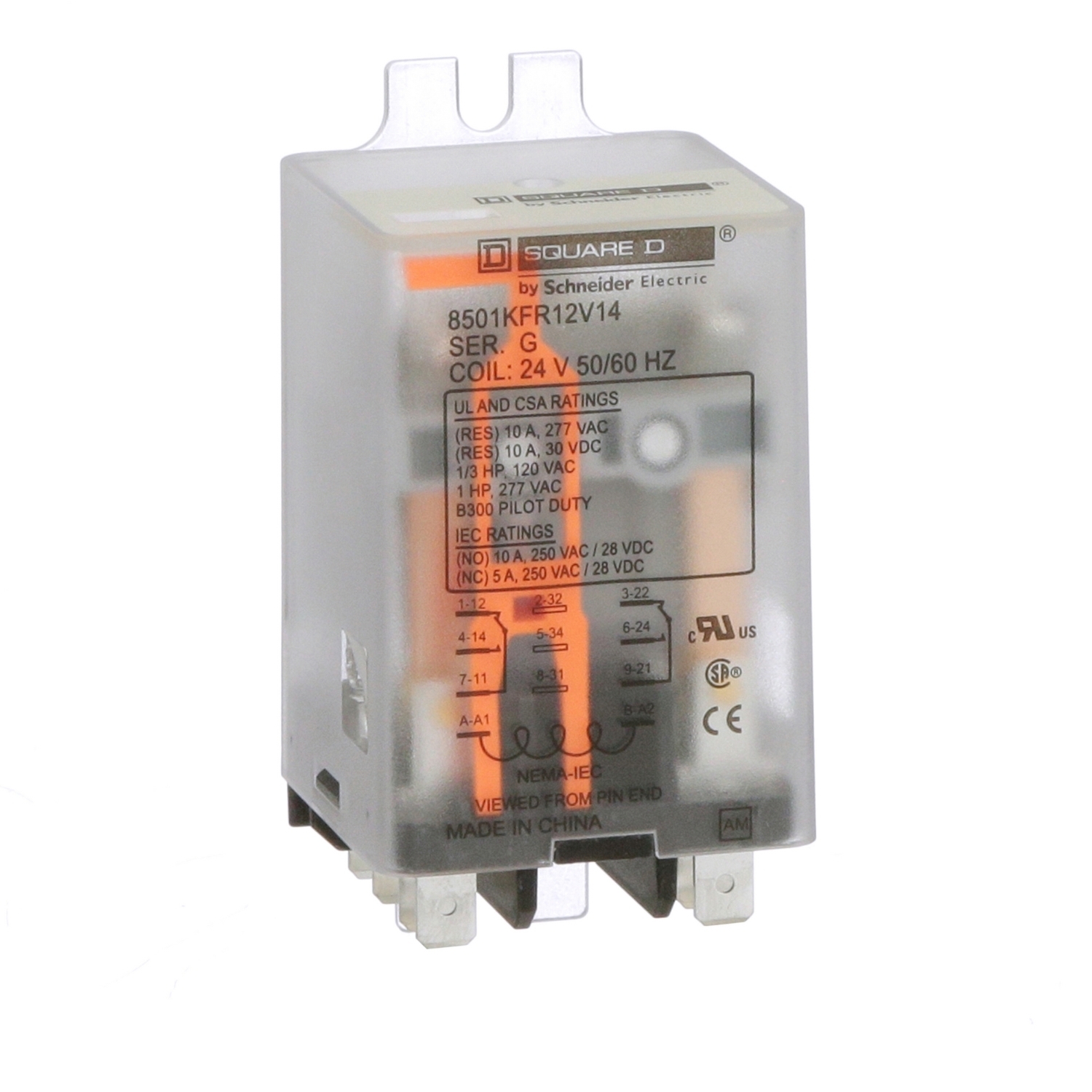

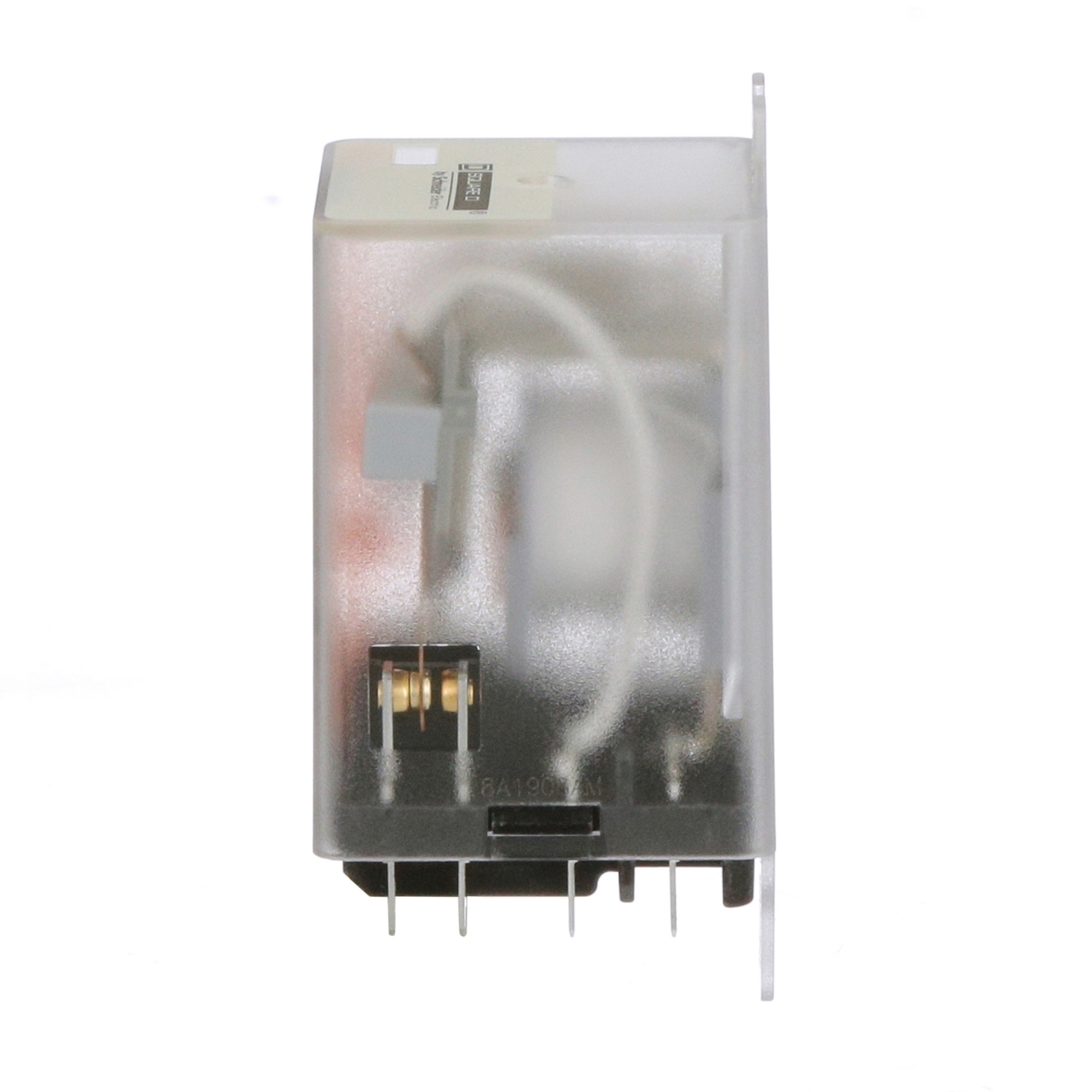

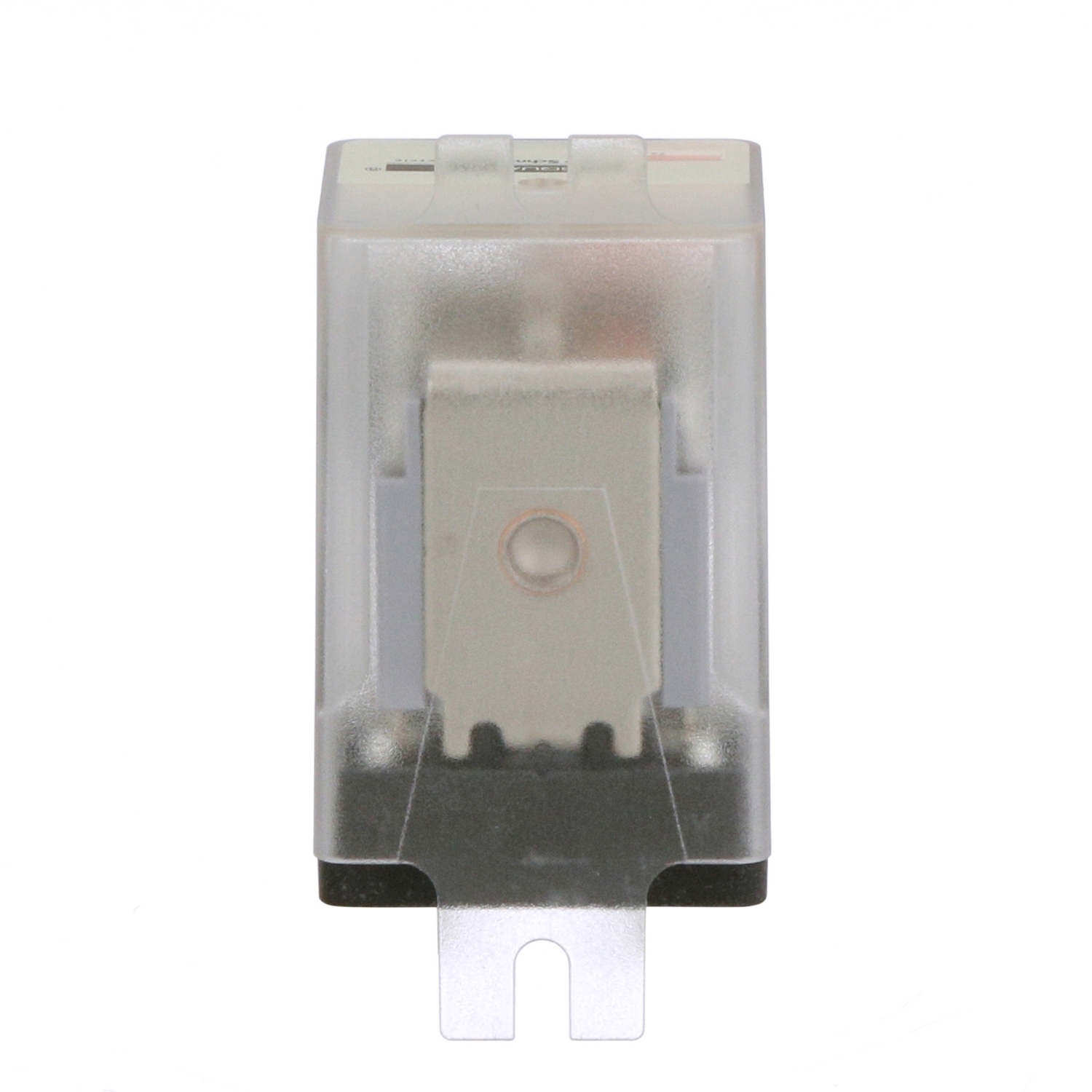

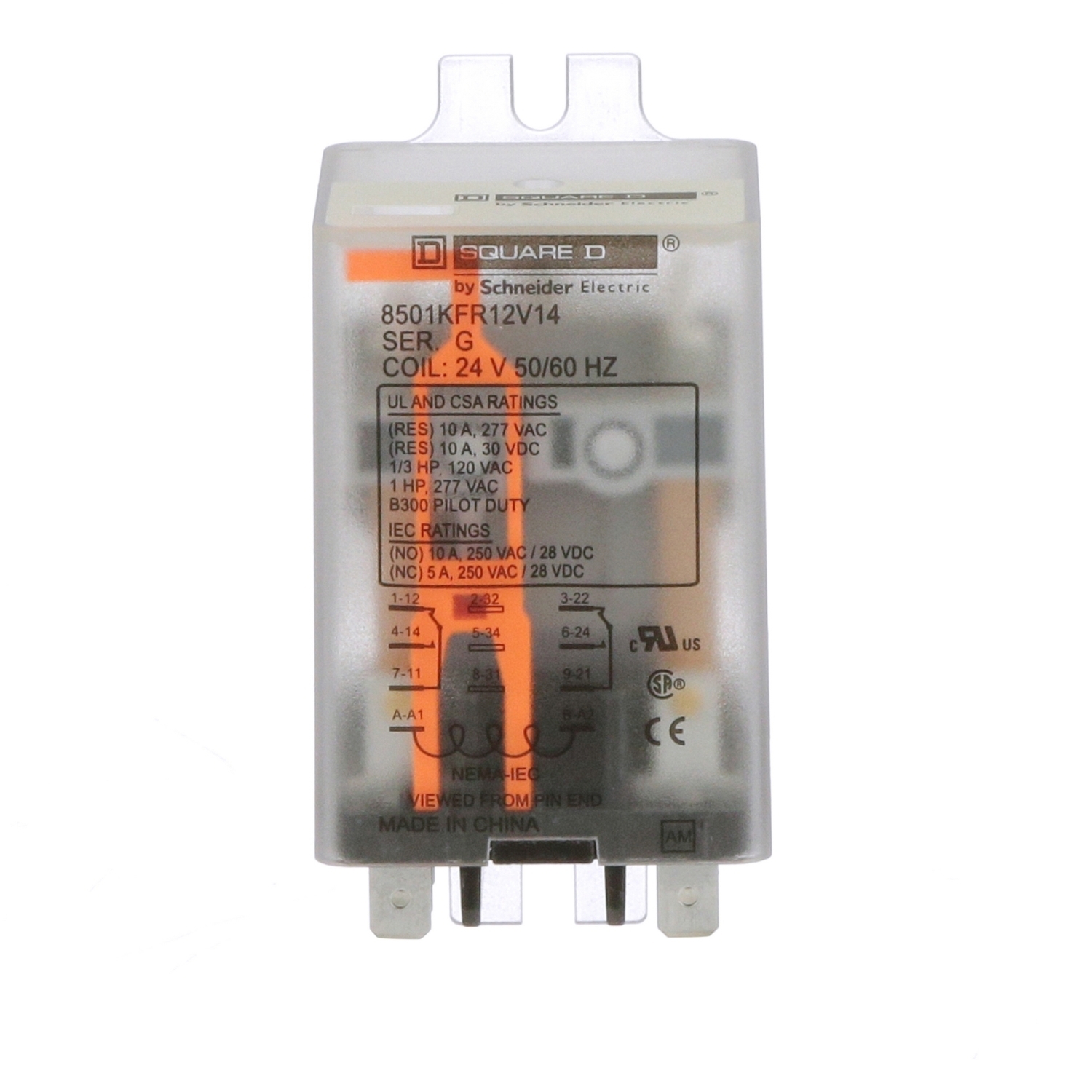

8501KFR12V14 Type K Universal Plug-In Relay, 10 A, 2CO 2 Form C DPDT Contact, 300 V AC/30 V DC V Coil
- MFR:
- Schneider Electric
- MFR #:
- 8501KFR12V14
- UPC:
- 785901317425
- Item #:
- 1164190
8501KFR12V14 Type K Universal Plug-In Relay, 10 A, 2CO 2 Form C DPDT Contact, 300 V AC/30 V DC V Coil
- MFR #:
- 8501KFR12V14
- UPC:
- 785901317425
- Item #:
- 1164190
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$34.69
each
8501KF universal relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be flange mounted into a panel. This flange mounted relay has DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KF relays are UL component recognized and CSA certified.
Manuals and Documentation
| Catalog Number | 8501KFR12V14 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | China |
| Made in USA | No |
| Mounting | Flange |
| Special Features | Without test button;No indicator |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421969143&lang=en-us |
| UPC | 785901317425 |
| GTIN | 00785901317425 |
| Item Type | Relay;General purpose;DPDT |
