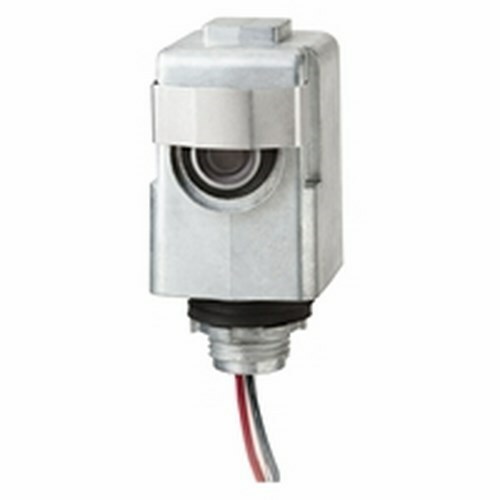

K4421M K4100 Stem Mounting Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Box/Fixture Mount, Polycarbonate
- MFR:
- Intermatic
- MFR #:
- K4421M
- UPC:
- 078275105997
- Item #:
- 116395
K4421M K4100 Stem Mounting Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Box/Fixture Mount, Polycarbonate
- MFR #:
- K4421M
- UPC:
- 078275105997
- Item #:
- 116395
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$20.85
each
These photocontrols install on standard outdoor light fixtures and electrical boxes with 1/2"-14 NPSM thread or 7/8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.
Manuals and Documentation
| Catalog Number | K4421M |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Dusk to Dawn Lighting Control |
| Connection | Color Coded Lead |
| Frequency Rating | 50/60 HZ |
| Mounting | Stem Mount |
| Sensitivity | 1-5 FC ON, 3-15 FC OFF |
| Sensor | Thermal Type Photo Control (Cadmium Sulfide) |
| Special Features | Features: Cadmium Sulfide Photocell, Sonic-Welded Polycarbonate Housing, 6 IN Wire Leads, Light Level Slide Adjustment |
| Standard | UL Recognized, CSA, C/UL Recognized, Title CA 20 Listed, California Title 24 Compliant |
| Supply Voltage | 120 VAC |
| UPC | 078275105997 |
| GTIN | 00078275105997 |
| Item Type | Thermal Type Photo Cell |
| Size | 1-15/16 LENGTH X 1-15/16 WIDTH X 3-3/4 DEPTH IN, 4.9 LENGTH X 4.9 WIDTH X 9.5 DEPTH CM |
| Operating Temperature | -40 to +158 DEG F -40 to +70 DEG C |
