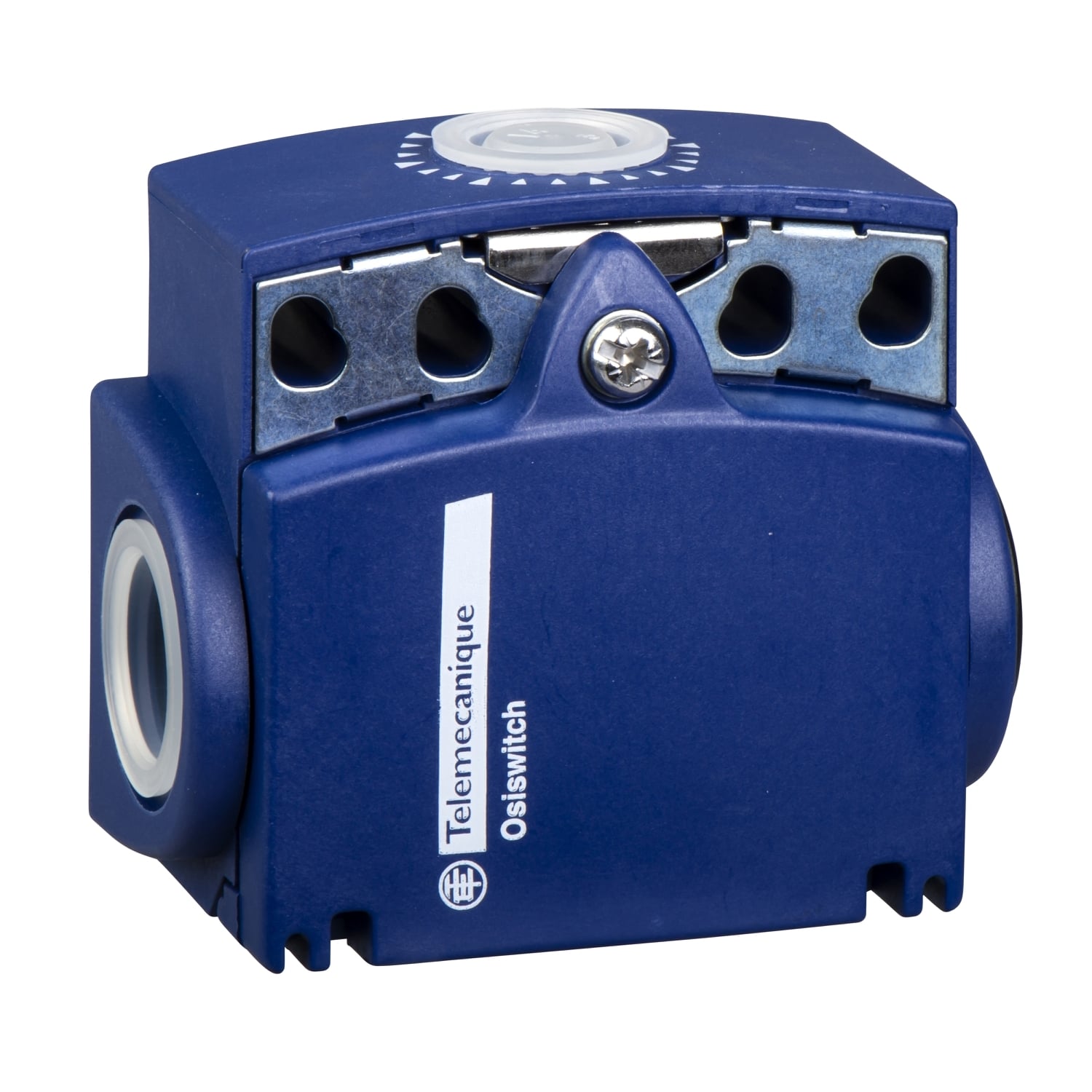

ZCT25G11 OsiSense XC 2-Pole Fixed Switch Body, 1NO-1NC Contact, For Use With XCKT and ZCT Series Standard Compact Limit Switch
- MFR:
- Telemecanique Sensors
- MFR #:
- ZCT25G11
- UPC:
- 785901876502
- Item #:
- 1163921
ZCT25G11 OsiSense XC 2-Pole Fixed Switch Body, 1NO-1NC Contact, For Use With XCKT and ZCT Series Standard Compact Limit Switch
- MFR #:
- ZCT25G11
- UPC:
- 785901876502
- Item #:
- 1163921
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$84.49
each
This ZCT body/contact assembly with connector has standard contacts and a plastic body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts and a Pg 11 cable gland. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Manuals and Documentation
| Catalog Number | ZCT25G11 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Slow-break, break before make |
| Application | XCKT |
| Connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880446&lang=en-us |
| UPC | 785901876502 |
| GTIN | 03389110184198 |
| Item Type | Limit switch body |
| Size | 1.18 |
| Operating Temperature | -25-70 A Degrees C |
