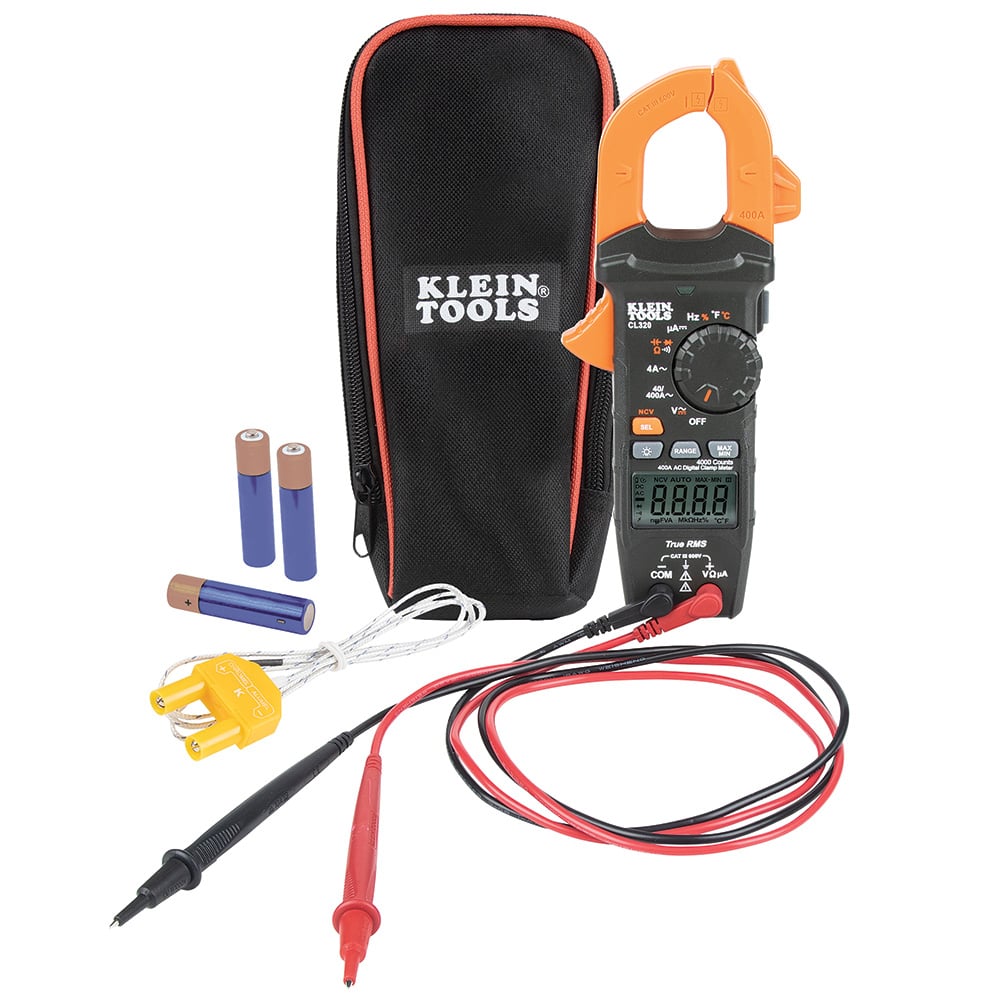

CL320 HVAC Digital Clamp Meter, 600 V AC/DC, 400 A AC, 40 Mohm, 10 Hz to 1 MHz, 1.61 in Jaw, Backlit LCD Display
- MFR:
- Klein Tools
- MFR #:
- CL320
- UPC:
- 092644692864
- Item #:
- 1162093
CL320 HVAC Digital Clamp Meter, 600 V AC/DC, 400 A AC, 40 Mohm, 10 Hz to 1 MHz, 1.61 in Jaw, Backlit LCD Display
- MFR #:
- CL320
- UPC:
- 092644692864
- Item #:
- 1162093
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$114.98
each

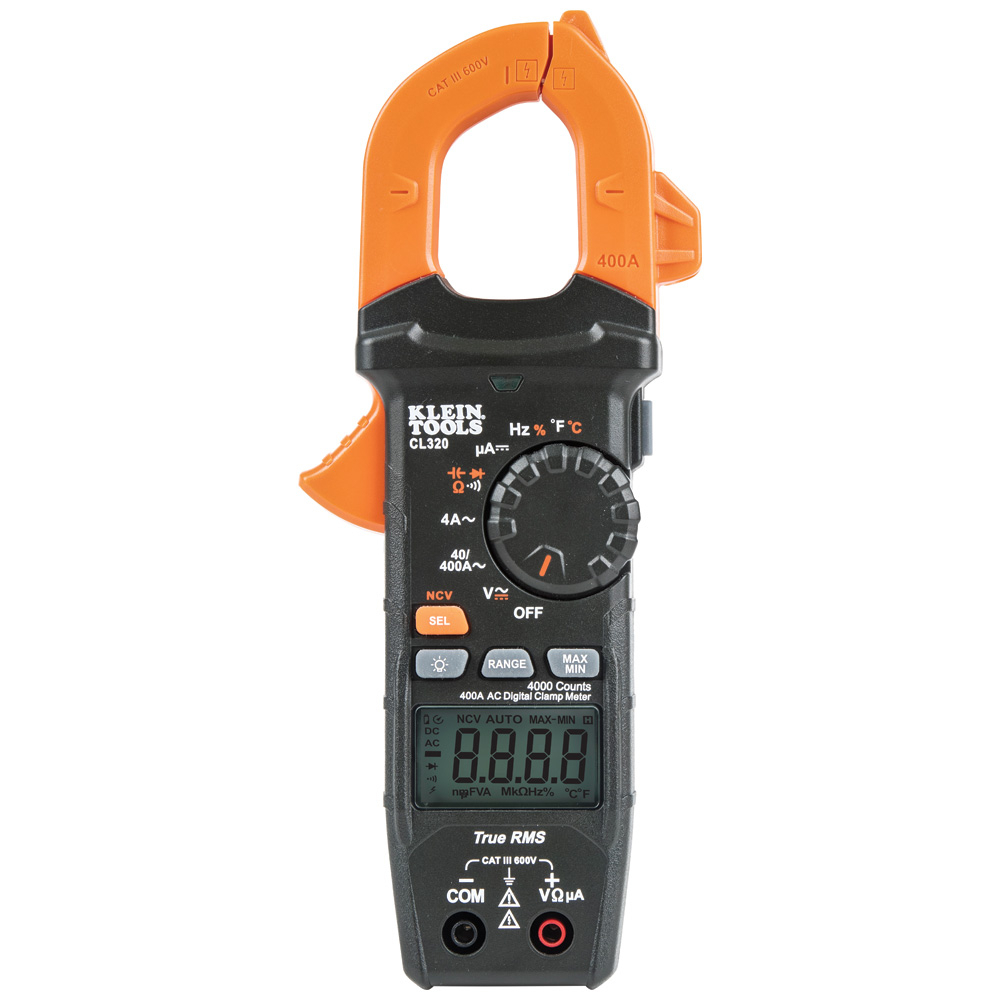

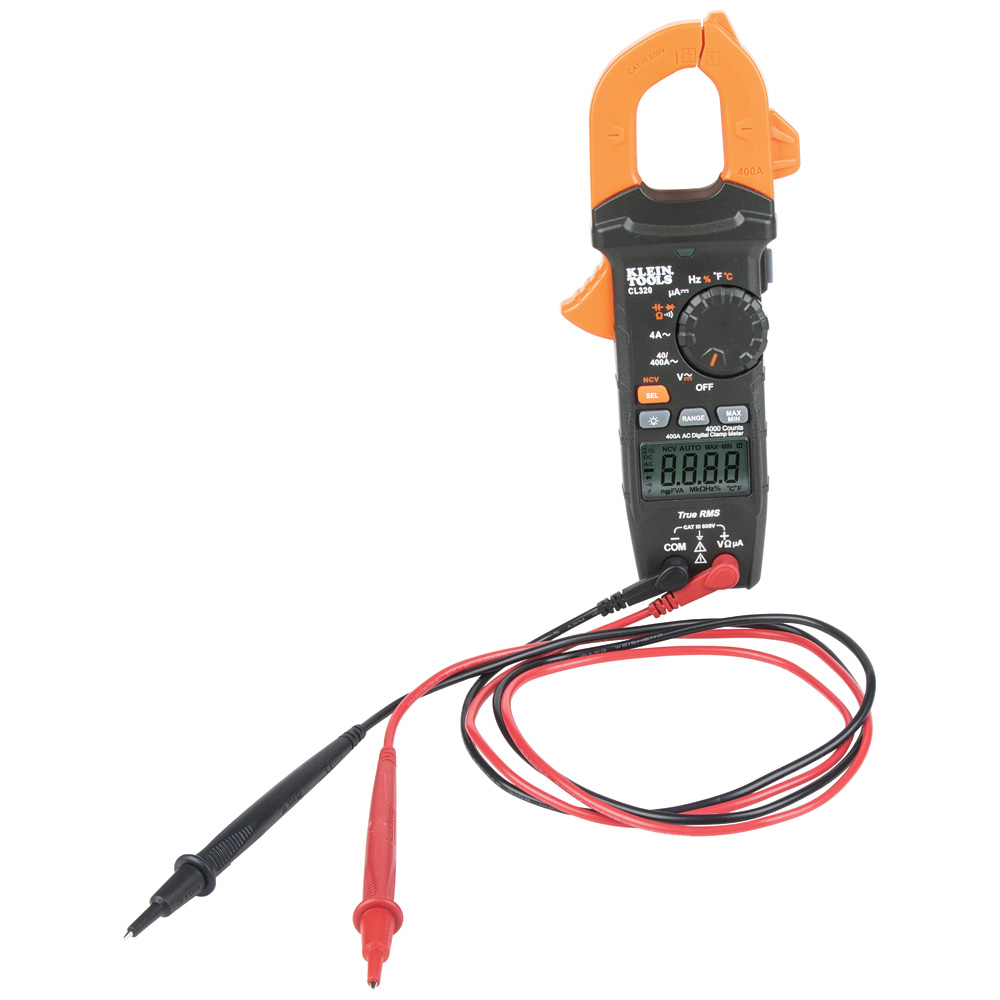

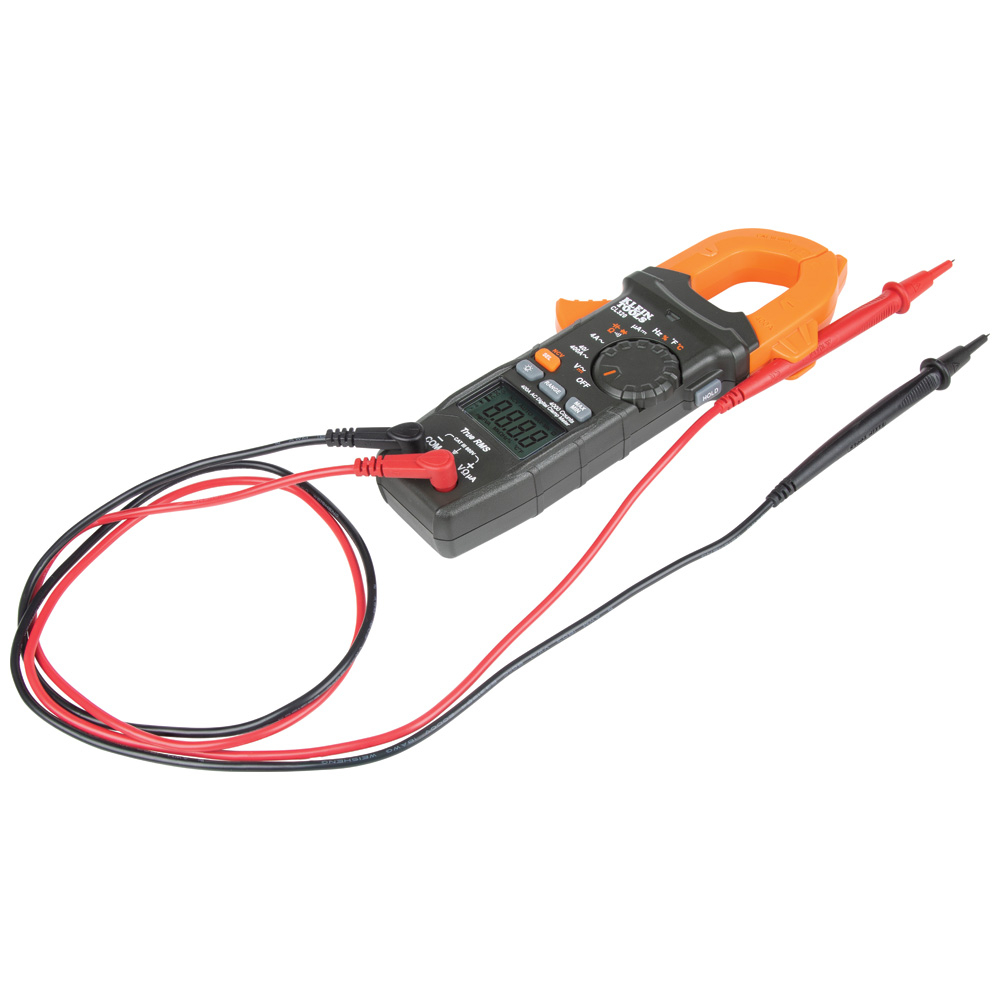

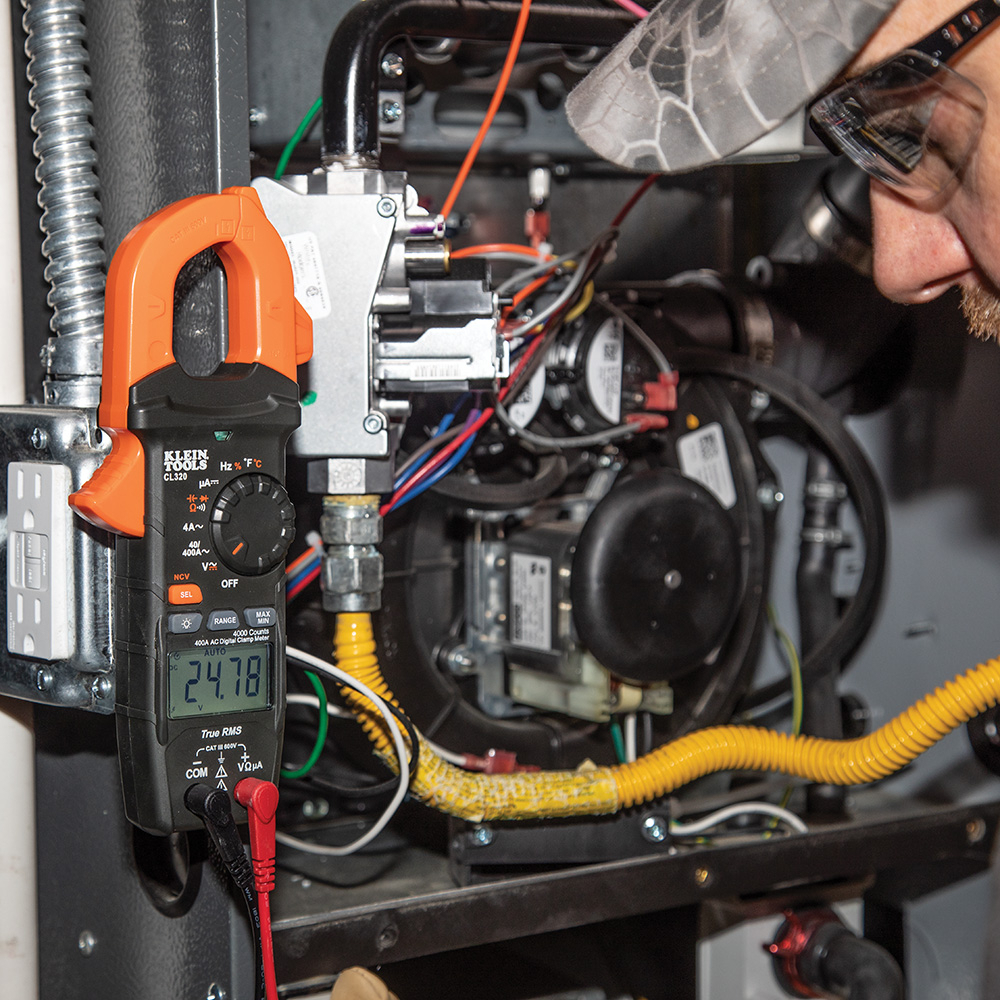

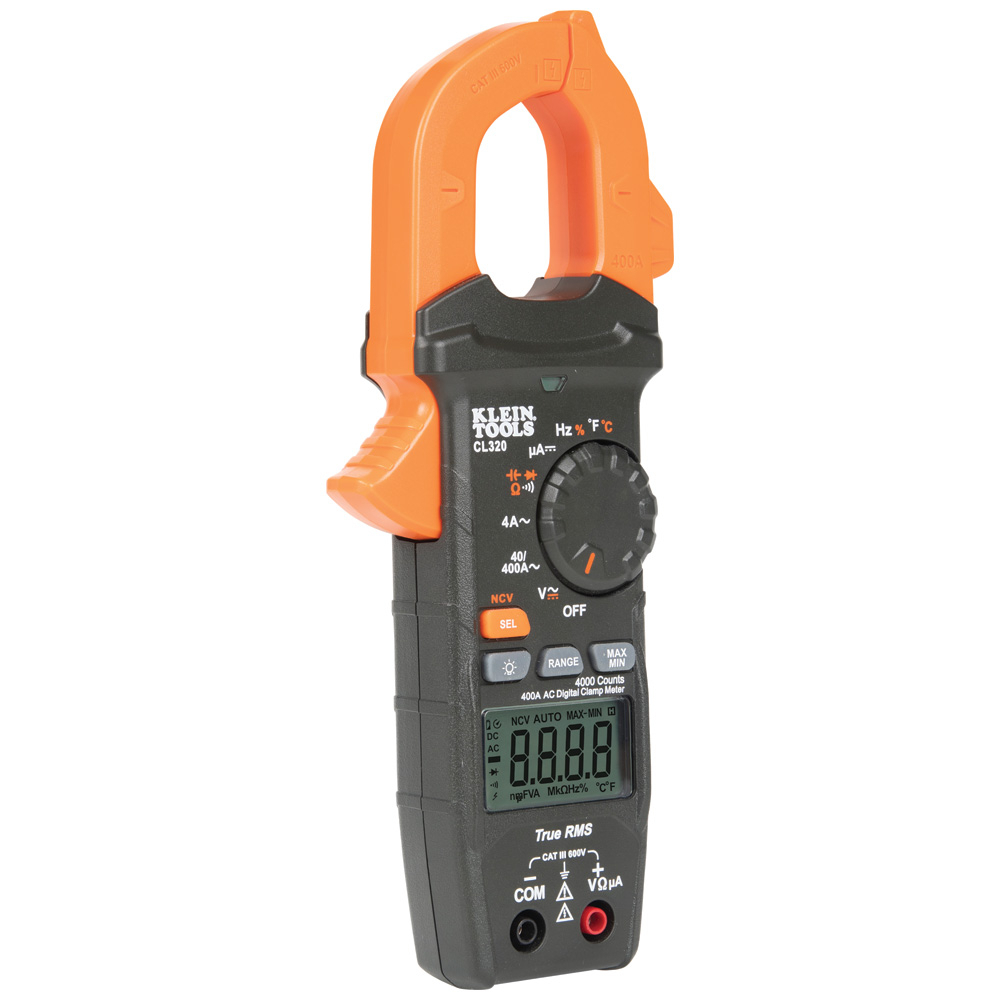

Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements Diode Test to troubleshoot malfunctioning diodes Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.
Manuals and Documentation
Features

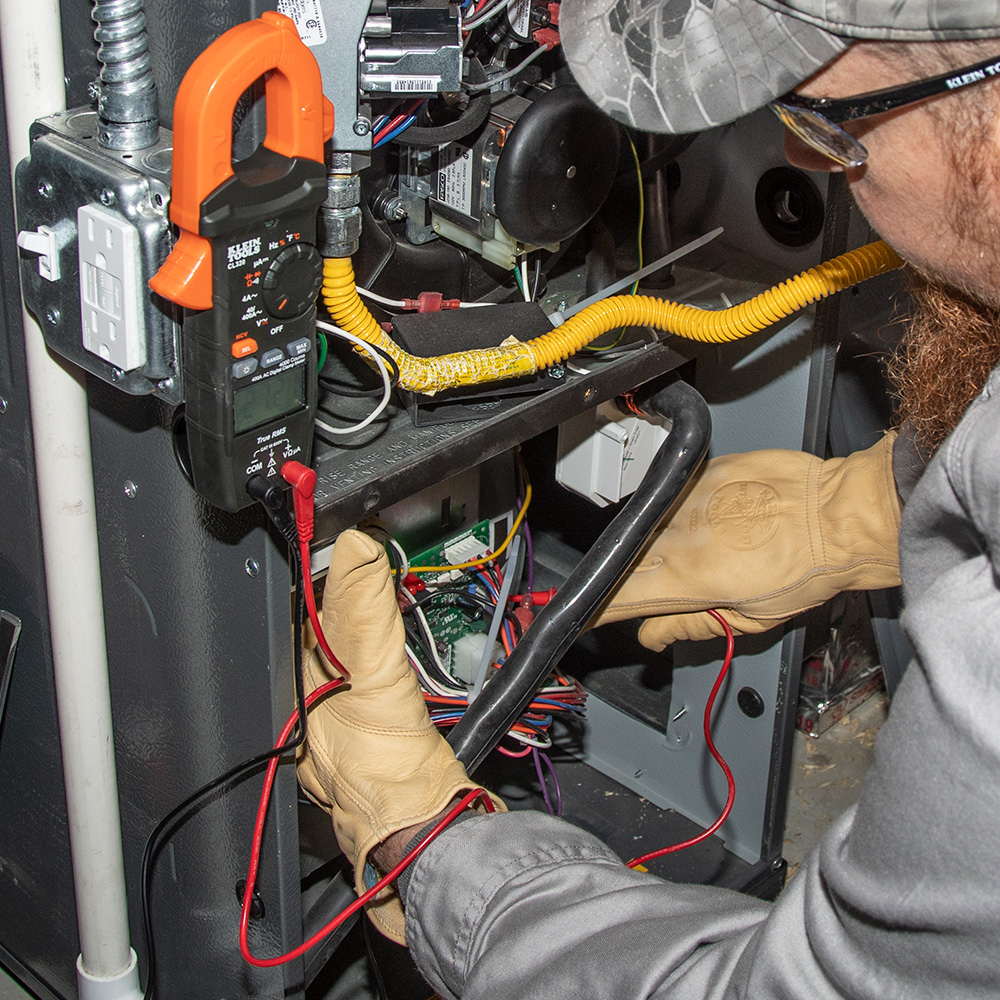

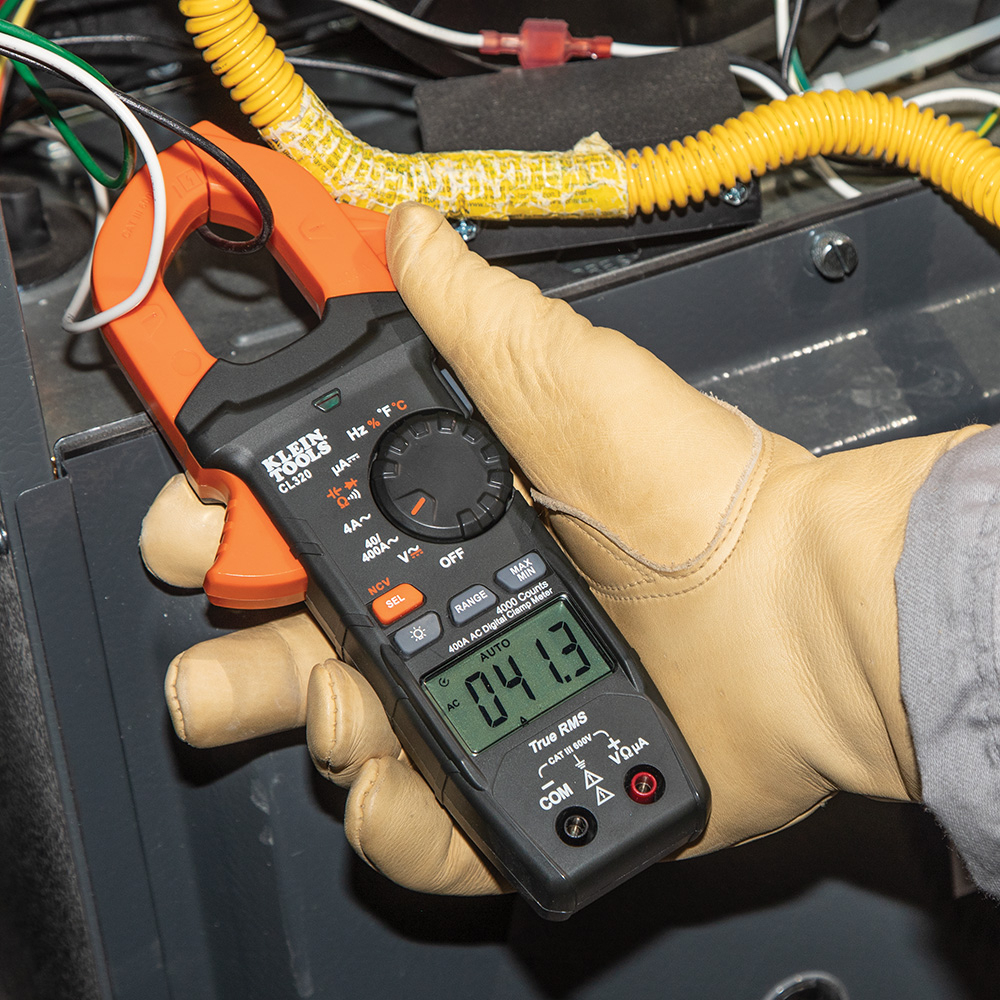

- Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.
| Catalog Number | CL320 |
| Manufacturer | Klein Tools |
| Brand | Klein Tools |
| Country of Origin | China |
| Made in USA | No |
| Application | Measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamp, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple |
| Display | 4000 Count Backlit LCD |
| Special Features | Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; HVAC Applications |
| Standard | CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified |
| UPC | 092644692864 |
| GTIN | 00092644692864 |
| Item Type | HVAC TRMS Clamp |
