SQUARE D

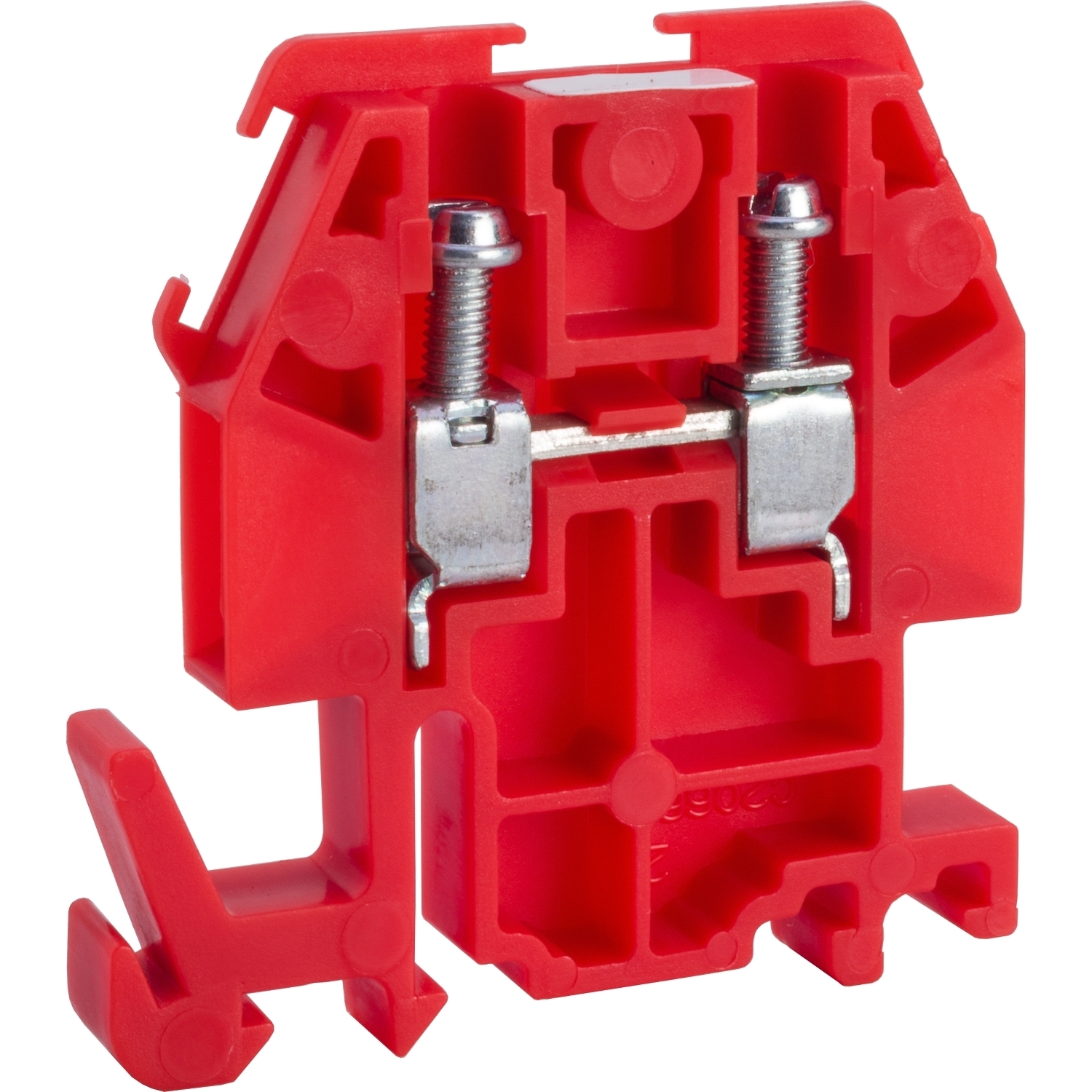

9080GMR6 Type G Fingersafe Terminal Block, 600 V AC/DC, 30 A, 22 to 10 AWG Cu Wire, DIN Rail Mount

MFR:
Schneider Electric
MFR #:
9080GMR6
UPC:
785901743224
Item #:
115819

Availability

Location Available Qty
Available Available to Order
$3.38 each

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 or 2 #16 AWG, 1 or 2 #18 AWG, 1 to 5 #20 AWG or 1 to 8 #22 AWG wires. The nylon block is molded in red. This block is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.

Manuals and Documentation
Catalog Number 9080GMR6
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372463&lang=en-us
UPC 785901743224
GTIN 00785901743224
Width 1.72
Width UOM Inch
Height 1.82
Height UOM Inch
Depth 0.235 IN
