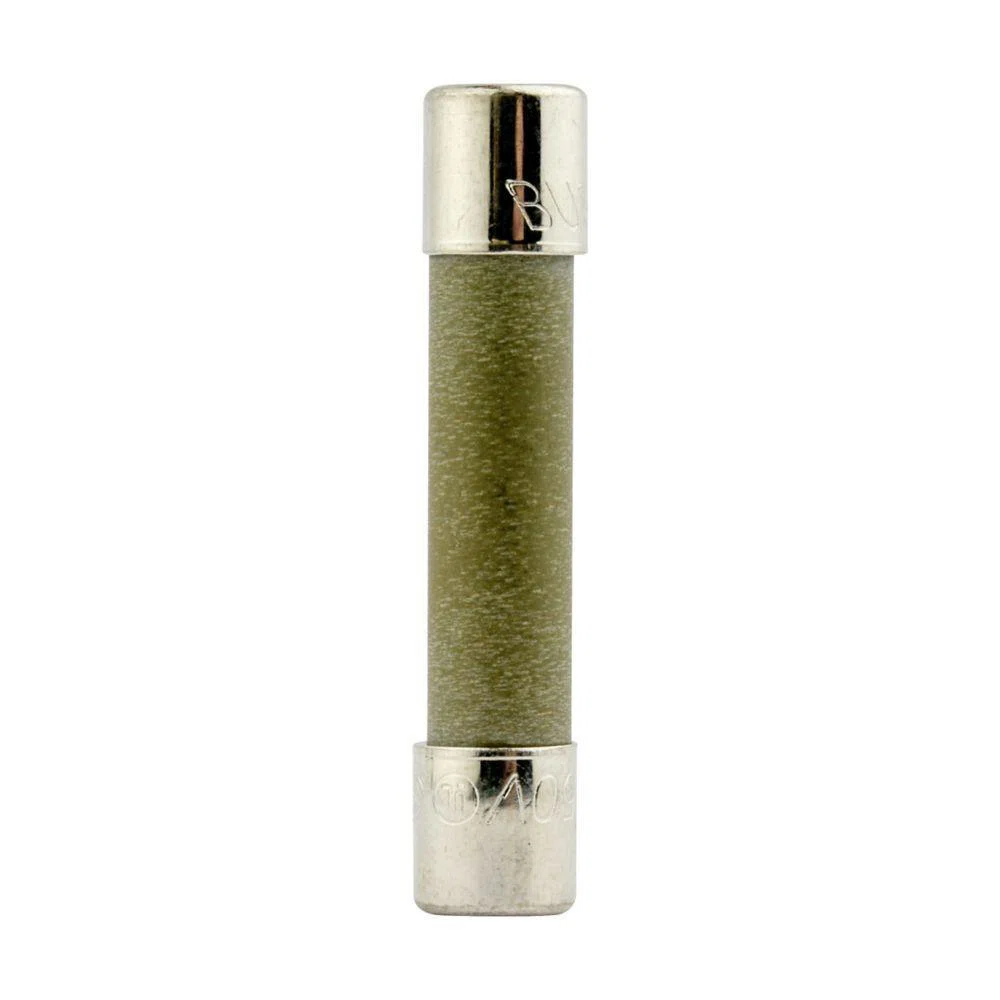

Bussmann, MDA-1/4-R, Time Delay Fuse, Small Dimension, Series: MDA, Non-Indicating, Non-Rejection, 0.25 A, 250 V AC, 35 A/10 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body
Manuals and Documentation
Features
- Ceramic body for higher amp/volt ratings
- Inventory consolidation by replacing MDL fuses allows for reduced SKU investment and minimizing potential for misapplying fuse
- 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- Ceramic tube, nickel plated brass end caps construction
- 60 min maximum at 135% of ampere rating, 120 s maximum at 200% of ampere rating response time
| Manufacturer Part Number | MDA-1/4-R |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712645164 |
| Country Of Origin | CN |
| Amperage Rating | 0.25 A |
| Material | Ceramic |
| Mounting Type | Holder |
| Series | MDA |
| Type | Small Dimension |
| Voltage Rating | 250 V AC |
| Alternative Part Number | 9383657 | 9489745 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | RoHS Compliant | CE Certified | Standard 248-14 | UL Listed | CSA File No. 53787 | RoHS 2011/65/EU | UL 248-14, Guide JDYX, File No. E19180 | CSA Class No. 1422-01 |
| Application | Electronic Circuit Applications |
| Body Size | 1/4 in Dia x 1-1/4 in L |
| Body Type | Cylindrical |
| Element | Single |
| Indicating Non Indicating | Non-Indicating |
| Interrupt Rating | 35 A/10 kA |
| Rejection Non Rejection | Non-Rejection |
| Response Time | 60 min, 120 s |
| Terminal Type | Ferrule |
