Hubbell Wiring Device - Kellems

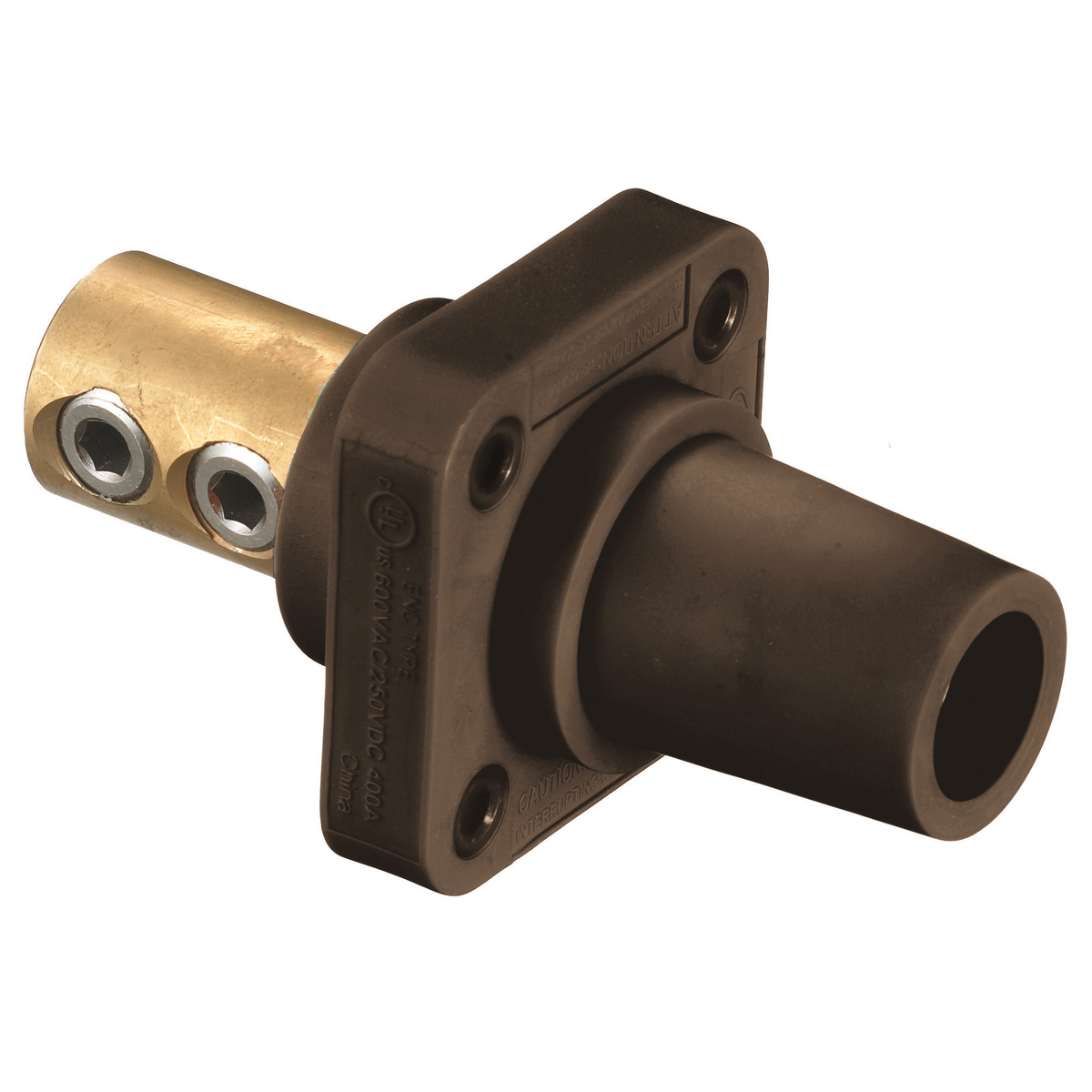

HBLFRBN 16 Series 1-Pole Female Straight Single Pole Receptacle, 600 V AC/250 V DC, 400 A, 4 to 4/0 AWG Wire, Screw Terminal Connection

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBLFRBN
UPC:
783585112619
Item #:
115637

Availability

Location Available Qty
Available Available to Order
$73.95 each

Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Manuals and Documentation
Catalog Number HBLFRBN
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 400
Application High Ampacity Connections
Color Brown
Connection Screw Terminals
Material Elastomer / Elastomeric
Mounting Mounting Holes
Number of Poles 1
Number of Wires 1-Wire
Phase 1
Special Features Standard
Standard National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
UPC 783585112619
GTIN 00783585112619
Item Type Receptacle
Size Standard Sized Product
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 600 AC, 250 DC Max
Wattage 240,000
Wire Size #4 AWG to #4/0 AWG
Cross Reference Products 16R22-UH
