Discontinued
Square D

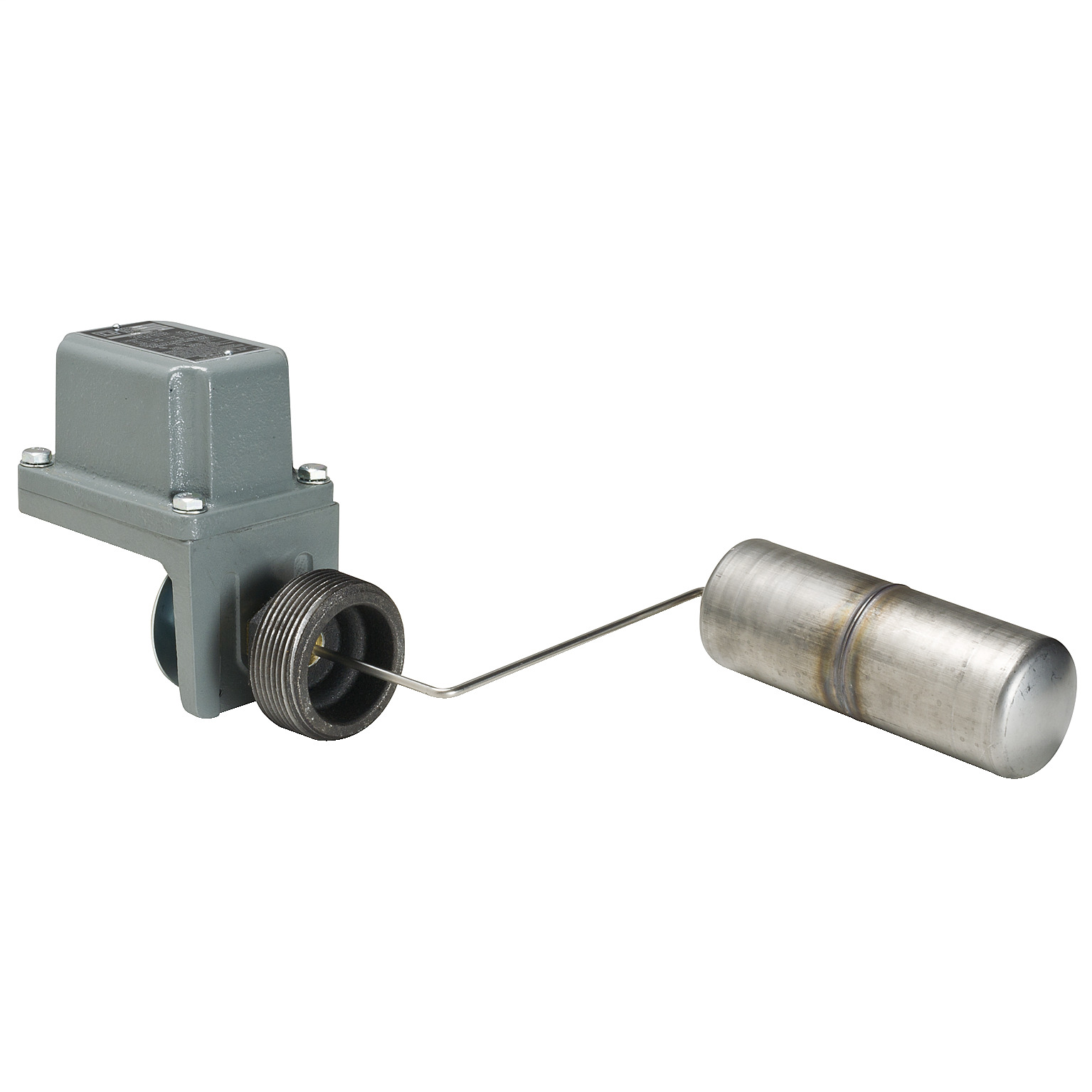

closed tank - NEMA 7/9 - screw-in bushing - 2 NC DPST-DB contacts

MFR:
Schneider Electric
MFR #:
9037HR35
UPC:
785901746782
Item #:
115590

Availability

Location Available Qty
Available Available to Order

closed tank - NEMA 7/9 - screw-in bushing - 2 NC DPST-DB contacts

Manuals and Documentation
Catalog Number 9037HR35
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Action CONTACTS CLOSE ON LIQUID RISE
Application 1.5 KW 2 HP)115 V AC, 1 PHASE-2.2 KW 3 HP)115 V AC, 3 PHASE-2.2 KW 3 HP)230 V AC, 1 PHASE-3.7 KW 5 HP)230 V AC, 3 PHASE-0.75 KW 1 HP)460 V AC, 3 PHASE-0.75 KW 1 HP)475 V AC, 3 PHASE-0.18 KW 0.25 HP)32 V DC-0.37 KW 0.5 HP)115 V DC-0.37 KW 0.5 HP)230 V DC,CLOSED TANK,FOR CLOSED TANK,LIQUID LEVEL CONTROL,POWER CIRCUIT
Connection 4 TERMINALS,SCREW-CLAMP TERMINALS 10 AWG
Enclosure NEMA 7/9
Mounting Screw
Number of Poles 2
Special Features 20 A CARTRIDGE FUSE GG,SET OF 1,WITHOUT
Standard CSA FILE LR26817-UL LISTED FILE E12443,NEMA 7/9 UL 698,UL 508-CE
UPC 785901746782
GTIN 00785901746782
Item Type FLOAT SWITCH
Temperature Rating -22-220 A Degrees F
Voltage Rating 575VAC
