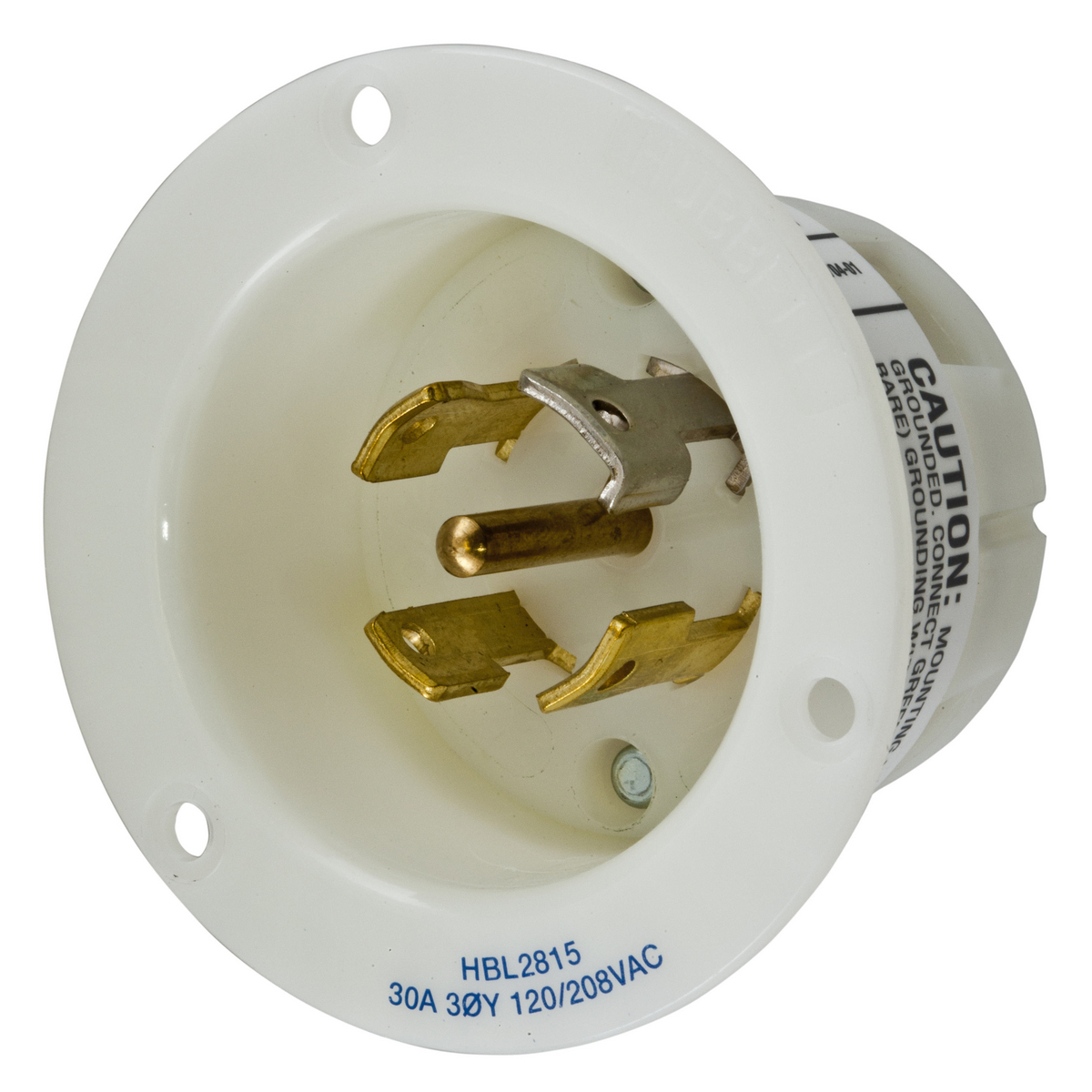

HBL2815 3-Phase Standard Screw Mount Flanged Inlet, 120/208 V AC, 30 A, 4 Poles, 5 Wires, White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2815
- UPC:
- 783585039671
- Item #:
- 115213
HBL2815 3-Phase Standard Screw Mount Flanged Inlet, 120/208 V AC, 30 A, 4 Poles, 5 Wires, White
- MFR #:
- HBL2815
- UPC:
- 783585039671
- Item #:
- 115213
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$100.31
each
Manuals and Documentation
| Catalog Number | HBL2815 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 30 |
| Application | Extra Heavy Duty Industrial |
| Color | White |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 1 |
| Number of Poles | 4 |
| Number of Wires | 5-Wire |
| Phase | 3 |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UPC | 783585039671 |
| GTIN | 00783585039671 |
| Item Type | Flanged Inlet |
| Size | 3.06 in x 3.06 in x 2.27 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 3 Phase WYE 120/208 |
| Wattage | 6,240 W |
| Wire Size | #16 AWG to #8 AWG |
