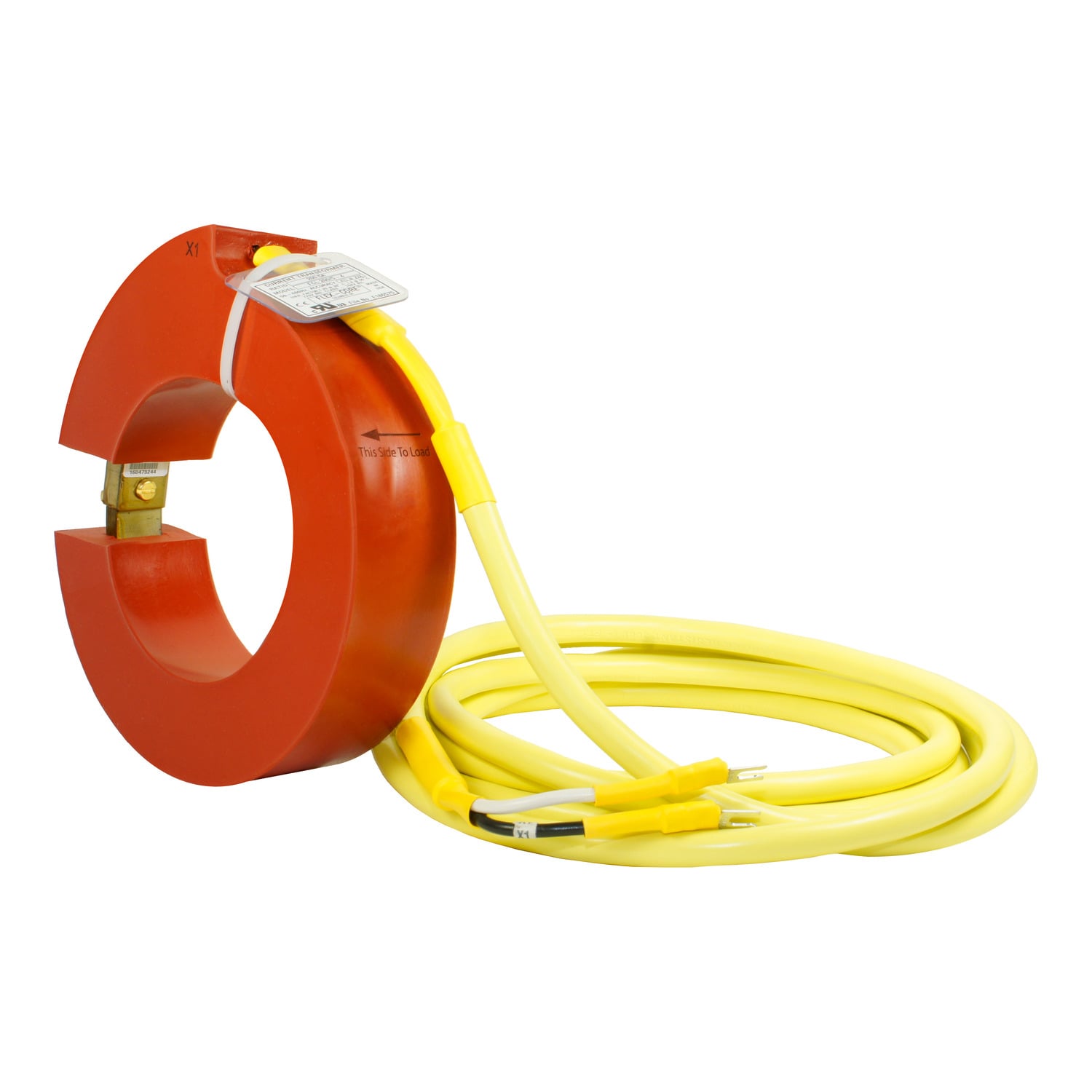

AccuSine PCSPCTFCL120056 Round Split Core Current Transformer, 1200:5 Current Ratio, 1200 A Primary, 5 A Secondary, <720 V AC, 50 to 400 Hz
- MFR:
- Schneider Electric
- MFR #:
- PCSPCTFCL120056
- Item #:
- 1150537
AccuSine PCSPCTFCL120056 Round Split Core Current Transformer, 1200:5 Current Ratio, 1200 A Primary, 5 A Secondary, <720 V AC, 50 to 400 Hz
- MFR #:
- PCSPCTFCL120056
- Item #:
- 1150537
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,044.92
each
This round split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 1200A and a secondary rating of 5A. The inner diameter of this coil is 152.4mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Manuals and Documentation
| Catalog Number | PCSPCTFCL120056 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Country of Origin | Unknown |
| Made in USA | No |
| Shape | Round |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=424840710&lang=en-us |
| GTIN | 03606480891755 |
| Depth | Outside : 38.1 mm |
| Diameter | Inner 152.4 mm;outer 215.9 mm |
