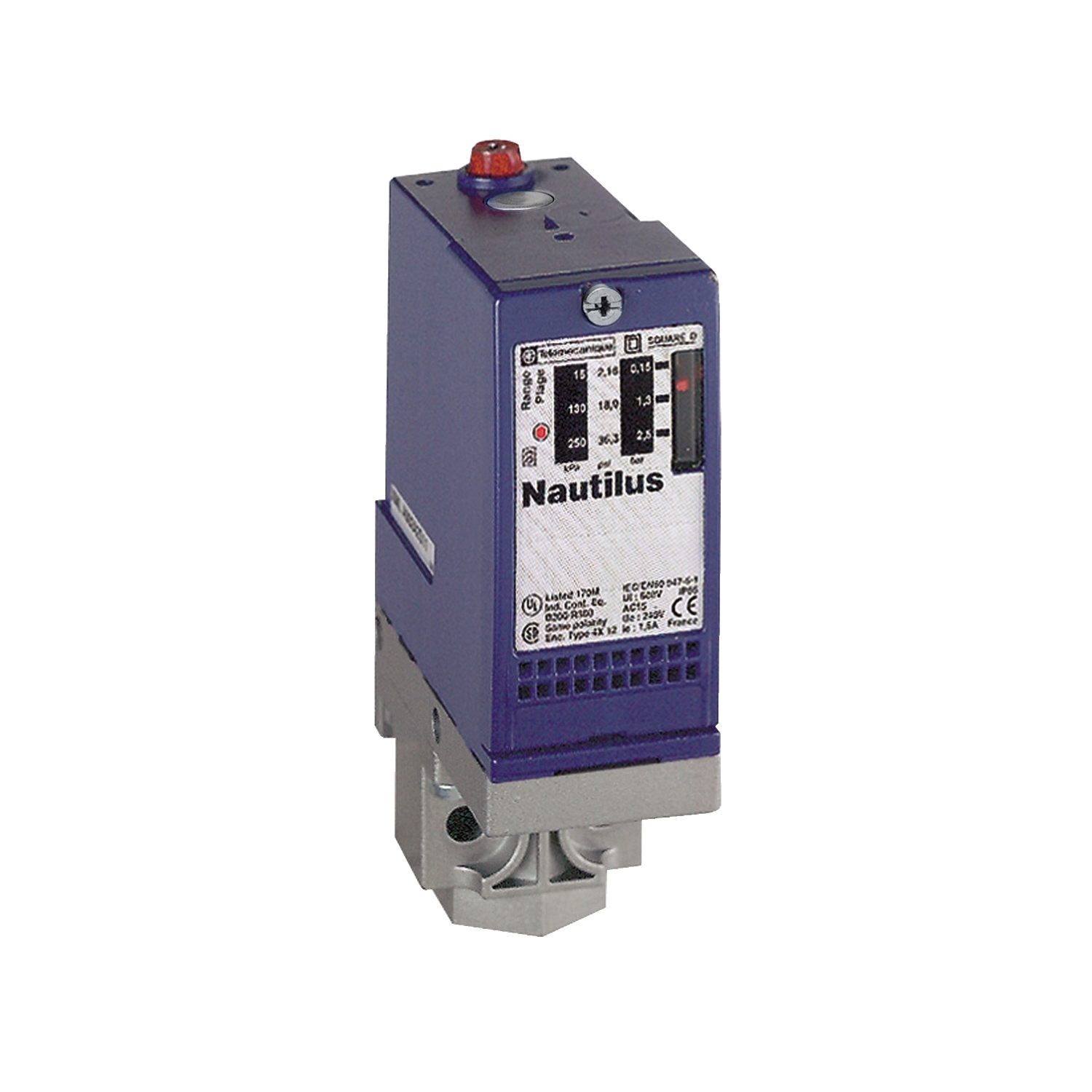

Telemecanique

pressure switch XMLA 160 bar - fixed scale 1 threshold - 1 C/O

MFR:
Telemecanique Sensors
MFR #:
XMLA160D2S12
Item #:
1150292

Availability

Location Available Qty
Available Available to Order
$854.20 each

This XMLA electromechanical pressure switch has a fixed differential for detection of a single threshold and a zinc alloy body with a range scale window. This pressure switch is designed for detection of a single pressure threshold in hydraulic oils up to 160C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 6 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV. It is designed for very high pressures up to 160bar, this makes it ideal for hydraulic presses, water jet cutting machines.

Manuals and Documentation
Catalog Number XMLA160D2S12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Sub Brand XMLA
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application Detection of 1 single threshold;-;Control circuit
Contact Configuration 1 C/O
Enclosure Zinc alloy
Operating Cycles 60 CYC/MN
Process Connection G 1/4 (FEMALE) ISO 228
Special Features IP66 CONFORMING TO EN/IEC 60529,SCREW-CLAMPS TERMINALS 1 X 0.5...2 X 2.5 MM²-1 CONNECTOR ISO M20
Standard CCC-UL-EAC-LROS (LLOYDS REGISTER OF SHIPPING)-BV-CSA,CE-EN/IEC 60947-5-1-CSA C22.2 NO 14-UL 508,IP66 EN/IEC 60529,CLASS I IEC 1140-CLASS I IEC 536-CLASS I NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=861732&lang=en-us
GTIN 03389110751185
Item Type Electromechanical pressure sensor;Electromechanical pressure sensor;Fixed differential
Operating Temperature -25-70 A Degrees C
System Pressure 2320.60
