Telemecanique

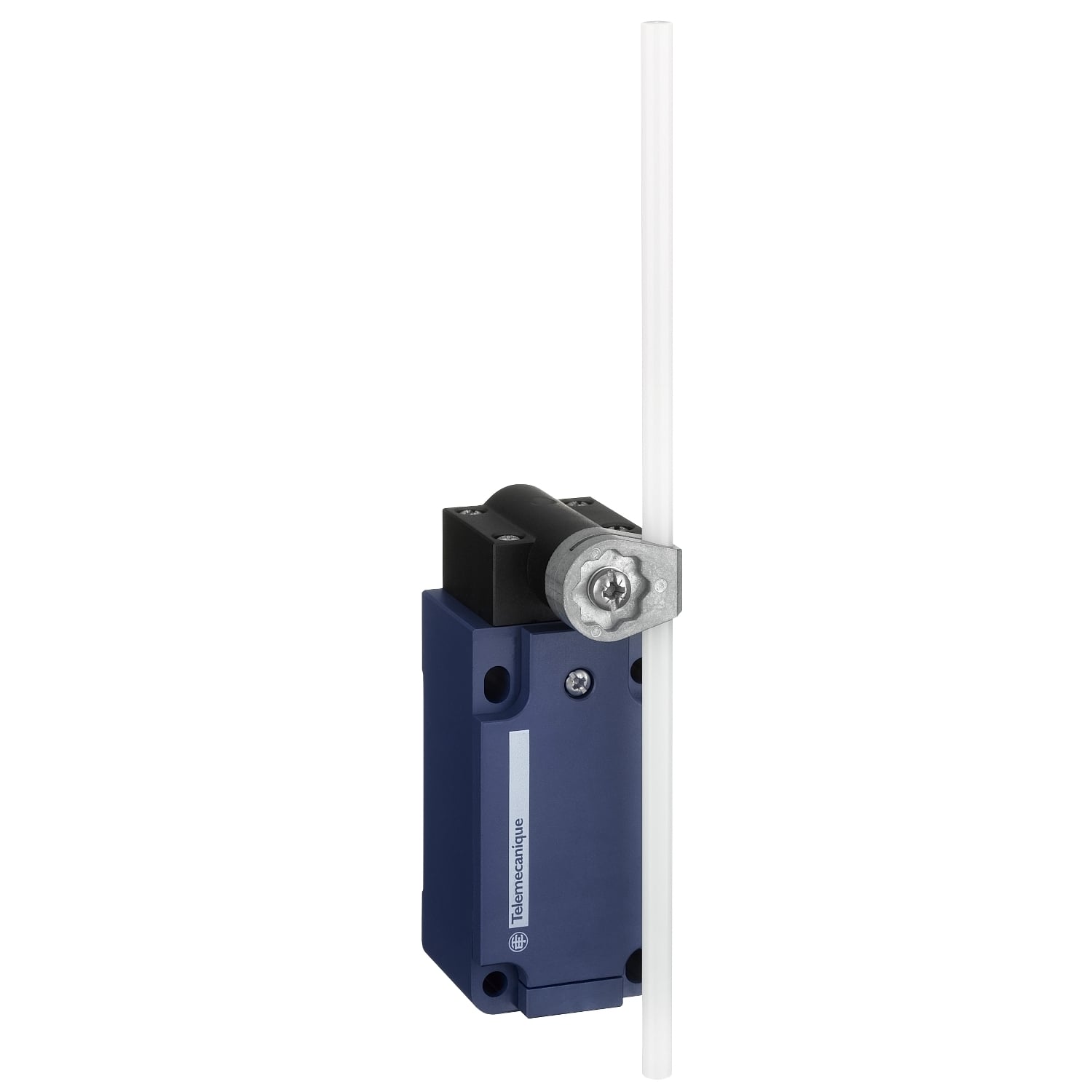

XCKS159H29 OsiSense XC Fixed Rotary Standard Format Limit Switch, 240 V AC, 10 A, 6 mm Thermoplastic Spring Return Round Rod Lever Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKS159H29
Item #:
1144047

Availability

Location Available Qty
Available Available to Order
$92.88 each

This product is an industrial EN 50041 format limit switch with 1 entry tapped M20 x 1.5 for ISO cable gland. It features a plastic, double insulated fixed body and a rotary head, with a round thermoplastic rod lever, diameter 6mm. Contacts: 2-pole NC + NO, snap action.

Manuals and Documentation
Catalog Number XCKS159H29
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Lateral approach, 1 or 2 programmable direction;Snap action;By any moving part
Actuator Spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm
Application CLASSIC
Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Contact Configuration 1 NC + 1 NO
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,PLASTIC
Standard 25 GN 10-500 HZ)IEC 60068-2-6,40 GN 11 MS IEC 60068-2-27,EN 60947-5-1-IEC 60947-5-1-IEC 60204-1-CENELEC EN 50041-CSA C22.2 NO 14-EN 60204-1-UL 508,IK05 EN 50102,IP67 IEC 60529-IP66 IEC 60529,UL-CCC-CSA,CLASS II IEC 61140-CLASS II NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857382&lang=en-us
GTIN 03389110514544
Item Type Limit switch
Size 2.17
Operating Temperature -25-70 A Degrees C
