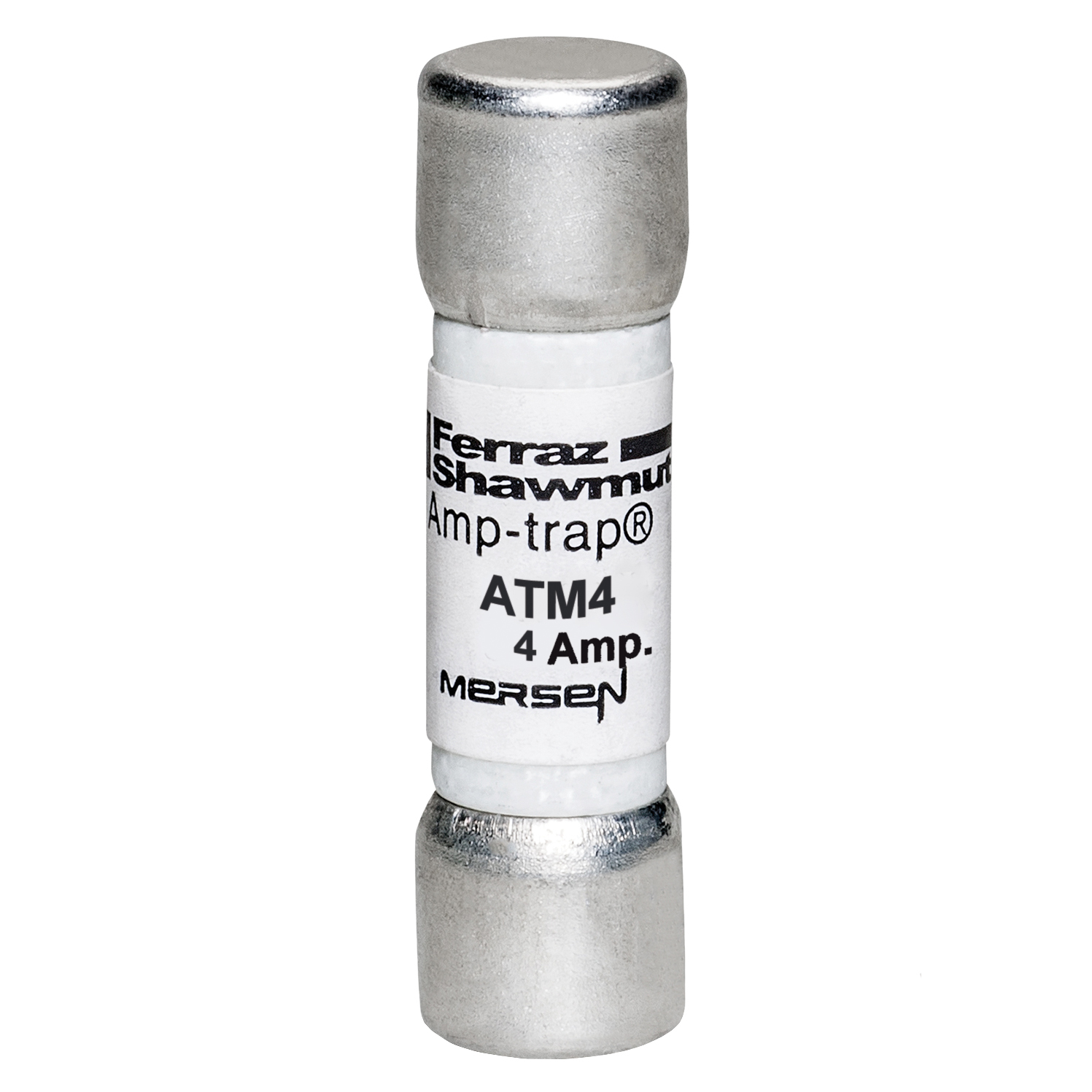

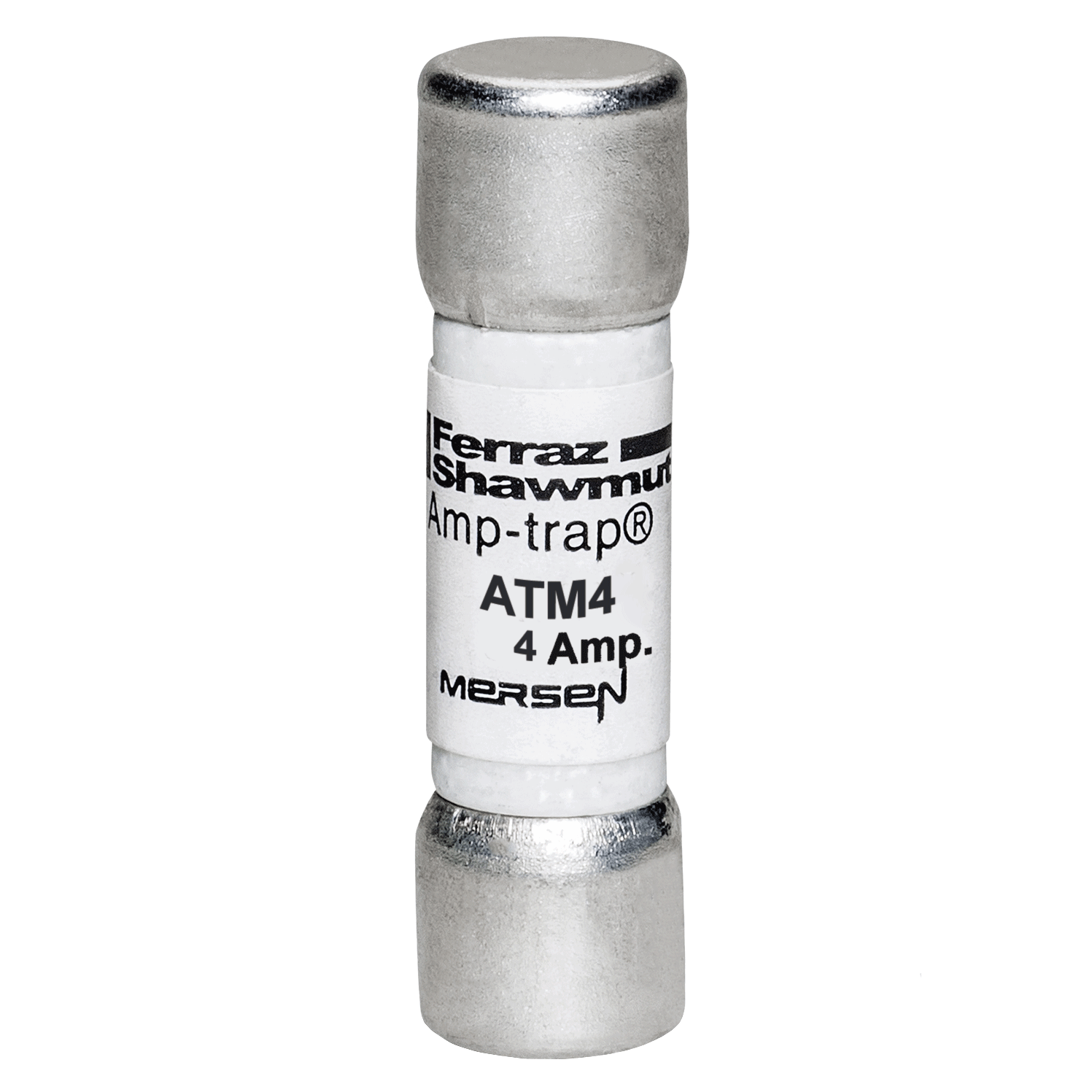

ATM4 Amp-Trap Low Voltage Fast Acting Fuse, 4 A, 600 V AC/DC, 100 kA, Class Midget, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- ATM4
- UPC:
- 782001900748
- Item #:
- 114307
ATM4 Amp-Trap Low Voltage Fast Acting Fuse, 4 A, 600 V AC/DC, 100 kA, Class Midget, Cylindrical Body
- MFR #:
- ATM4
- UPC:
- 782001900748
- Item #:
- 114307
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Fuse ATM - Midget - Fast-Acting 600VAC 600VDC 4A Ferrule Amp-Trap
Manuals and Documentation
| Catalog Number | ATM4 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 4 |
| Application | Supplemental protection of of circuits up to 600VAC and 600VDC with 100kA I.R. |
| Connection | Ferrule |
| Interrupt Rating | 100 KA |
| Mounting | Clip |
| Special Features | For supplemental protection of small motors and transformers Extended ratings for special protection of capacitors and circuits with high inrush currents 600VDC ratings for a wide variety of applications including photovoltaic and solar applications. Can be used with UltraSafe™ fuse holders 1 1/2" x 13/32" (10mm x 38mm) dimensions |
| Standard | UL listed to standard 248-14 (1/10 to 30A) File E33925 DC Listed to UL Standard 248-14 (1/10 to 30A) CSA Certified to Standard C22.2 No. 248.14 (1/10 to 30A) |
| UPC | 782001900748 |
| GTIN | 00782001900748 |
| Item Type | Midget Fuses |
| Size | 1.5 x 0.41 |
| Voltage Rating | 600 |
