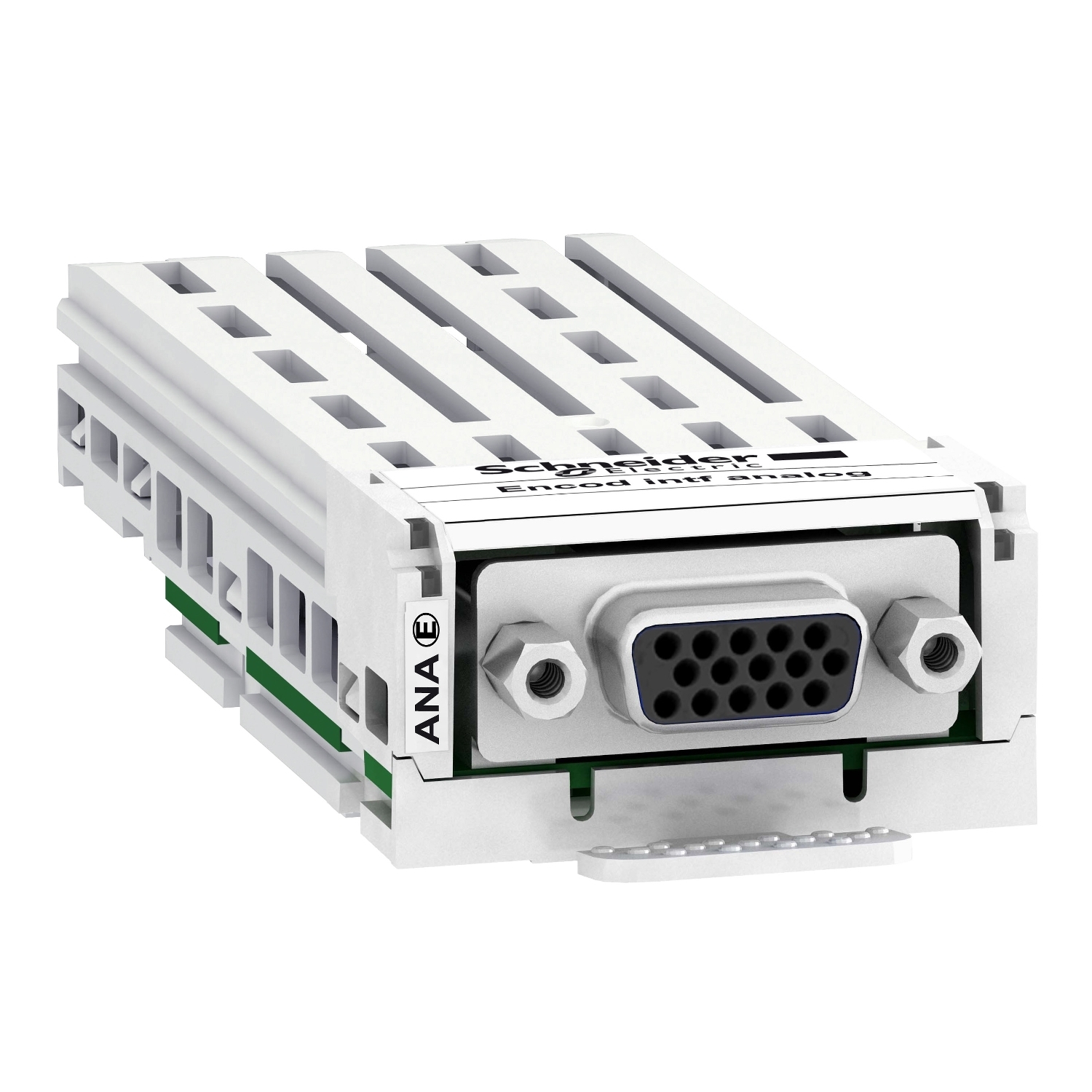

VW3A3422 Altivar Analog Encoder Interface Module, 0.25 A at 12 V DC, 0.1 A at 12 V DC, 0.05 A at 24 V DC Input
- MFR:
- Schneider Electric
- MFR #:
- VW3A3422
- Item #:
- 1142197
VW3A3422 Altivar Analog Encoder Interface Module, 0.25 A at 12 V DC, 0.1 A at 12 V DC, 0.05 A at 24 V DC Input
- MFR #:
- VW3A3422
- Item #:
- 1142197
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$980.68
each
This analog encoder interface module can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. This module is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar Process ATV900 and Modular, and Altivar Machine ATV340. It has 1 female high density SUB-D 15 connector.
Manuals and Documentation
| Catalog Number | VW3A3422 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Indonesia |
| Made in USA | No |
| Connector Type | 1 female high density SUB-D 15 |
| Input Signal | Data+, Data-, Sin, RefSin, Cos, RefCos, Temp+, Temp- |
| Output Signal | Data+, Data- |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432941364&lang=en-us |
| GTIN | 03606485441269 |
