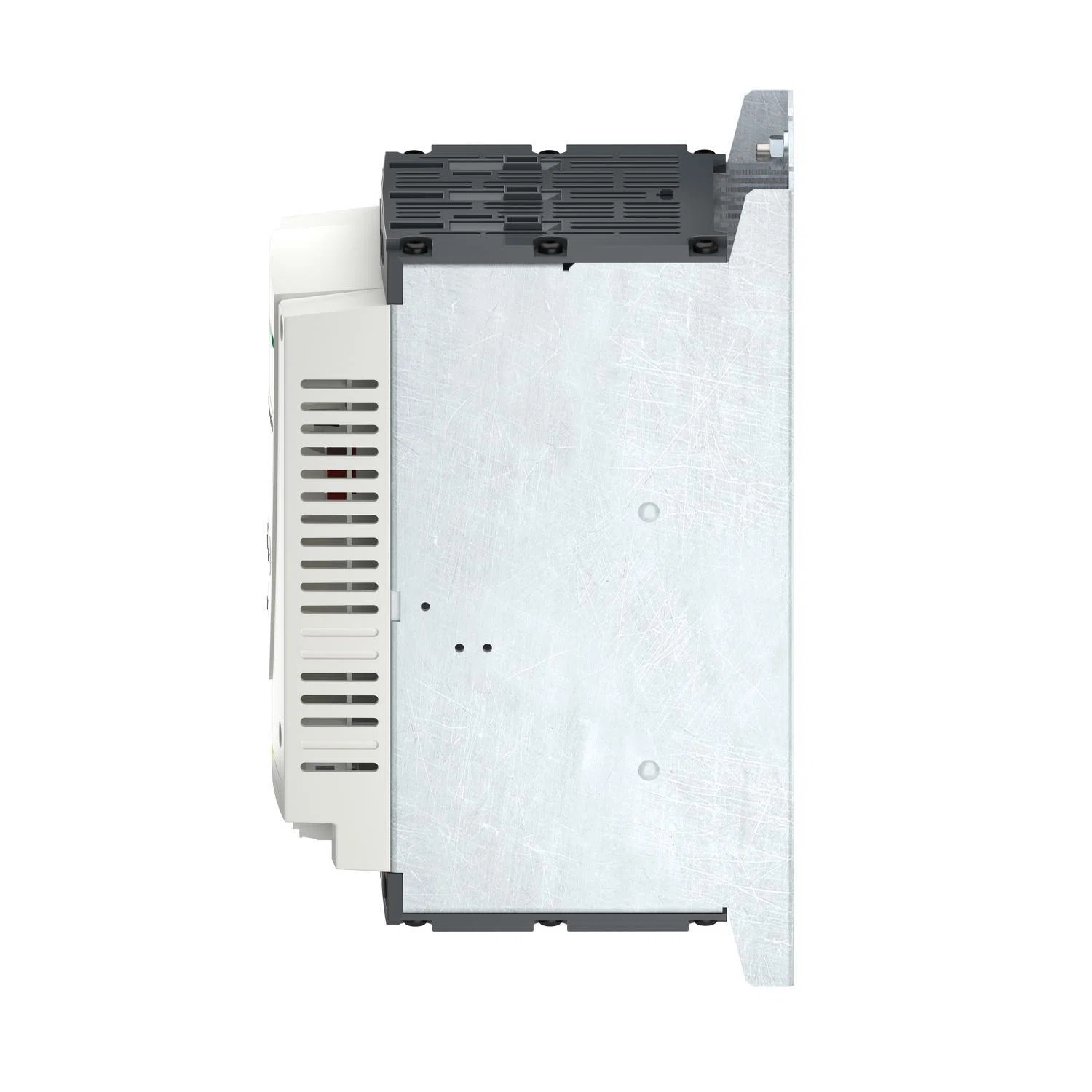

ATS22D47Q, IP20 enclosure
- MFR:
- Schneider Electric
- MFR #:
- ATS22D47Q
- Item #:
- 1139648
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 47A and 230V to 440V, a rated power up to 22kW (400V to 440V in supply line) and up to 45kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Manuals and Documentation
Features
- Provide smooth starting, avoiding mechanical stresses and extending their service life
- Reduce hearing discomfort for operators on the workfloor
- Slim form factor improves versatility
- Less cost to stock spares
- Overcome difficult or high-torque starts
- Precise control over start time gives capability to match your system's inertia and mechanical limits
| Manufacturer Part Number | ATS22D47Q |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| EAN | 3606480167201 |
| Country Of Origin | ID |
| Amperage Rating | 5 A |
| Dimensions | 10.43 in H x 5.12 in W x 6.65 in D |
| Enclosure Type | IP20 |
| Voltage Rating | 230 to 440 V |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | EN/IEC 60947-4-2 | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov | CCCC-tickULGOST | CSA |
| Application | For simple and complex machines such as centrifugal and piston pumps, fans, screw |
| Connection Type | RJ45 |
| Frequency Rating | 50 to 60 Hz |
| Motor Power | 7 to 11,15 to 25 |
| Operating Temperature | 14 to 104,104 to 140 deg F |
| Phase | 3 |
