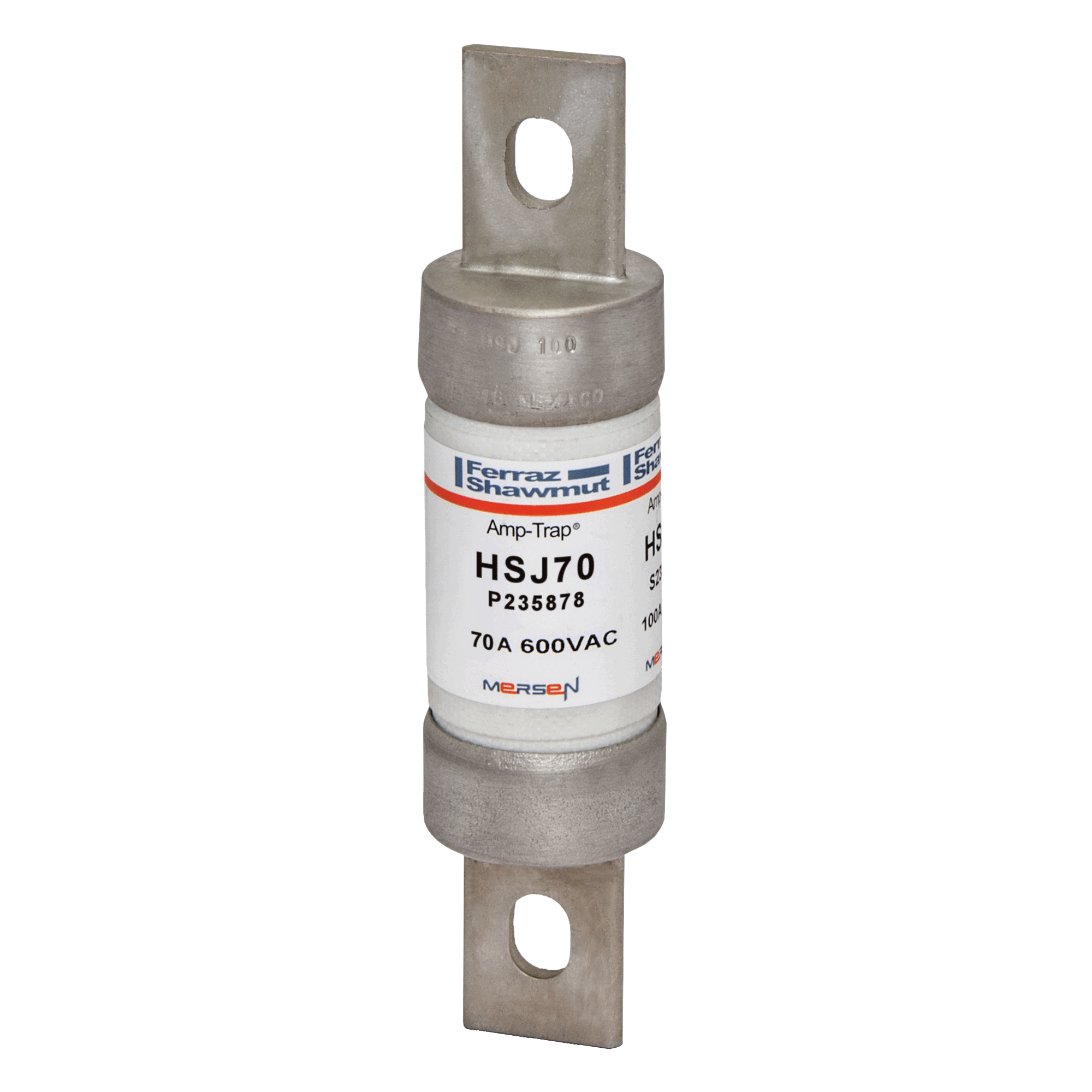

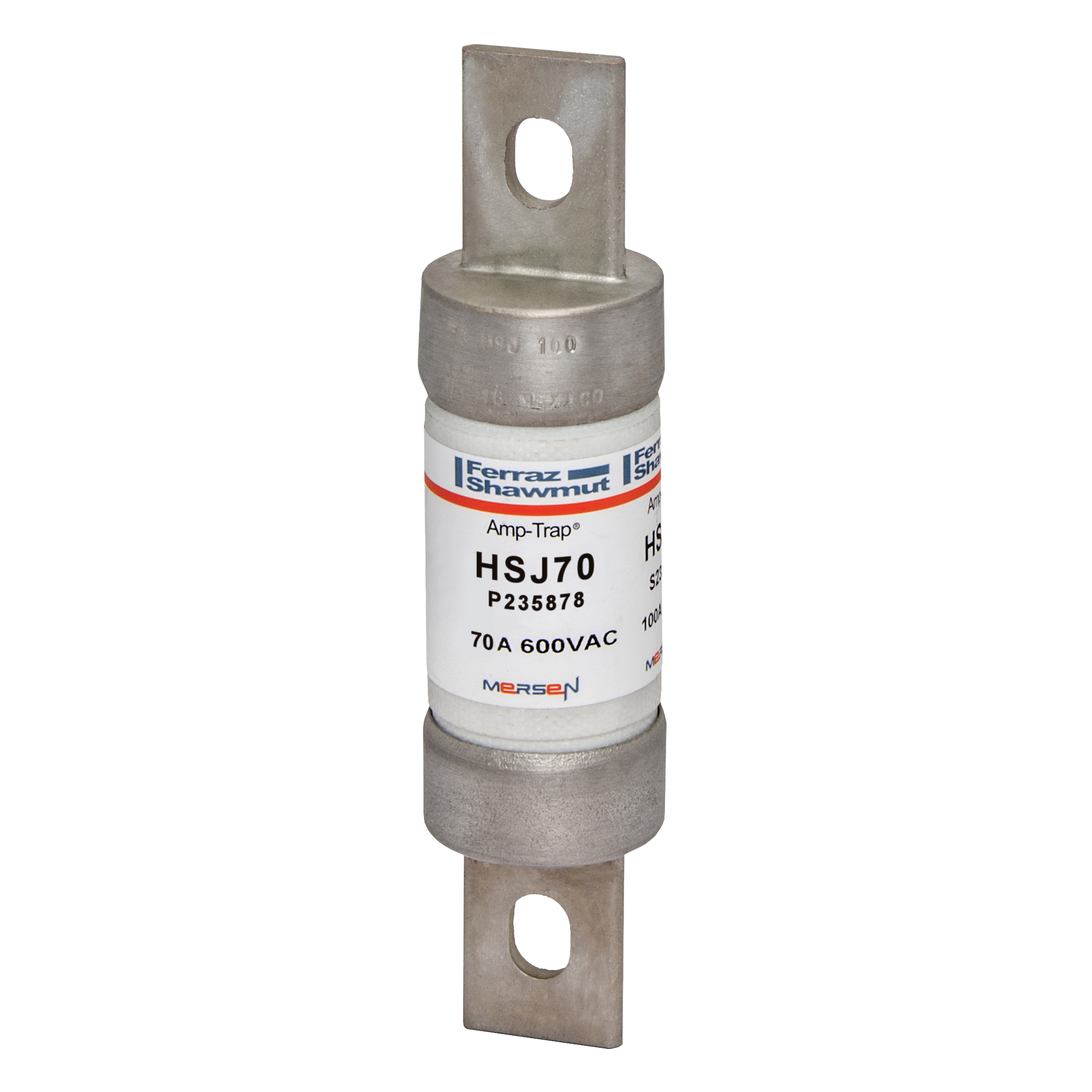

HSJ70 Amp-Trap Current Limiting Low Voltage High Speed Fuse, 70 A, 600 V AC/500 V DC, 200/100 kA, Class J, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- HSJ70
- UPC:
- 782001329563
- Item #:
- 1139003
HSJ70 Amp-Trap Current Limiting Low Voltage High Speed Fuse, 70 A, 600 V AC/500 V DC, 200/100 kA, Class J, Cylindrical Body
- MFR #:
- HSJ70
- UPC:
- 782001329563
- Item #:
- 1139003
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$388.00
each
Fuse HSJ - Class J - High-Speed 600VAC 500VDC 70A Blade Amp-Trap
Manuals and Documentation
| Catalog Number | HSJ70 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 70 |
| Application | Branch circuits Control panels Electronic motor controllers Phase controllers Drives Soft-starters Solid state relays |
| Connection | Blade |
| Interrupt Rating | 200 KA |
| Mounting | Clip |
| Special Features | Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts Low I2t (low thermal energy) Excellent cycling ability for frequent starts/stops without nuisance opening |
| Standard | UL listed to standard 248-8 File E2137 CSA certified to standard C22.2 no. 248.8 DC listed to UL 248 |
| UPC | 782001329563 |
| GTIN | 00782001329563 |
| Item Type | Class J |
| Size | 4.63 x 1.06 |
| Voltage Rating | 600 |
