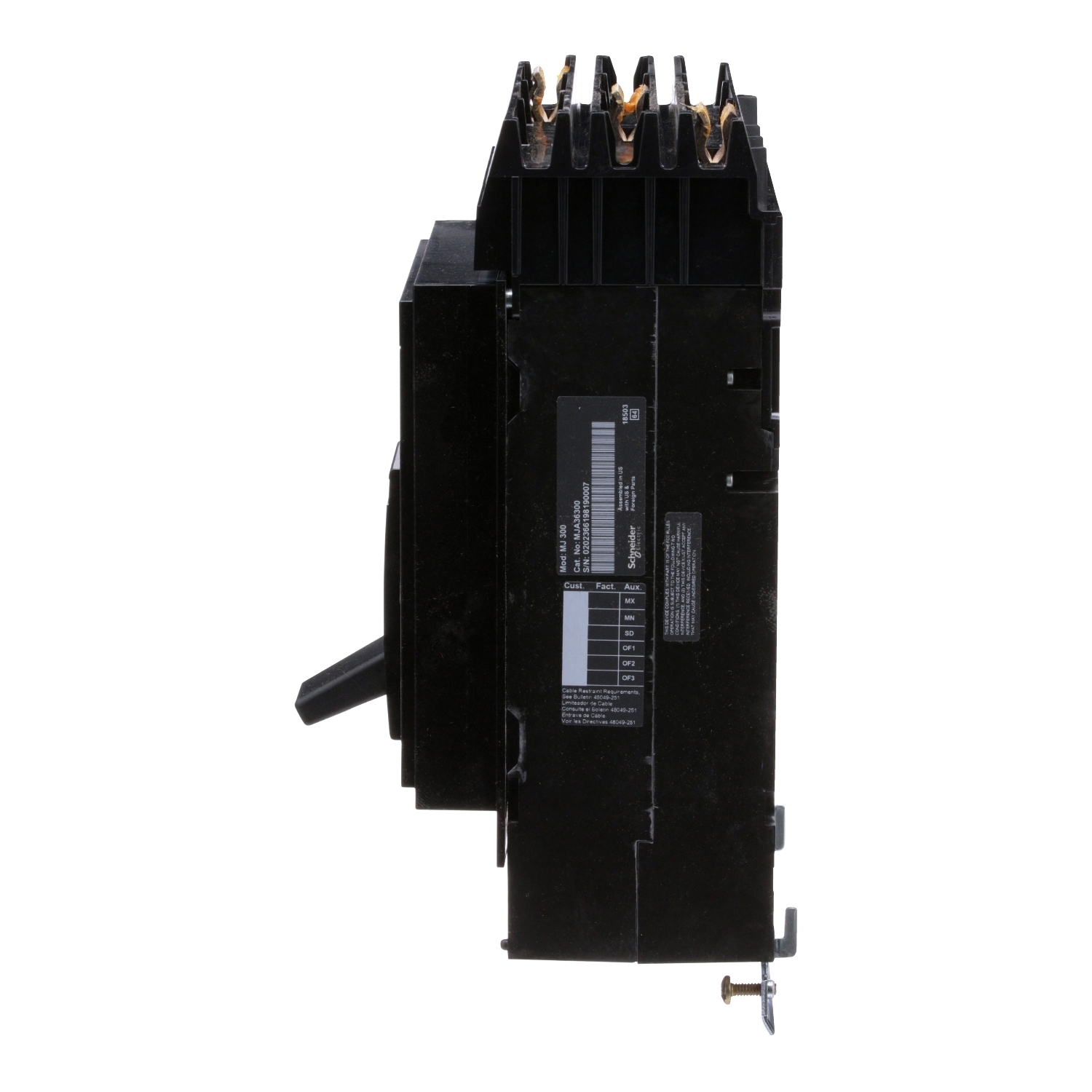

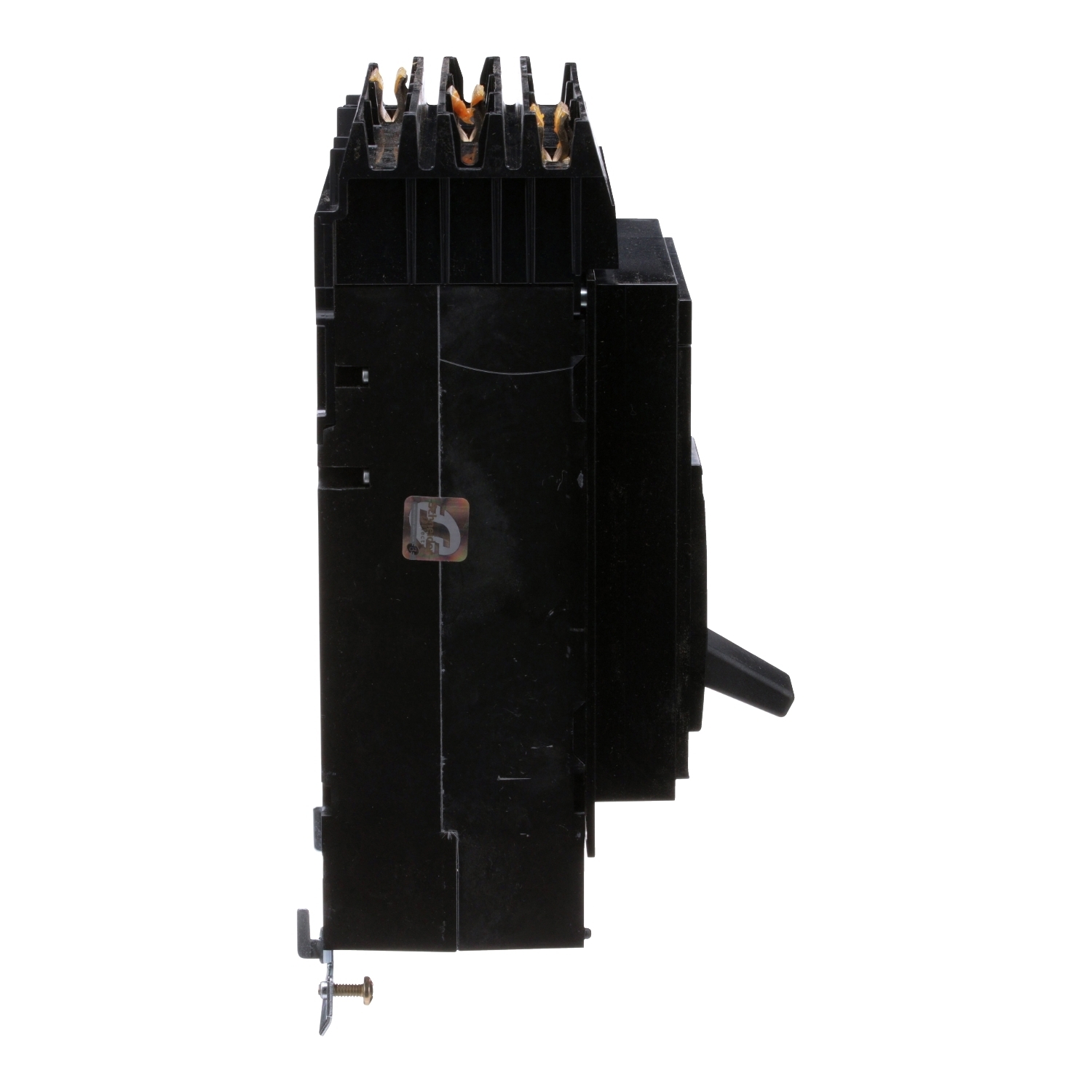

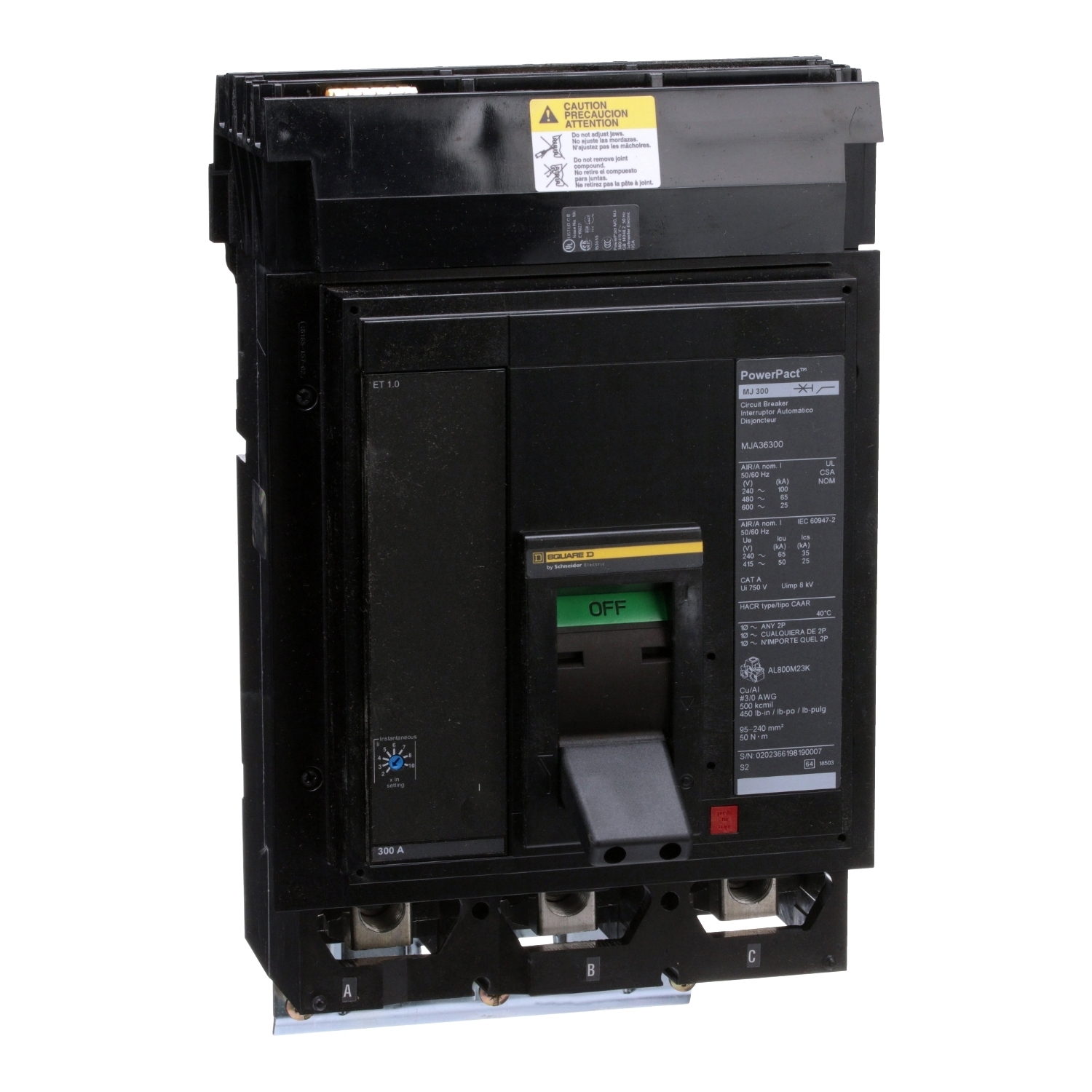

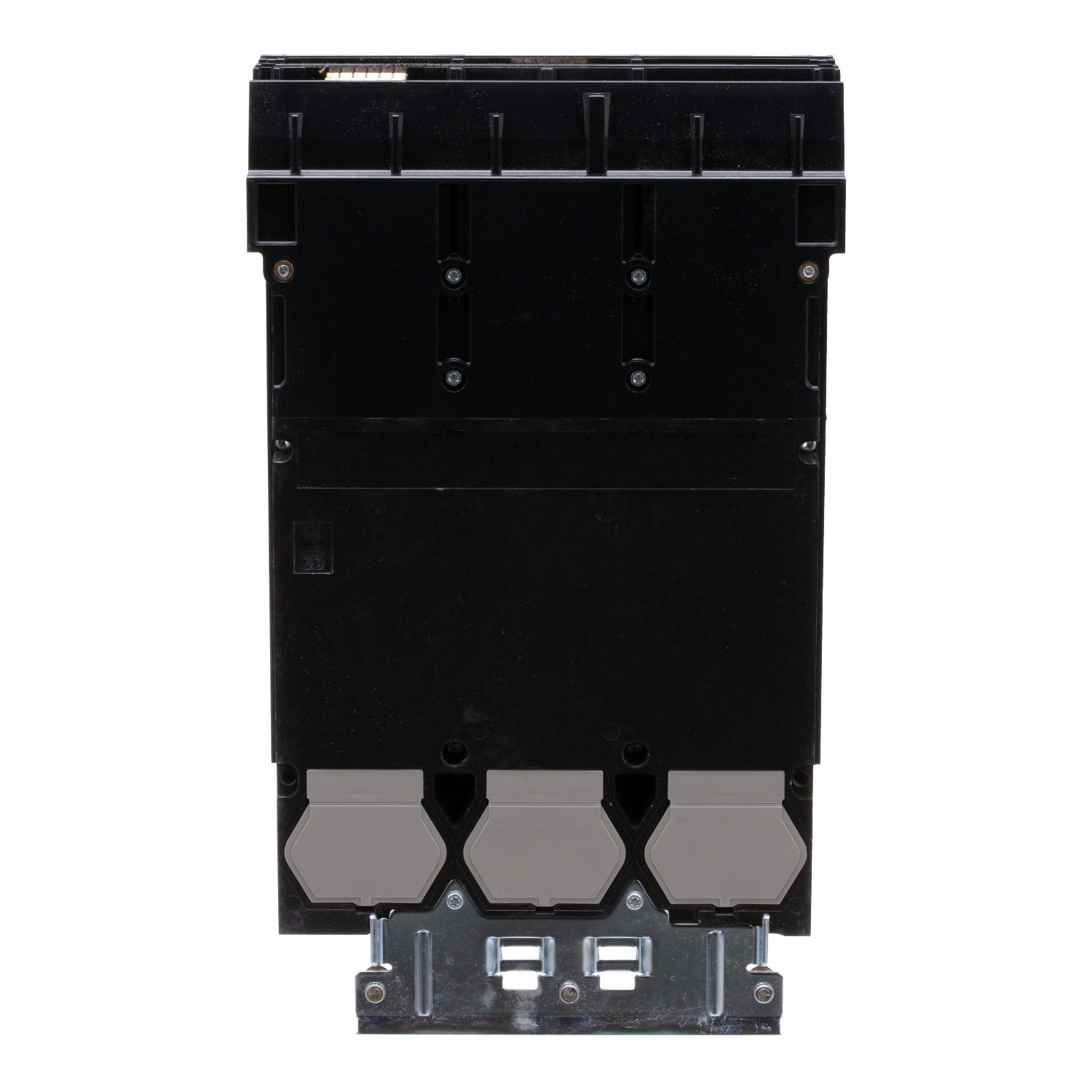

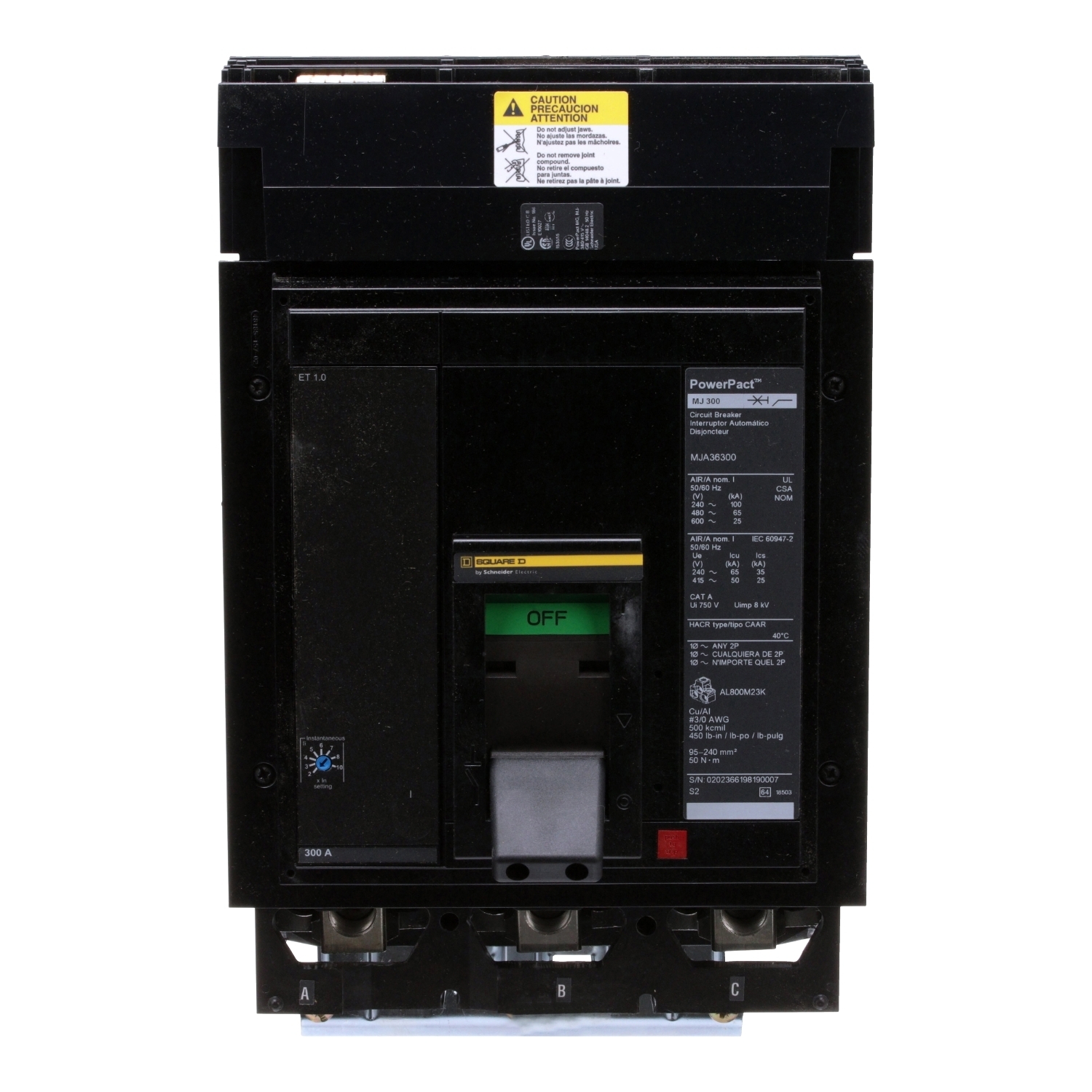

MJA36300 Molded Case Circuit Breaker, 300 Amp, 3 Pole, 600V
MJA36300 Molded Case Circuit Breaker, 300 Amp, 3 Pole, 600V
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacTM-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 300A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals and Documentation
- Catalog Number
- MJA36300
- Manufacturer
- Schneider Electric
- Brand
- SQUARE D
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- United States
- Made in USA
- Yes
- Color
- Black
- UPC
- 785901689560
- GTIN
- 00785901689560
- Width
- 8.27
- Width UOM
- Inch
- Height
- 12.86
- Height UOM
- Inch
- Depth
- 8.05 IN
