Hubbell Wiring Device - Kellems

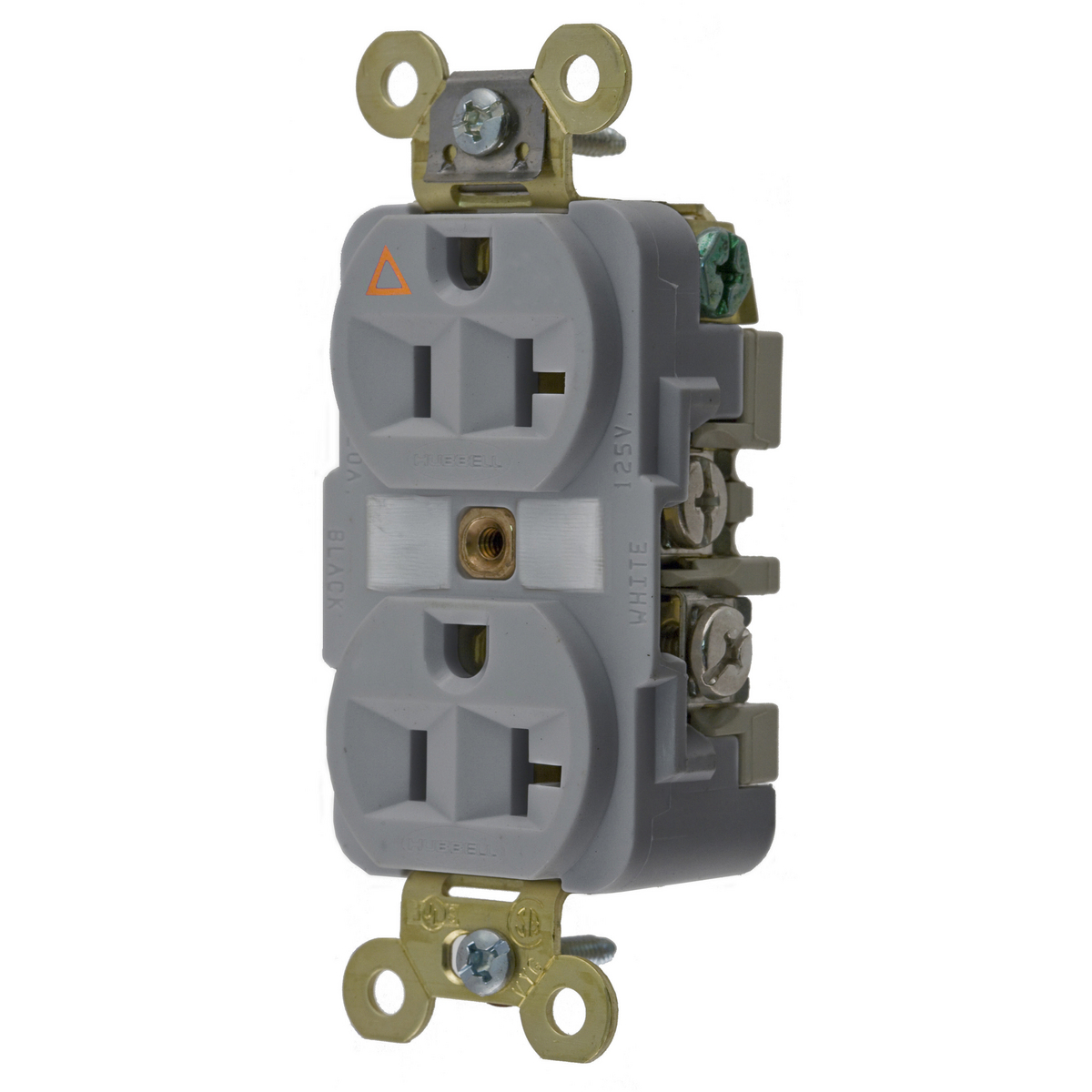

IG5362GY 1-Phase Duplex Extra Heavy Duty Isolated Ground Standard Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Gray

MFR:
Hubbell Wiring Device-Kellems
MFR #:
IG5362GY
UPC:
783585876870
Item #:
113673

Availability

Location Available Qty
Available Available to Order
$59.17 each

In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than everHubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.

Manuals and Documentation
Catalog Number IG5362GY
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Puerto Rico
Made in USA No
Amperage Rating 20
Application Extra Heavy Duty Specification Grade
Color Gray
Connection Back and Side Wired Screw Terminals
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Isolated Ground
Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585876870
GTIN 00783585876870
Item Type Standard Duplex
Size 3.28 in x 1.33 in x 1.05 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 2,500 W
Wire Size #12 AWG to #10 AWG
