BURNDY

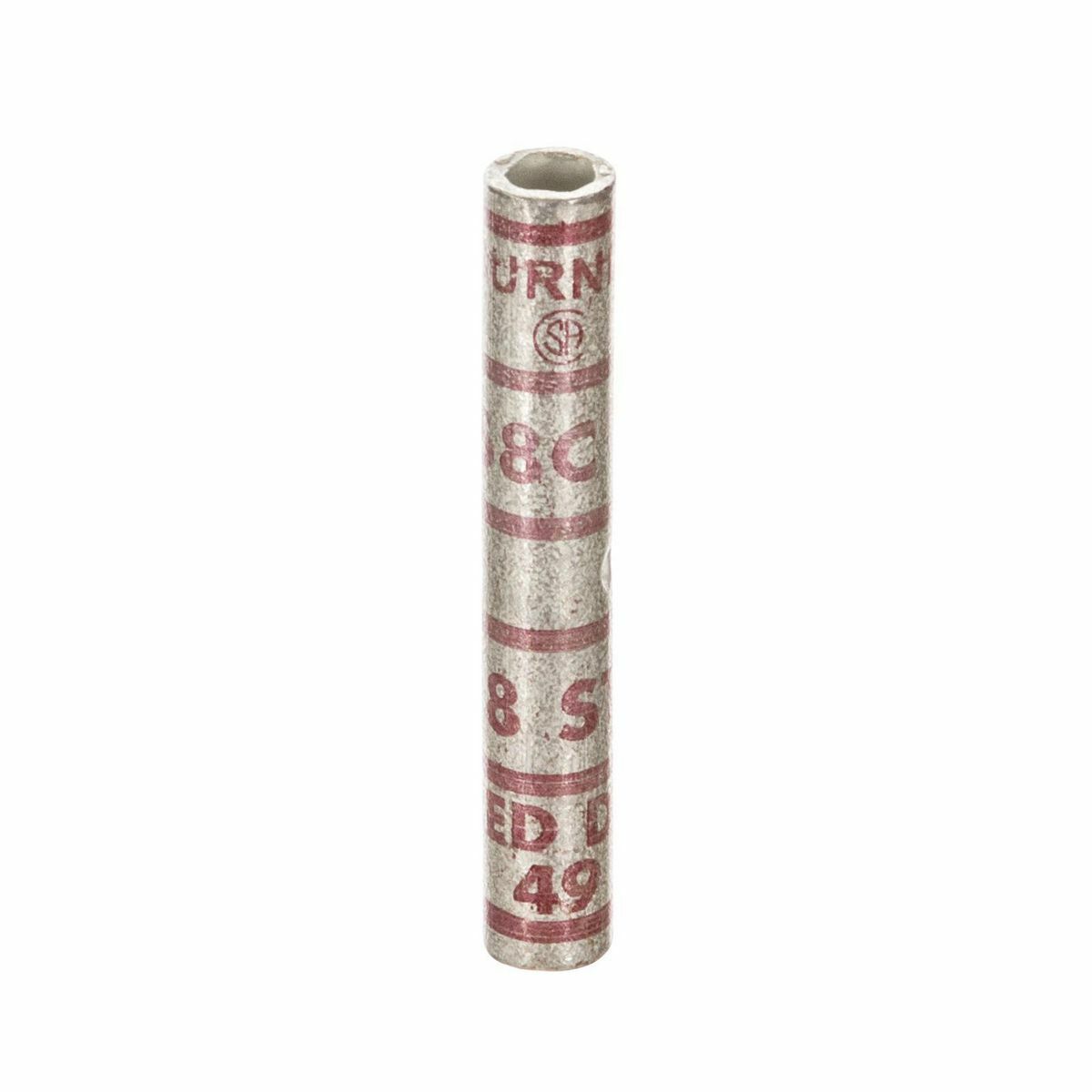

YS8C Type YS Long Barrel Compression Butt Splice, 8 AWG Conductor, 1-3/4 in L, Long Barrel, Copper, Red

MFR:
Burndy, a Hubbell affiliate
MFR #:
YS8C
UPC:
781810507414
Item #:
113663

Availability

Location Available Qty
Available 45 ea
$10.24 each
Manuals and Documentation
Catalog Number YS8C
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Splice
Finish Tin-Plated
Material COPPER
Special Features Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Much Greater Mechanical And Electrical Properties, Color Code: Red, Oil Stop: No, Tapered End: No, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Die Index: 49 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: Y1MRTC Tool, (2), Y2MR Tool, MD7-34R Tool, W8CVT Die, (2), MD6, OUR840 Tool, X8CRT Die, (2), Y35 , Y39, Y750 Tool, U8CRT Die, (2), Y46 Tool, U8CRT Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper, Wire Strip Length: 7/8 IN
Standard UL 486A-486B
UPC 781810507414
GTIN 00781810507414
Item Type YS, Long Barrel
Voltage Rating 35
Cross Reference Products CU8, 54804
