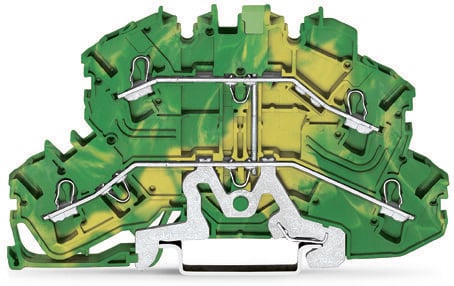

Ground/earthing terminal block with 2-decks/levels (double-deck) + internal commoning - Suitable for Ex e II applications - with "PE" marking - Wago (2002 TOPJOB S series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2 x 2-wires (2 push-in + 2 push-in) (2+2) - 2.5mm2 nominal cross-section - for 0.25mm2...4mm2 / for #22AWG...#12AWG - with Push-in CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (5.2mm width)
- MFR:
- WAGO
- MFR #:
- 2002-2607
- Item #:
- 1131231
Ground/earthing terminal block with 2-decks/levels (double-deck) + internal commoning - Suitable for Ex e II applications - with "PE" marking - Wago (2002 TOPJOB S series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2 x 2-wires (2 push-in + 2 push-in) (2+2) - 2.5mm2 nominal cross-section - for 0.25mm2...4mm2 / for #22AWG...#12AWG - with Push-in CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (5.2mm width)
- MFR #:
- 2002-2607
- Item #:
- 1131231
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$10.31
each
| Catalog Number | 2002-2607 |
| Manufacturer | WAGO |
| Brand | WAGO |
| Country of Origin | Germany |
| Actuator | Operating tool |
| Color | green-yellow |
| Conductor Material | Copper |
| Conductor Range | 12-22 AWG Conductor Range |
| Connection | Terminals (Cage-clamp) |
| Material | Polyamide (PA66) |
| Mounting | Din Rail |
| GTIN | 4050821272021 |
| Item Type | Terminal |
| Dimensions | H93mm x W5.2mm x D51.7mm |
| Width | 0.205 |
| Width UOM | Inch |
| Height | 93 mm / 3.661 inches |
| Height UOM | Inch |
| Weight | 17.342 |
| Weight UOM | Grams |
| Nominal Cross Section | 2.5 mm² |
