XCRT115 OsiSense XC Special Format Fixed Limit Switch, 240 V AC, 10 A, Spring Return Roller With Lever Actuator, 2CO Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCRT115
- Item #:
- 1130588
XCRT115 OsiSense XC Special Format Fixed Limit Switch, 240 V AC, 10 A, Spring Return Roller With Lever Actuator, 2CO Contact, 2 Poles
- MFR #:
- XCRT115
- Item #:
- 1130588
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$980.10
each

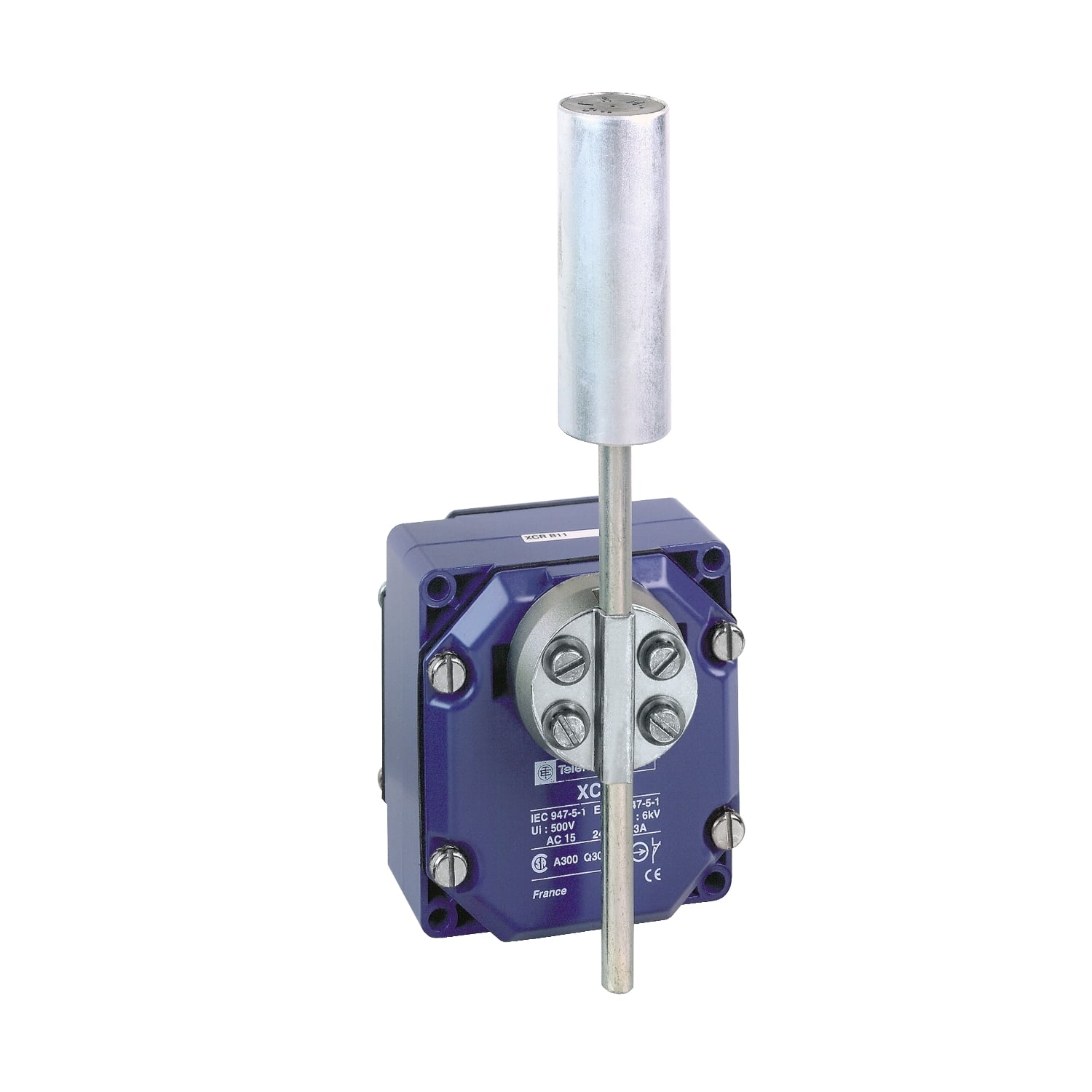

This industrial blue metal roller lever limit switch is part of XC special range, an offer of limit switches for conveyor belt shift monitoring applications. It features a head with zinc plated steel lever for rotary movement operators, spring return to off position. And a contact block with 2 single-pole CO snap action. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Manuals and Documentation
| Catalog Number | XCRT115 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Snap action |
| Actuator | Spring return roller zinc plated steel with lever;Lateral approach, 2 directions |
| Application | For conveyor belt shift monitoring |
| Connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Contact Configuration | 2 C/O |
| Mounting | By The Body |
| Number of Poles | 2 |
| Standard | 30 GN 18 MS IEC 60068-2-27,9 GN 10-500 HZ)IEC 60068-2-6,EN 60947-5-1-NF C 79-130-CSA C22.2 NO 14-IEC 60947-5-1-IEC 60204-1-EN 60204-1,IP65 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858574&lang=en-us |
| GTIN | 03389110652499 |
| Item Type | Limit switch |
| Size | 75 MM,85 MM,95-95 MM |
| Operating Temperature | -25-70 A Degrees C |
