SCHNEIDER ELECTRIC

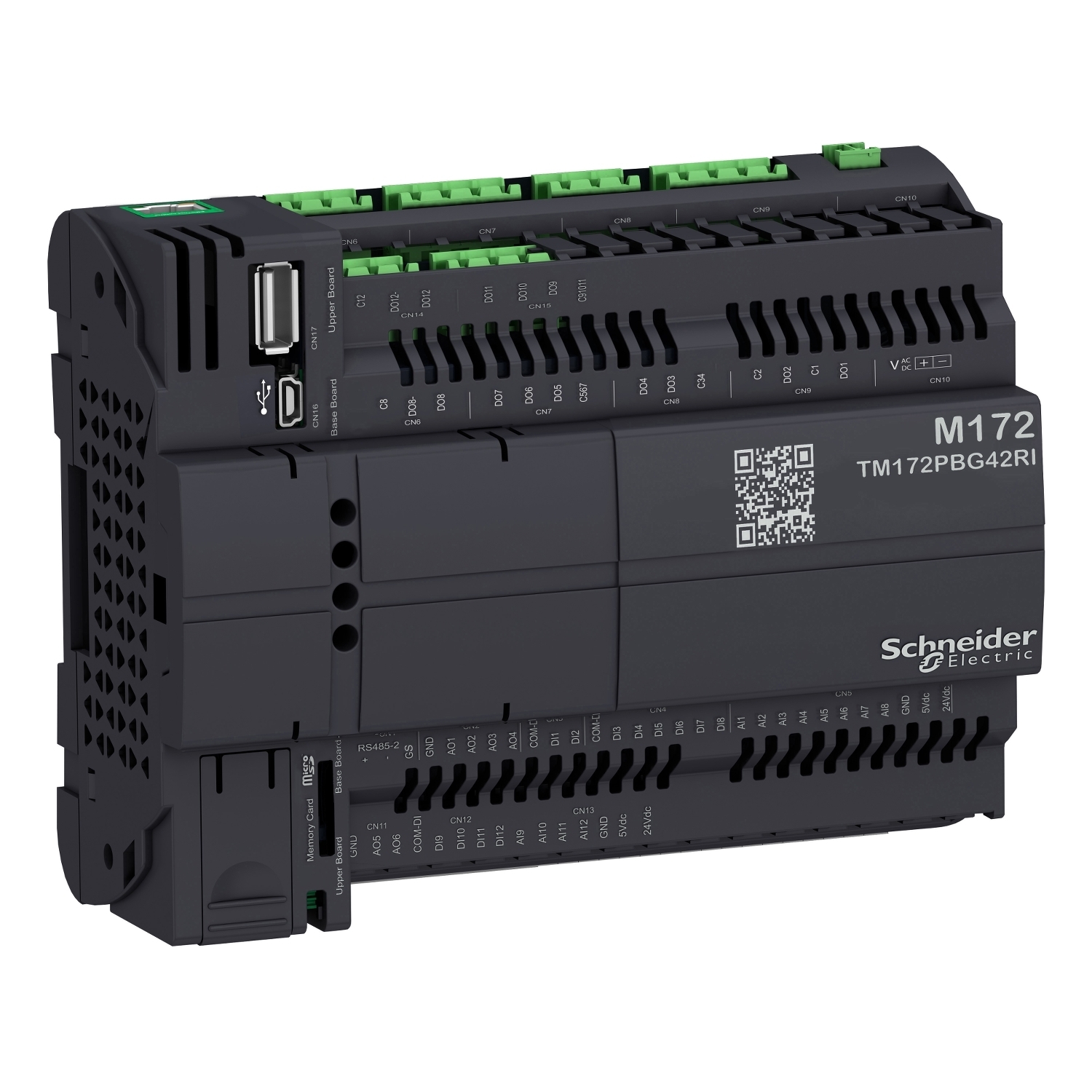

TM172PBG42RI M Series, 24 V AC, 20 to 38 V DC

MFR:
Schneider Electric
MFR #:
TM172PBG42RI
Item #:
1129748

Availability

Location Available Qty
Available 6 ea
$806.55 each

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 12 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 12 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, 0V to 10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Manuals and Documentation
Catalog Number TM172PBG42RI
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin Italy
Made in USA No
Input 24 V AC/DC;10; impedance 0...1500 hOhm 1 hOhm 10 kOhm; impedance 0...300 daOhm 1 daOhm 2 kOhm;NTC 103AT-2 Beta 3435 temperature probe - 50...110 Degrees C 0.1 Degrees C 10 kOhm; voltage 0...10 V 1 digit > 10 kOhm;NTC NK103 Beta 3977 temperature probe - 40...137 Degrees C 0.1 Degrees C 10 kOhm extended); current 0...20 mA/4...20 mA 1 digit < 150 Ohm;PTC temperature probe - 55...150 Degrees C 0.1 Degrees C 2 kOhm; voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric);Pt 1000 temperature probe - 200...850 Degrees C 0.1 Degrees C 2 kOhm; direct input > 10 kOhm;Sink or source (positive/negative)
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=471959611&lang=en-us
GTIN 03606489729516
