SCHNEIDER ELECTRIC

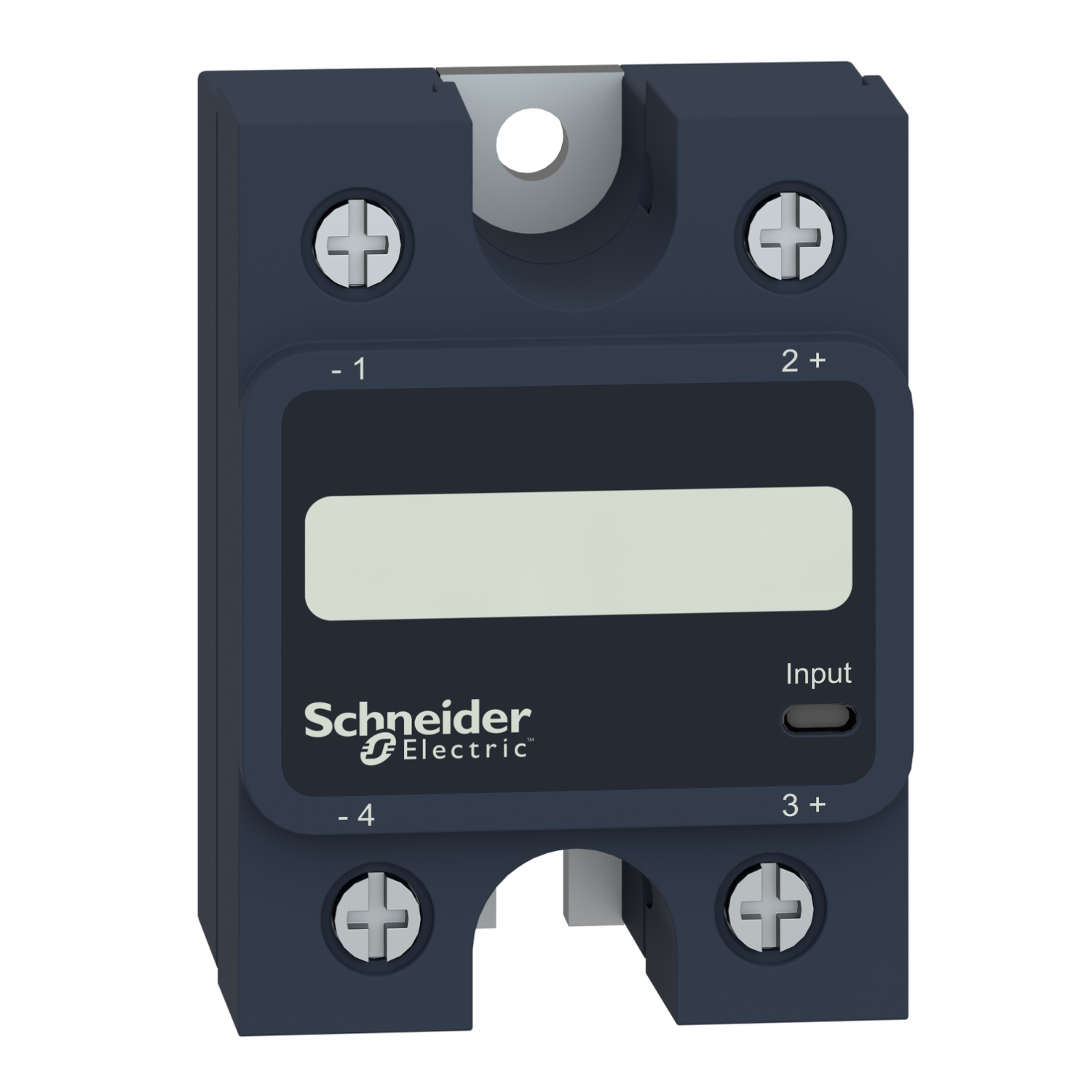

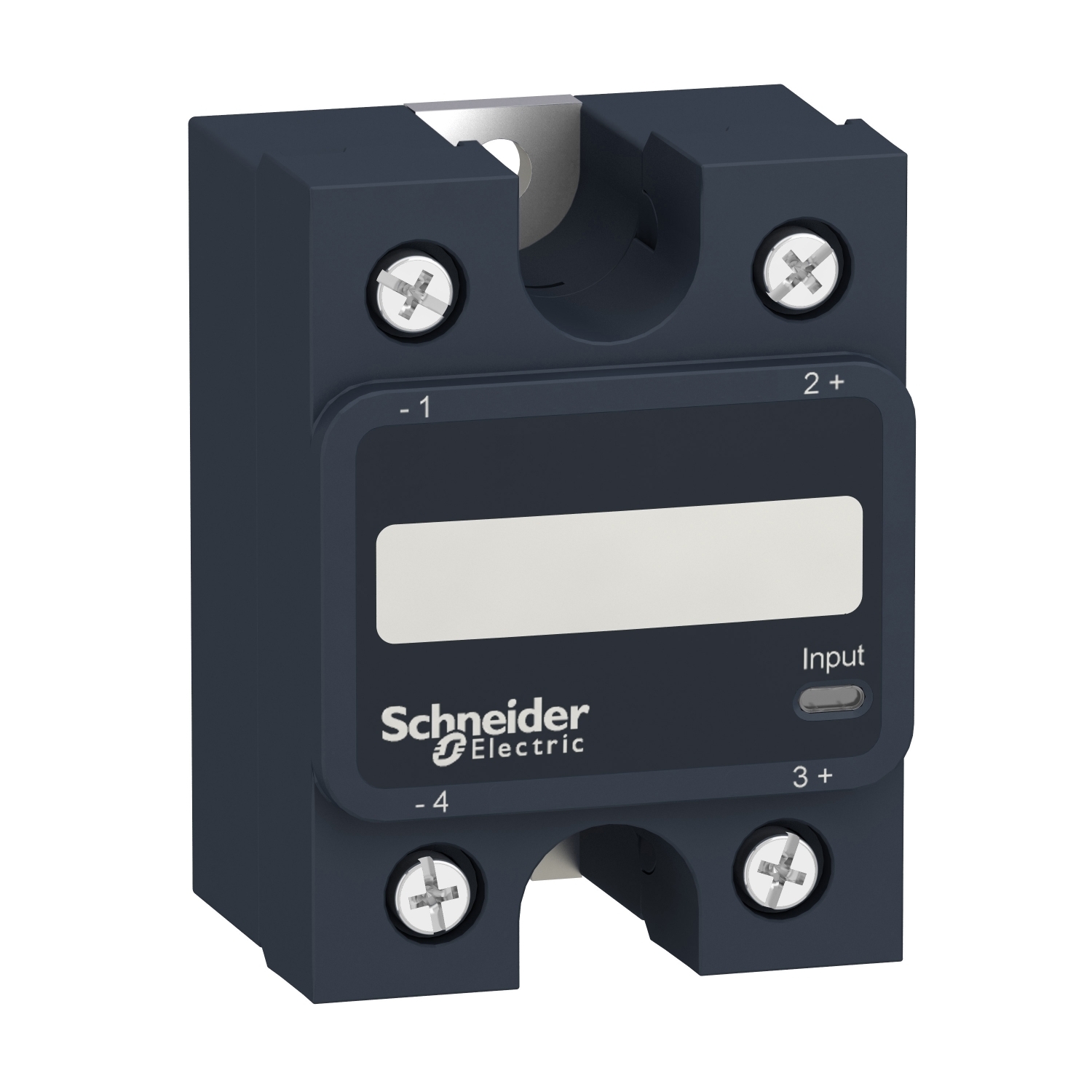

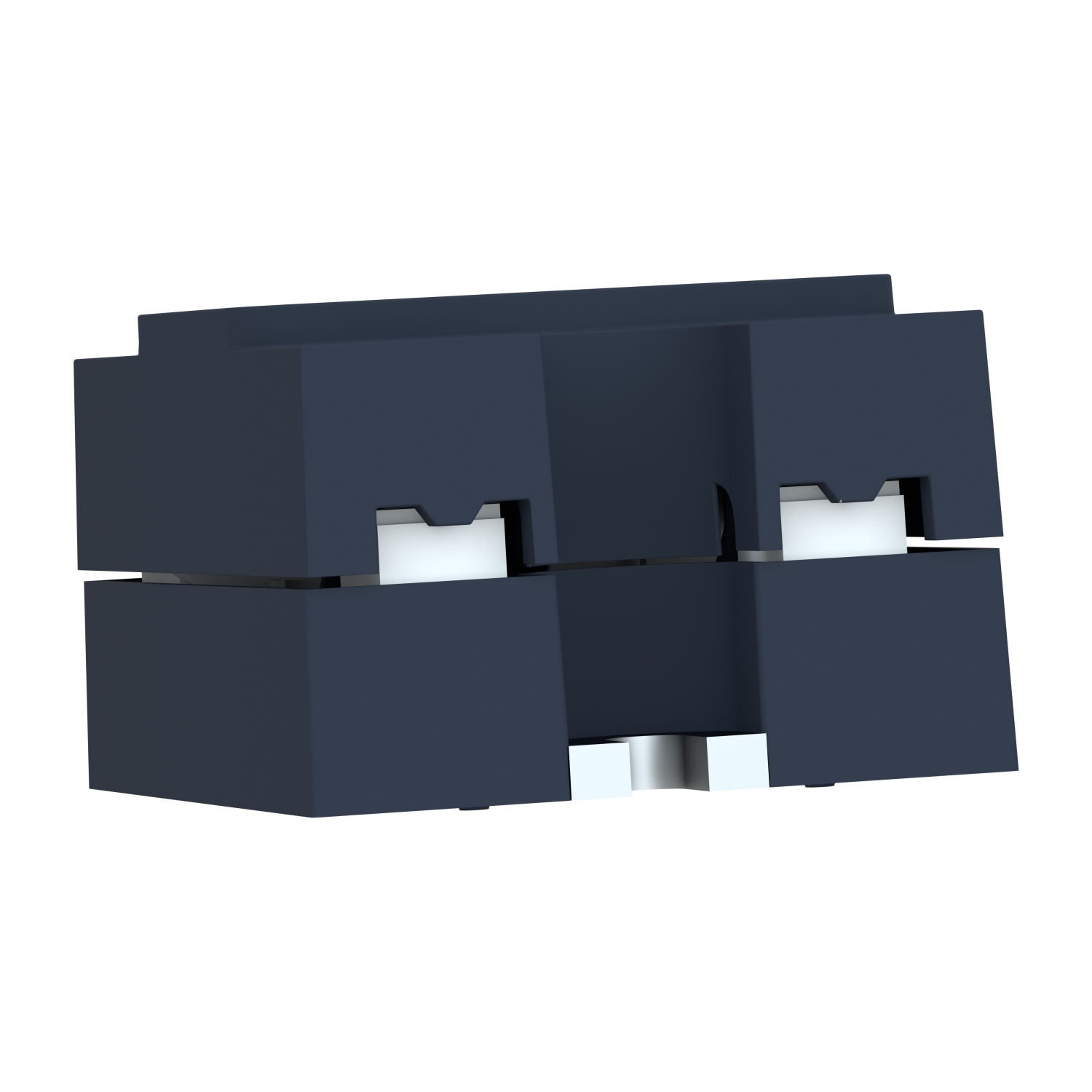

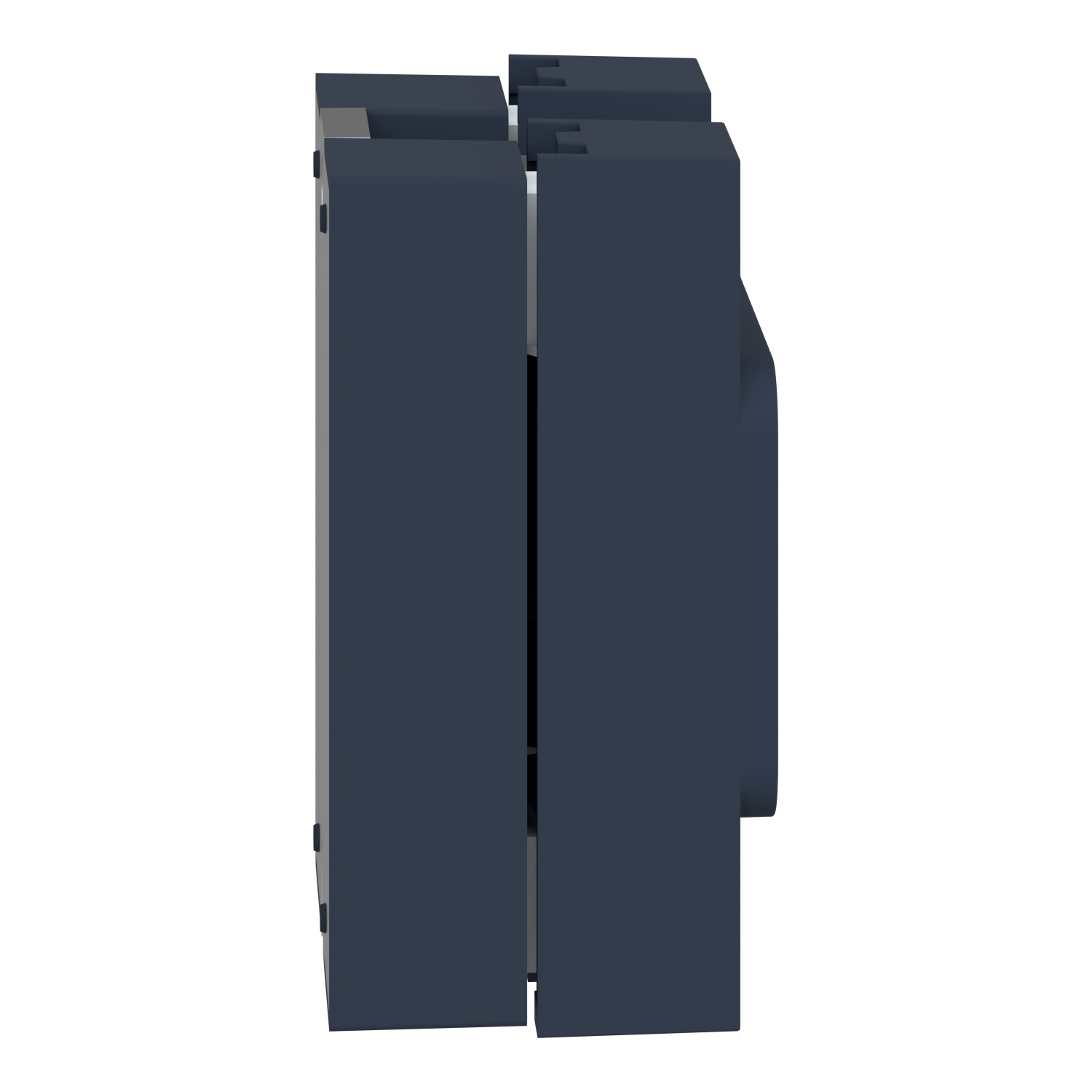

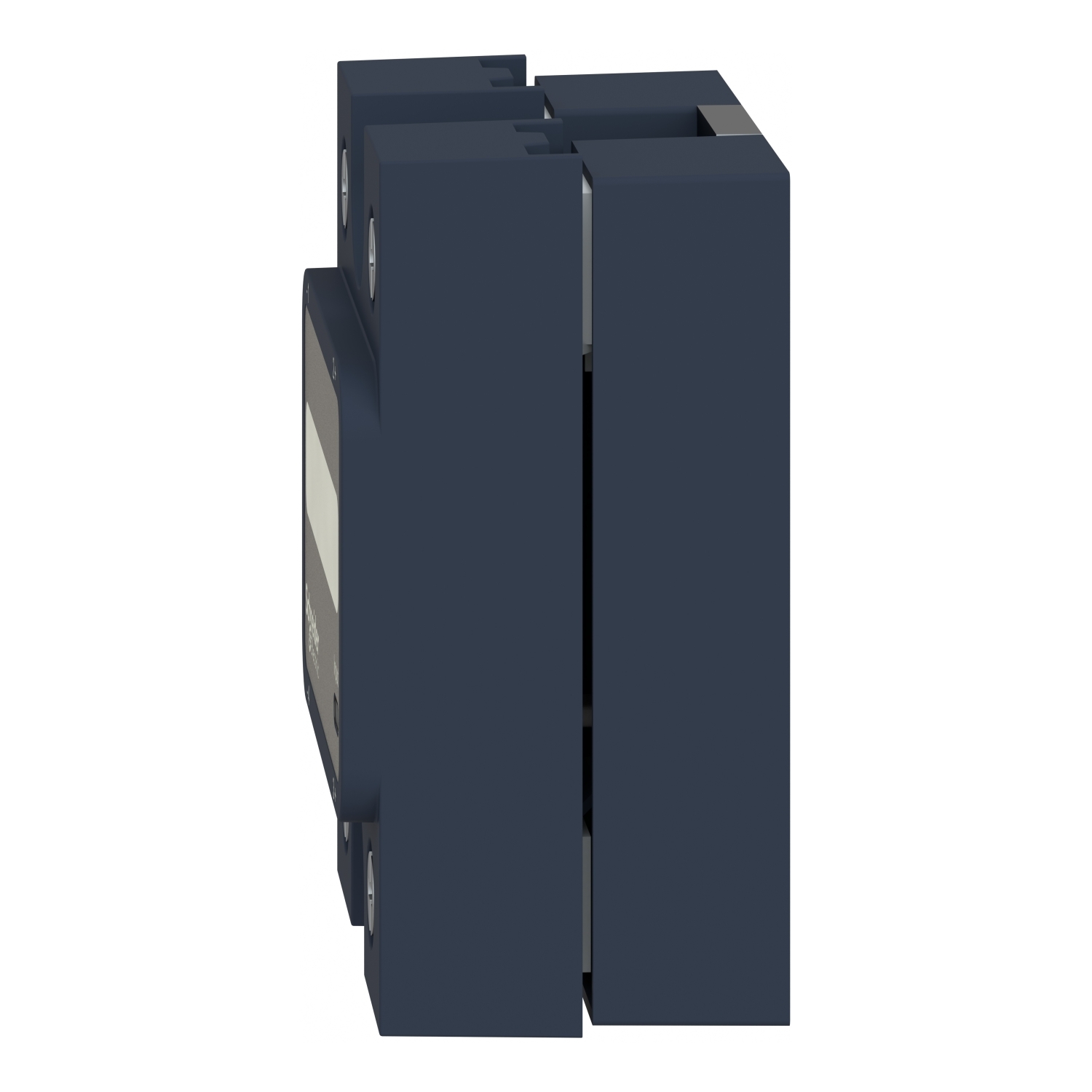

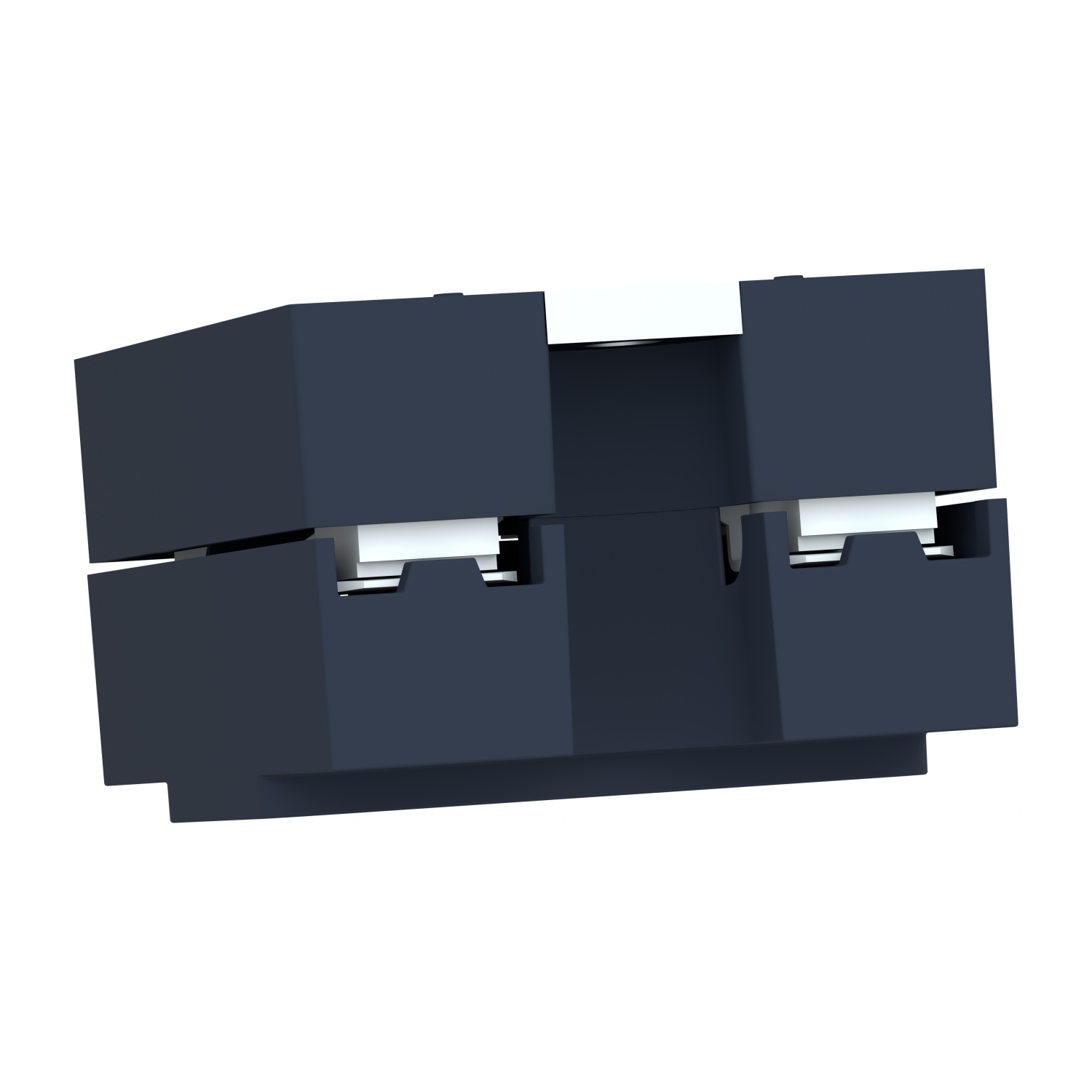

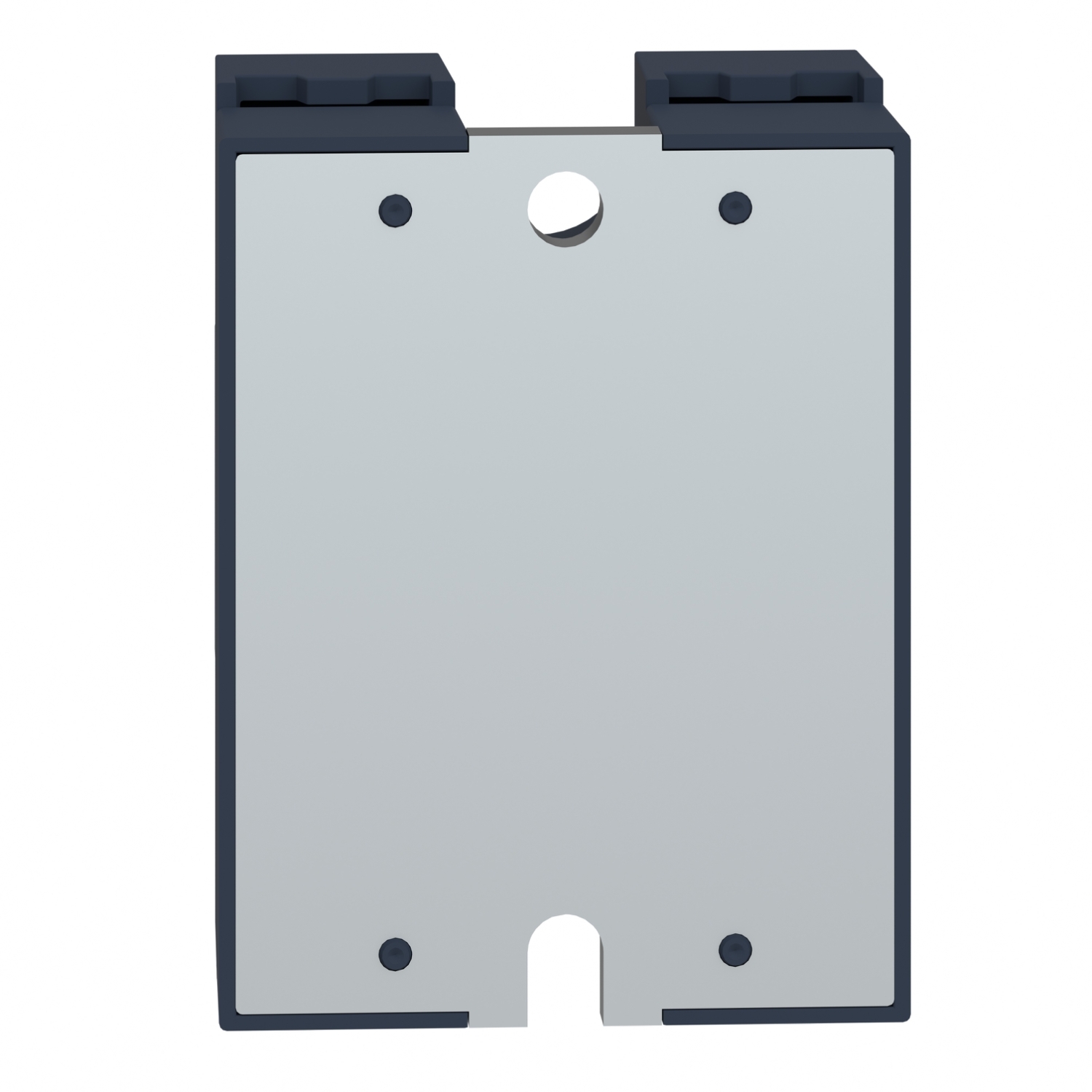

SSP1A150BD Zelio 1-Phase Zero Voltage Switching Solid State Relay, 50 A, 1NO 1 Form A Contact, 3 to 32 V DC V Coil

MFR:
Schneider Electric
MFR #:
SSP1A150BD
Item #:
1128789

Availability

Location Available Qty
Available Available to Order
$49.33 each

SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs. Its rated current is 50A, is controlled withA 3V to 32V DC circuit, has a rated load voltage of 24V to 300V AC output. It also has a test button for easy debugging, testing and commissioning. 0 It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. 0

Manuals and Documentation
Catalog Number SSP1A150BD
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin Mexico
Made in USA No
Connection Screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input;screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output;screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input;screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output;forked type tag connectors 9.2 x 4 mm input;ring lugs 9.2 x 4 mm input;forked type tag connectors 11.7 x 4.5 mm output;ring lugs 11.7 x 4.5 mm output
Mounting Panel Mount
Phase 1
Response Time 0.5 cycle (turn-on);0.5 cycle (turn-off)
Special Features LED, green input
Standard IP20
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423419628&lang=en-us
GTIN 03606485441863
Item Type Panel mount relay
